Smarter Protection for Your PVS‑14

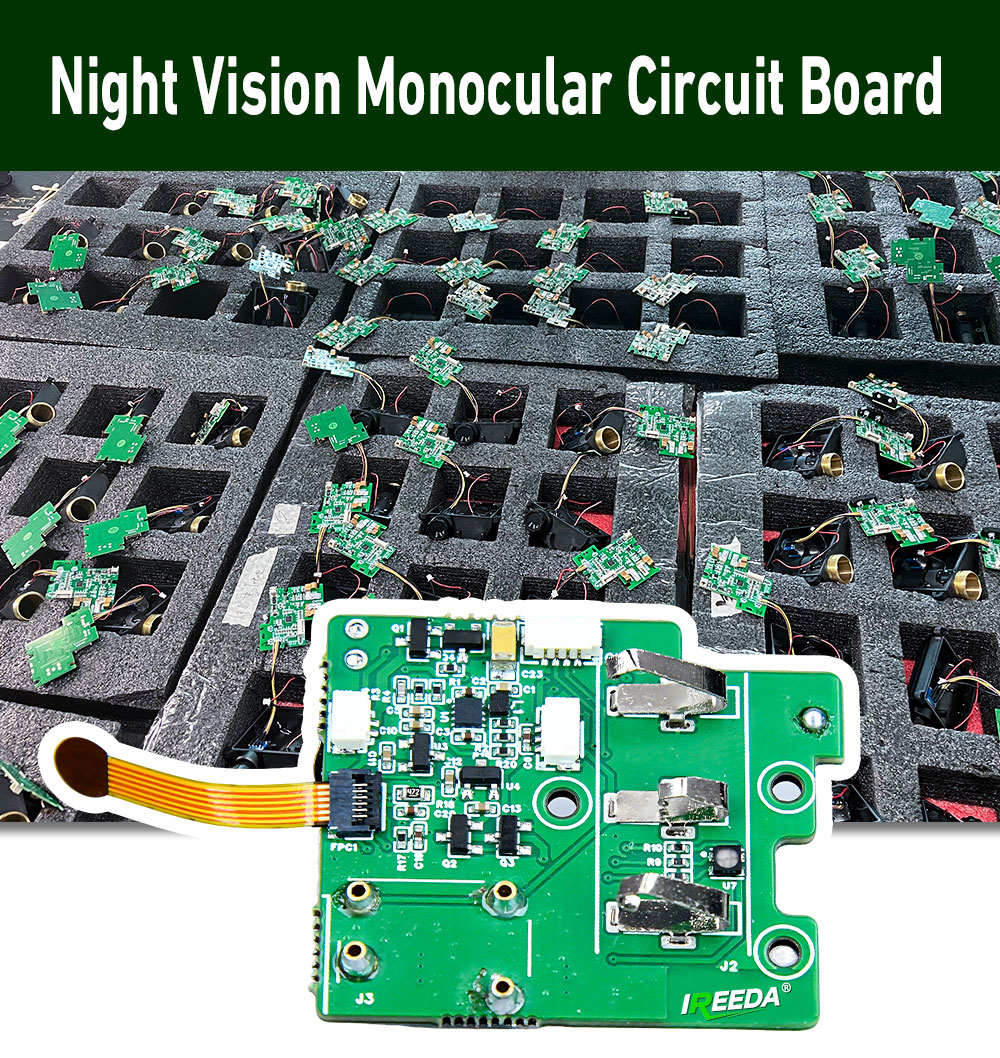

PVS14 night vision monocular circuit board produced by Shaanxi Ireeda Protective Technology Co.,Ltd.
Ireeda PVS14 core circuit board serves as the intelligent control hub for PVS14 night vision monocular. It boasts ultra-wide compatibility, seamlessly supporting four mainstream image intensifier tube interfaces: two-pin, three-pin, three-wire and pigtail tubes, eliminating matching barriers for various image tube configurations and meeting diverse assembly and upgrade demands.
Why Choose IREEDA PVS-14 Circuit Board?
1. Four Types Tube Compatibility
No need to stock multiple circuit boards for different image intensifier tubes.

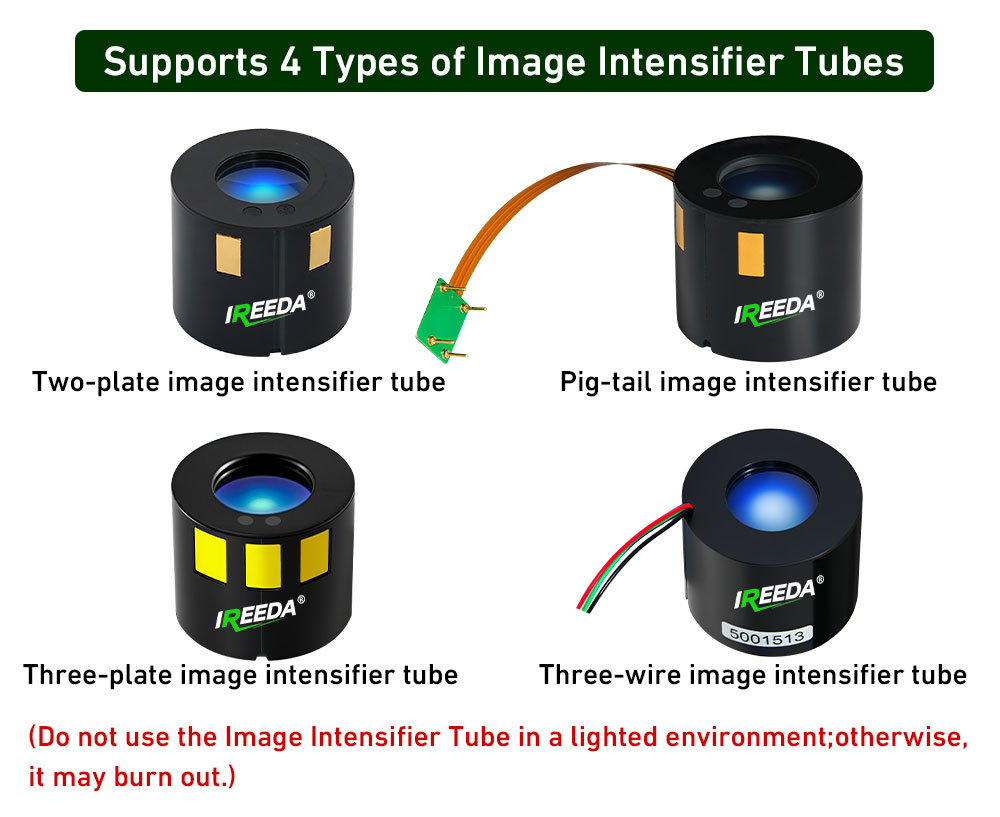

The IREEDA PVS-14 circuit board supports:
• Two-pin tubes
• Three-pin tubes
• Three-wire tubes
• Pigtail tubes
This universal design significantly reduces procurement costs and eliminates compatibility concerns when upgrading or replacing image intensifier tubes.
2. Protect Your Valuable Image Intensifier Tube
Image intensifier tubes are the most expensive component in a night vision device.
The IREEDA PVS14 circuit board integrates multiple protection mechanisms to help prevent accidental damage caused by strong light exposure, improper operation, or unnecessary power consumption.
3. Lower Power Consumption
Efficient power management is critical for professional users who depend on their equipment during extended missions and outdoor operations.
The IREEDA PVS14 circuit board utilizes an optimized low-power design combined with intelligent standby functions to significantly reduce energy consumption when the device is not actively in use. Features such as flip-up standby and motion-detection standby help prevent unnecessary battery drain while maintaining rapid readiness.
The result is longer battery life, extended operating time in the field and reduced battery replacement frequency, giving users greater confidence during critical operations.
Beyond universal compatibility and advanced protection features, the Ireeda PVS14 circuit board integrates a series of intelligent functions designed to improve operational efficiency, reduce power consumption and enhance user experience.
Ireeda PVS14 circuit board main functions
1. Flip-up standby automatically
Turn on: This function is enabled by default when the switch is set to ON, IR, or ATUO.
Suitable for helmet mounting, when the device is powered on:
l Automatically standby when flip-up over the head.
l Automatically working when flip-down for use again.
2. Standby in state of rest
When the device is in ON, IR, or AUTO mode, it automatically detects its posture. If it remains state of rest more than 100 seconds, it will enter standby to save power and protect the image intensifier tube. The device will automatically working when motion is detected again.
3. IR illuminator
Provides supplemental infrared illumination for operation in extremely dark environments.
4. AUTO IR illuminator
The IR illuminator turns on automatically when the environment brightness is below 1 lux (red status light stays on steadily).
The IR illuminator turns off automatically when the environment brightness is approximately above 10 lux (red status light turns off).
5. Manual gain control
Users can adjust image brightness through the gain control knob to achieve optimal viewing performance under different lighting conditions.
6. Strong Light Protection
When the strong light protection function is enabled:
The image intensifier tube power supply will turn off automatically if the environment brightness exceeds 120 lux for 1 consecutive minute.
The image intensifier tube power supply will turn off automatically immediately if the environment brightness reaches 200 lux for 1 consecutive second.
This significantly reduces the risk of permanent tube damage.
7. Low battery indicator
For AA battery: When the voltage drops below 1.2V, the yellow status light flashes every 10 seconds as a low-battery alert.
For CR123 battery: When the voltage drops below 2.7V, the yellow status light flashes every 10 seconds as a low-battery alert.
Users receive early warning before battery depletion affects operation.
8. Low Battery consumption
Optimized circuit design minimizes power usage and maximizes operational runtime.
Looking for a reliable supplier of PVS-14 circuit boards, night vision devices, thermal imaging systems, or customized electro-optical solutions?
Contact IREEDA immediately. With extensive experience in night vision and thermal imaging technologies, our engineering team provides professional technical support, OEM/ODM services, and tailored solutions designed to meet your specific project requirements.
Whether you are developing a new product, upgrading an existing system, or seeking a dependable manufacturing partner, IREEDA is ready to support your success from concept to production.
