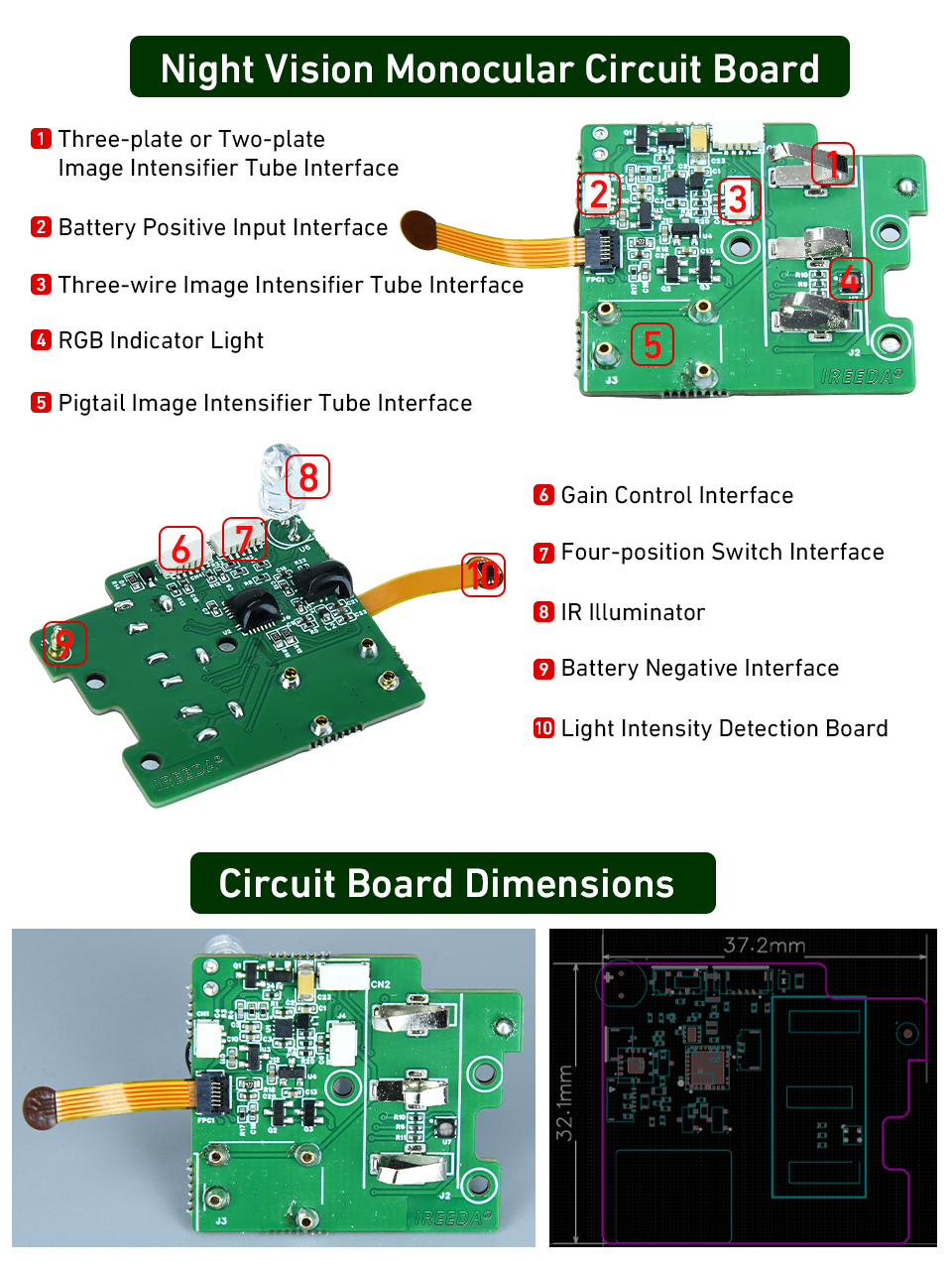

1 Label Diagram of the 14 Circuit Board

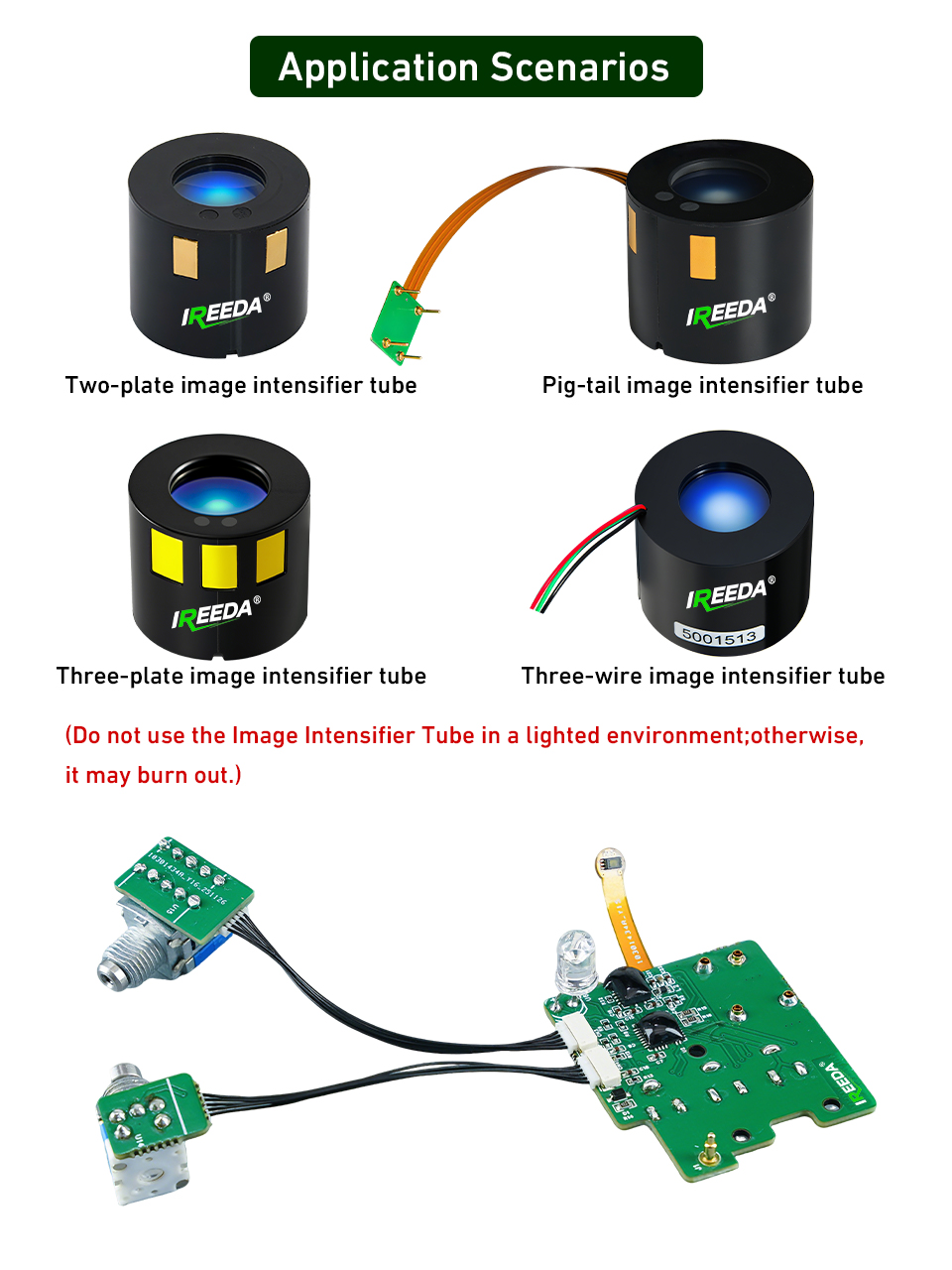

2 Supports 4 Types of Image Intensifier Tubes
- Two-plate image intensifier tube
- Three-plate image intensifier tube
- Three-wire image intensifier tube
- Pig-tail image intensifier tube
3 Function Introduction
- Flipped Up
- Stand-by
- IR Illuminator
- AUTO IR Illuminator
- Manual Gain Control
- Strong Brightness Protection
- Battery Level Detection
- Reverse Battery Protection
Battery Type
Total Power Consumption
Working Time
AA (1.5V-2000mAh)
57mW
45h
AA Rechargeable
60mW
34h
CR123 (3V-1400mAh)
48mW
76h
CR123 Rechargeable
46.8mW
45h
AA (1.5V-2000mAh)
72mW
35h
AA Rechargeable
73.2mW
28h
CR123 (3V-1400mAh)
60mW
60h
CR123 Rechargeable
57.6mW
38h
