Detailed Specification
|
Serial No. |
Overall Dimension |
Base Material |
|

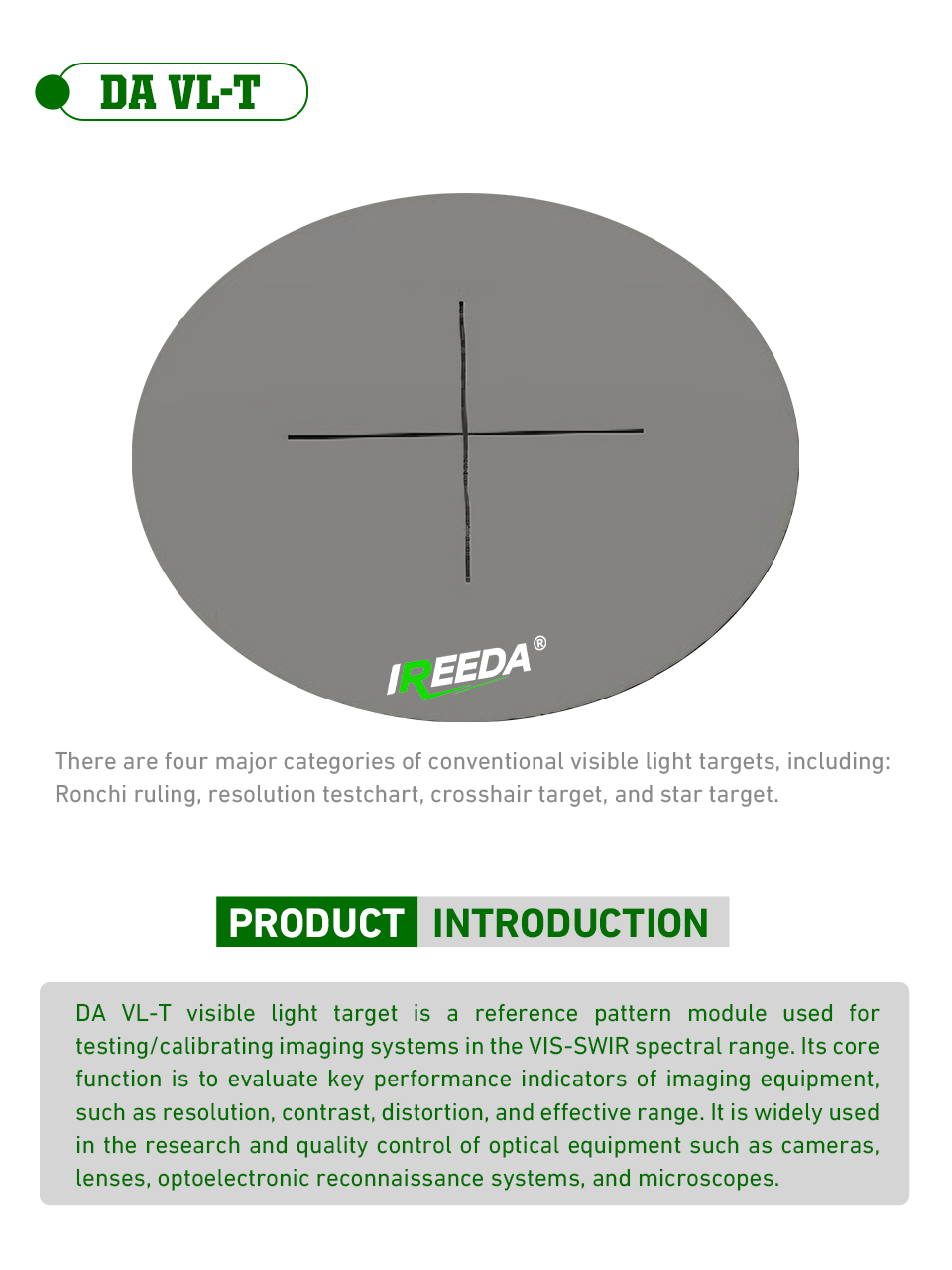

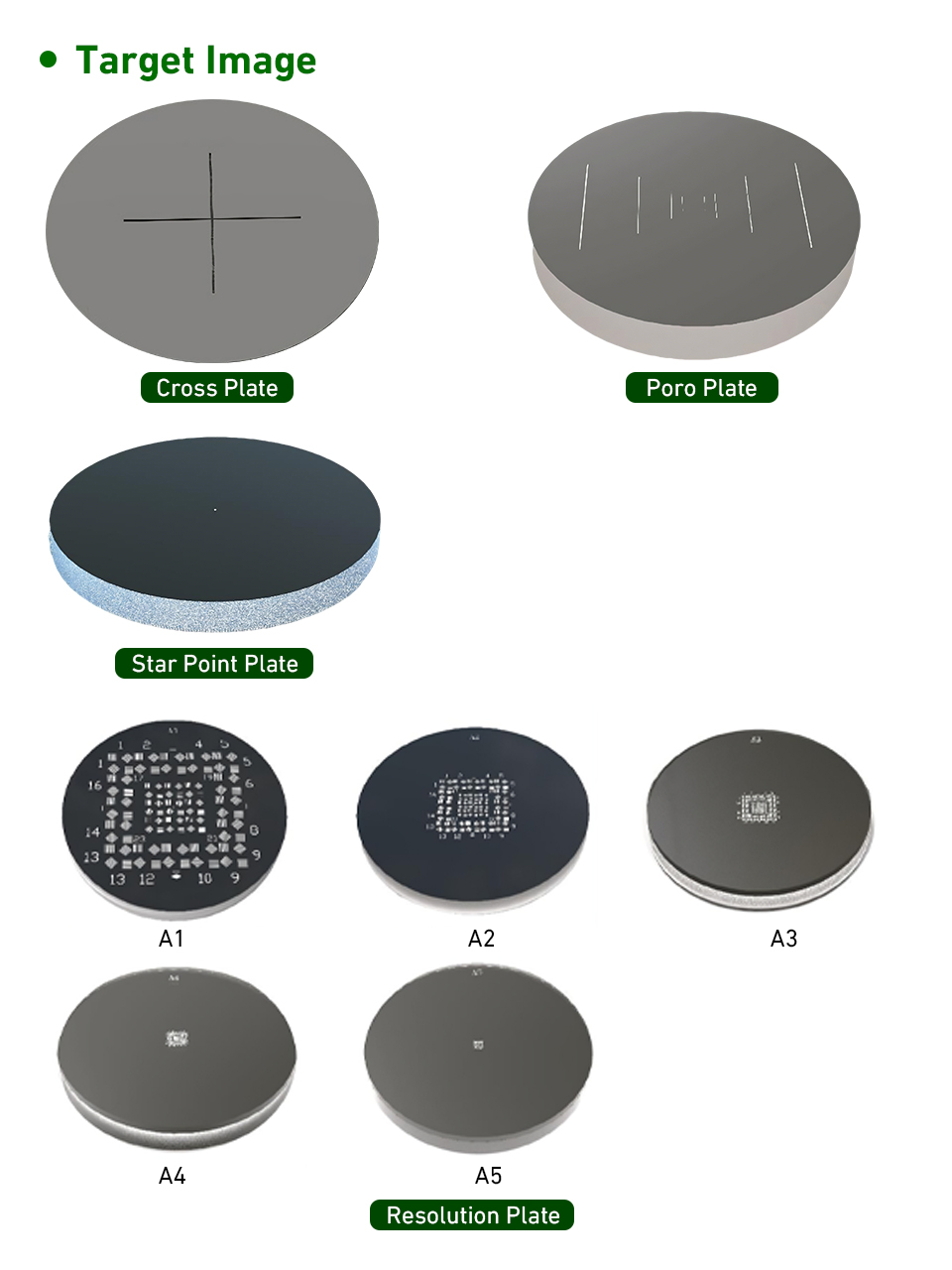

Cross Plate |
||
| 1 |
φ30mm×3mm |
B270 |
| 2 | B270 | |
|
Poro Plate |
||
|
1 |
φ25mm×3mm |
B270 |
| 2 |
φ30mm×4mm |
|
|
Star Point Plate |
|||
|
Serial No. |
Target Specification |
Overall Dimension |
Base Material |
| 1 | 0.1mm |
φ25mm×4mm |
B270 |
| 2 | 0.2mm |
φ25mm×4mm |
B270 |
| 3 | 0.01mm |
φ25mm×4mm |
B270 |
| 4 | 0.02mm |
φ25mm×4mm |
B270 |
| 5 | 0.05mm |
φ25mm×4mm |
B270 |
| 6 | 0.1mm |
φ30mm×4mm |
B270 |
| 7 | 0.2mm |
φ30mm×4mm |
B270 |
| 8 | 0.01mm |
φ30mm×4mm |
B270 |
| 9 | 0.02mm |
φ30mm×4mm |
B270 |
| 10 | 0.05mm |
φ30mm×4mm |
B270 |
|
Resolution Plate |
|||||
| Mode | A1 | A2 | A3 | A4 | A5 |
|
Specification Dimension |
|
φ25mm |
φ25mm |
φ25mm |
φ25mm |
|
φ30mm |
φ35mm |
φ35mm |
φ35mm |
φ35mm |
|
| Base material | B270 | B270 | B270 | B270 | B270 |
