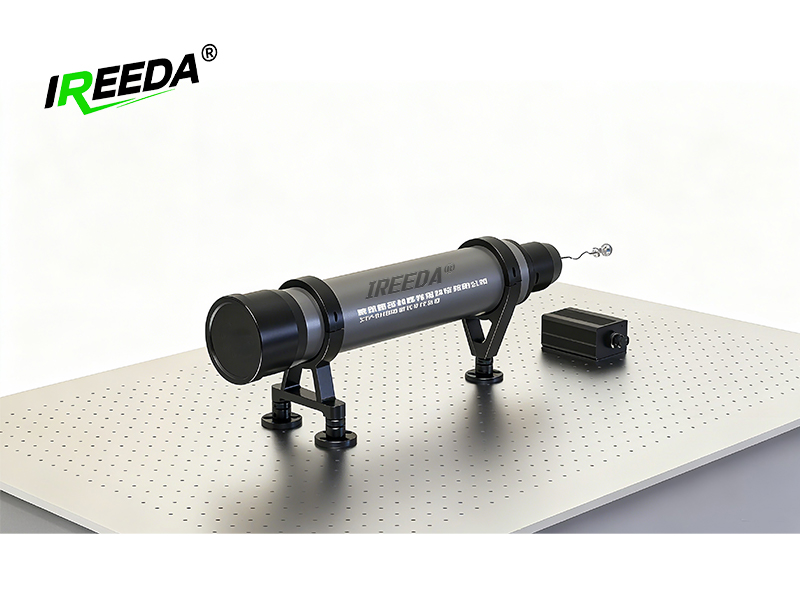

IREEDA Transmissive collimator ZYP-0508
Product introduction
IREEDA ZYP-0508 ransmitting parallel light tube is an instrument used to obtain parallel light beams. It is a basic testing reference component for various Optical bench, equipped with other accessories, and can be used to measure multiple optical basic parameters. It is one of the basic optical testing tools commonly used in the production, scientific research, teaching and other units of optical instruments.
Transmissive collimator ZYP-0508
External dimensions
Optical path diagram
Product Specification
Optical system
Transmissive
Focal length
500mm
Effective aperture
Φ80mm
Field of view(FOV)
≥3°
Resolution
≤1.8″
Parallel light divergence angle
≤10″
Wavelength band
380-780nm
Weight
8KG
ZYP-0508 Technical Parameter
Product Accessories
Name
Quantity
Units
Detailed information
Collimator
set
ZYP-0508
ZYP-0508
piece
Filter lens
piece
Orange(Central wavelength 600nm)
Green(Central wavelength 532nm)
Attenuating lens
piece
Neutral attenuation lens(430-730nm)
Target plate（Applies to visible light bands）
piece
Cruciform target plate
Resolution target plate：2#/3#
Starpoint target plate：0.2/0.02/0.05
Bullseye Board
DC POWER SUPPLY
set
Output voltage:0-30V Output current:0-5A
Light source component
set
Model：ZYG-152
12V30W Halogen light source
1
2
2
1
7
1
1
