Product Introduction

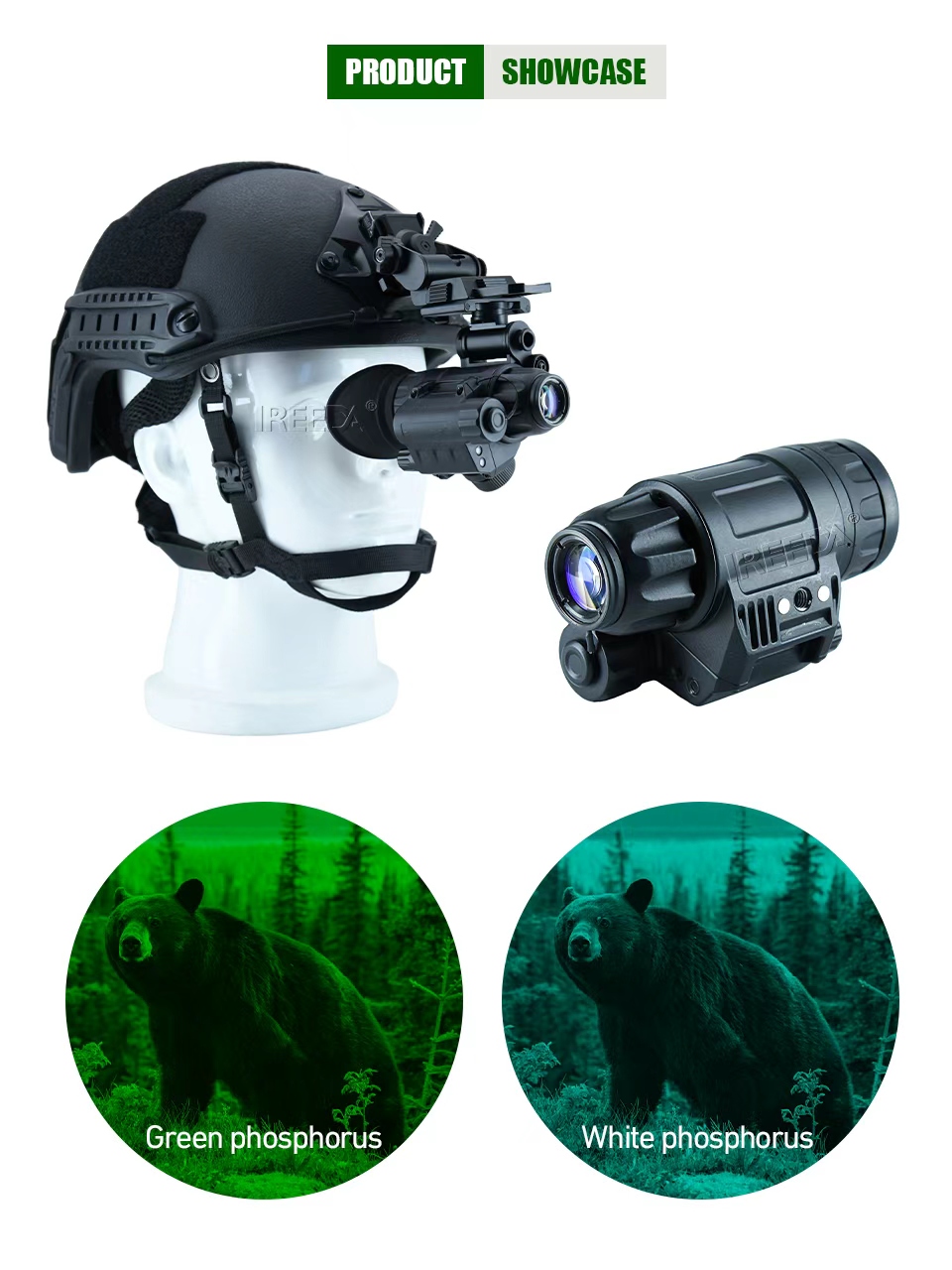

IREEDA proudly introduce the all-new PVS-14 monocular night vision device，which integrate cutting-edge optical technology with ergonomic design, aiming to bring you a wider field of view, a lighter grip, and superior imaging performance, redefining the benchmark for nighttime operations.

Main Feactures

• smaller in size, lighter in weight
• 50° FOV
• High resolution, low distortion
• High recognition

Specification

ITEM	DATA
Generation IIT	Gen2+
Fluorescent Screen	P43/P45
FOV	50°±2°
Magnification	1x ± 0.05x
Optical Distortion	≤2%
Relative Illumination	＞70%
Brightness Gain Adjustment	manual
Focus Range	250mm~∞
Diopter Adjustment	+2SD~-6SD
Eye Relief	≥25mm
Exit Pupil Diameter	≥14mm
Power Supply	battery compartment(CR123A×1/AA×1)
Secondary Light Source	930nm
Rollover Detection	automatic detection，power off when flipping up
Security Functions	low voltage alarm，strong light protection
Working Hours	30h
Weight(Battery Not Included)	≤260g
Dimensions(Eyecups Not Included)	105mm×55mm×70mm
Operating Temperature	-20℃~+45℃
Waterproof Level	IP65

---
