IREEDA Comprehensive Optical Bench ZYGJ-0508

Precision · Efficiency · Versatility

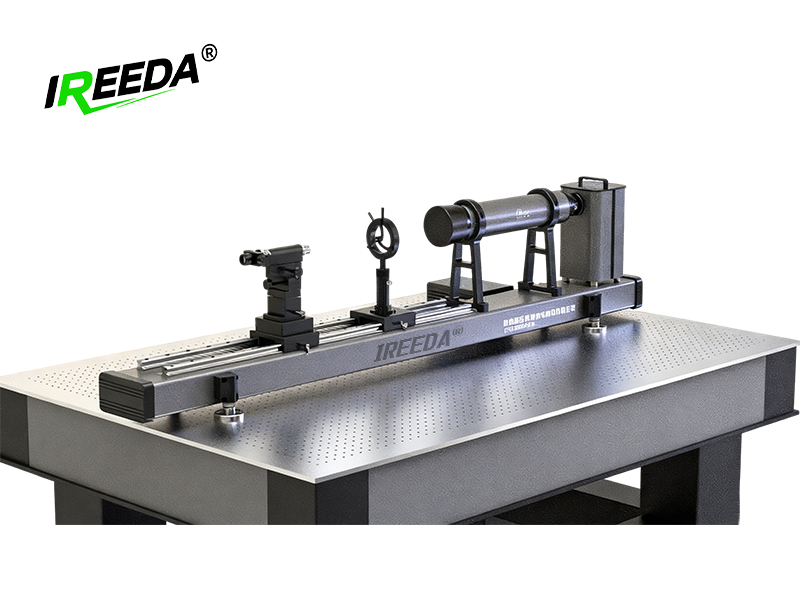

IREEDA OPTICAL BENCH

Technical Highlights:

Multi-functional Integrated Design: Replaces the need for multiple single-function instruments. One ZYGJ-1010 platform performs diverse tests including focal length, resolution, image quality, and aberration analysis.
Authoritative Measurement Methods: Incorporates classic optical measurement techniques such as the Boro method, resolution target method, and star-point method, ensuring scientific and authoritative results.
Powerful Expandability: Its functionality can be extensively extended by pairing with an autocollimating telescope and other external instruments, adapting to future, more complex testing requirements.
Application-Oriented Scenarios: An essential tool for both fundamental optical parameter measurement and advanced performance research on complex optical systems.

Application:

Focal length and image quality evaluation of lenses (objectives)
Performance testing of components like prisms and filters
Integrated testing and parameter calibration of optical systems (e.g., telescopes, microscopes)

ZYGJ-0508 Specification:

Product name	Optical bench
Optical system	Transmissive
Effective aperture	Φ80mm
Resolution	≤1.8″
Wavelength band	380-780nm
Focal length	500mm
Field of view	≥3°
Parallel light divergence angle	≤10″
Weight	90KG

Product Accessories:

Name	Quantity	Units	Detailed information
Collimator	1	set	ZYP-0508
Reading microscope	1	set	Product model:DXJ-1
Reading microscope accessories	1	set	Eyepiece:10^X Micrometer eyepiece:15^X Objective lens:1^X/4^X/10^X
Lens holder	1	set	Product model:TJQ-1
Base with guide rail	1	set	Rail length 1000mm
Filter lens	2	piece	Orange(Central wavelength 600nm) Green(Central wavelength 532nm)
Attenuating lens	1	piece	Neutral attenuation lens(430-730nm)
Target plate（Applies to visible light bands）	7	set	Cruciform target plate Resolution target plate：2#/3# Starpoint target plate：0.2/0.02/0.05 Bullseye Board
DC POWER SUPPLY	1	set	Output voltage:0-30V Output current:0-5A
Light source component	1	set	Model：ZYG-225 12V30W Halogen light source
