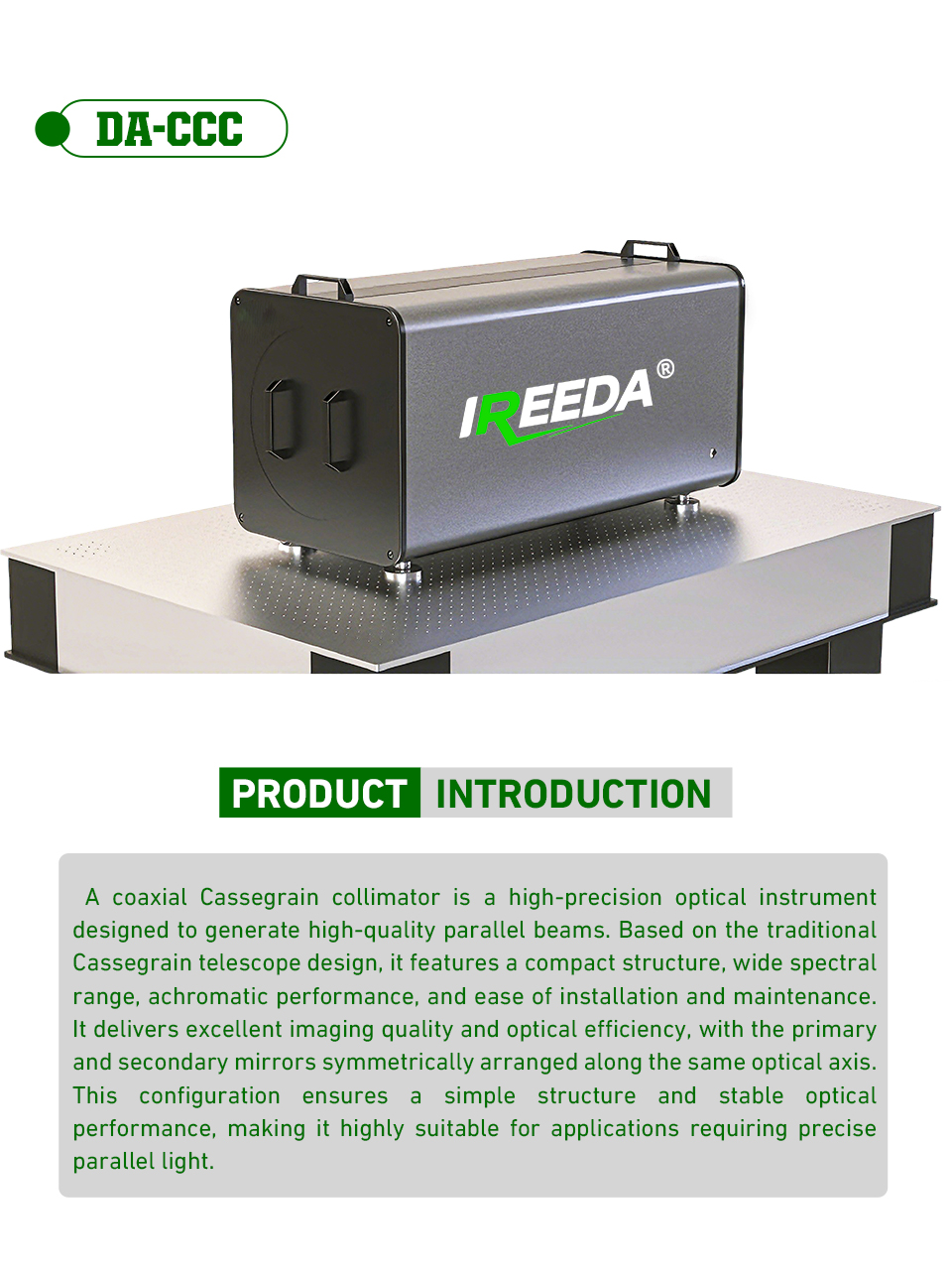

High Precision Optical Instrument: IREEDA Coaxial Card-type Collimator
Technical Parameters
|
|
DA-CCC2020 |
DA-CCC3030 |
DA-CCC5030 |
|
Focal Length |
2000mm |
3000mm |
5000mm |
|
Aperture |
Φ200mm |
Φ300mm |
Φ300mm |
|
Field Of View |
≥0.8° |
≥0.53° |
≥0.32° |
|
Main lens material |
Standard:Quartz Optional: Microcrystalline |
||
|
Coating |
Standard: Aluminum + Silicon Protection Optional: Au / Ag / Dielectric Coating |
||
|
Reflectivity |
Single lens reflectivity ≥85% |
||
|
System Wavefront Error |
RMS better than 1/15λ@632.8 |
||
|
Parallelism |
≤5'' |
||
|
Operating Band |
UV-VIS Band, VIS-IR Band |
||
