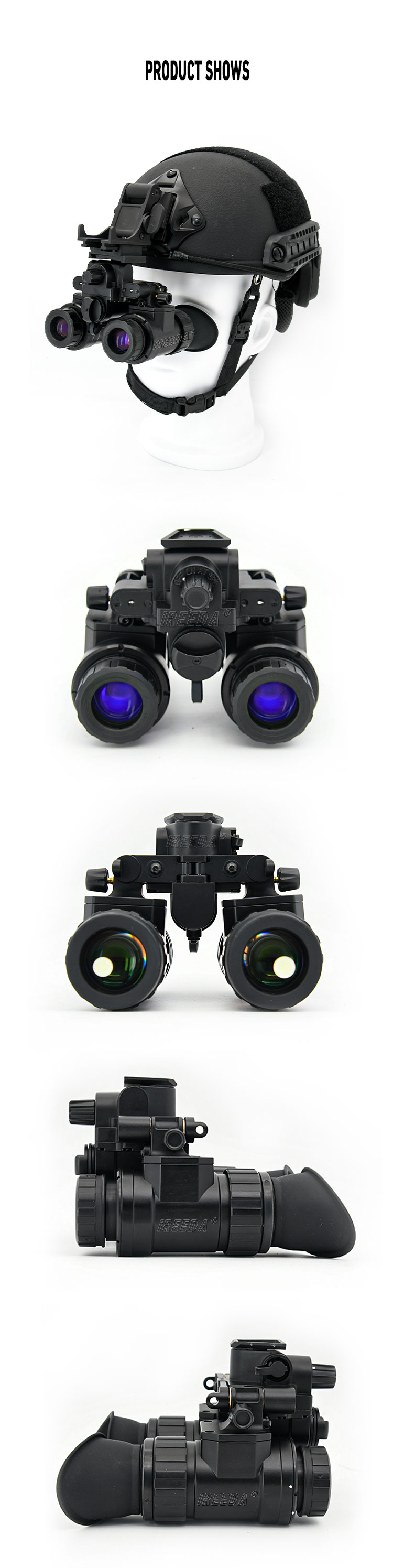

IREEDA^®Remarkable night vision binocular PVS 3150

Overview

DA-PVS3150A helmet-mounted night vision binoculars feature an ergonomic, low-profile design and an ultra-wide 50 ° field of view,breaking through traditional observation limitations and providing a wider night view.Aim to improve system resolution, significantly reduce head weight, and improve the system's center of gravity,providing additional operational utility.They also feature a manual gain function and flip-up auto-off,allowing for flexible light adjustment,enhancing the operator's overall situational awareness and offering greater accuracy and environmental adaptability than current night vision binoculars.

Features-PVS 3150

• Multipurpose: handheld,helmet support, head support
• Manual gain function
• Protection level reaches IP67
• Small in size, and light weight
• High definition

Specification

Mode	PVS 3150
Structural method	Binocular Double-Tube
Flip detection	Automatic detection/ Single-side flip shutdown/Whole-unit upward tilt shutdown and activation/Standby after 60 minutes of stationary placement
Power supply mode	Battery (AAx1)/AAx4 with external battery box
Battery voltage range	1.2-3.3V
Installation	Kevlar helmet/French-style soft helmet/ Russian-style soft helmet/ Steel helmet connection mechanism
Control method	OFF /ON /IR /GC
Optical magnification	1X ± 5%
Full field of view	50 ° ± 2 °
Optical axis parallelism	Convergence ≤ 20’, Divergence ≤60’, Vertical ≤20’
Image Intensifier	Second generation + image intensifier tube
Optical distortion	3% Max
Focus range	250mm- ∞
Eyepiece exit pupil distance	25mm
Eyepiece exit pupil diameter	14mm
Vision range	-5 SD~ +2 SD
Eye distance adjustment range	54-80mm
F-number	1.2
Waterproof grade	IP67
Operating temperature	-40~ 50℃
