Introducing a compact new PCB for DA-PVS14
Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com
With subtlety, it controls the darkness. Ireeda Tech's latest generation DA-PVS14 PCB night vision monocular circuit board has been officially launched. With its revolutionary miniaturized design and intelligent integration, it injects core power into high-end night vision equipment.

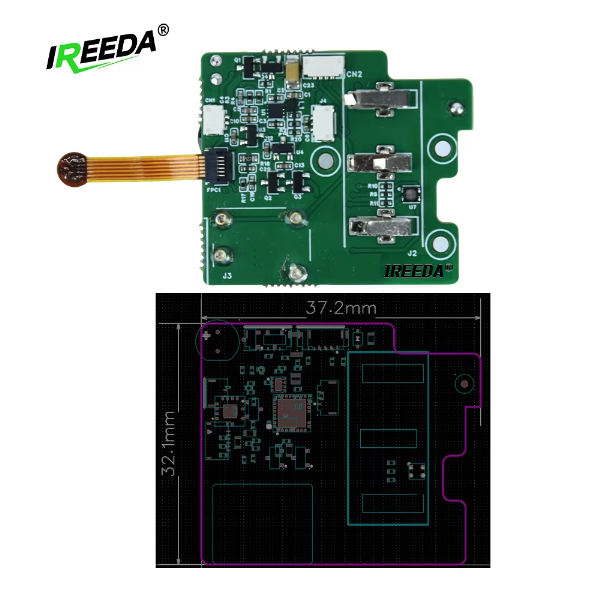

The compact layout of 37.2mm x 32.1mm enables unprecedented space utilization.
Here are some key specifications:
It can support five different types of IIT tubes:
1.Pigtail tubes
2.Three-wire and two-wire tubes
3.Three-contact and two-contact tubes
In addition to this, this PCB has a complete range of functions including:
1. Automatic standby upon flipping up，automatic working upon flipping down (This function can be manually turned on and off)
2. Automatic on/off of IR illuminator(in AT working mode)
3. Manual on/off IR illuminator
4. Automatic stand-by at rest statue over 100s
5. Strong light protection
6. Brightness gain
7. Low battery indicator
8. Suitable for different batteries (non-rechargeable AA/CR123 lithium battery;rechargeable AA/CR123 lithium battery)
Consumption and working time table
|
Mode |
Normal mode |
|||
|
Battery Type |
AA (1.5V-2000mAh） |
AA Rechargeable (1.2V-2000mAh) |
CR123 (3V-1400mA) |
CR123 Rechargeable (3.6V-700mAh) |
|
Total Power Consumption |
57mW |
60mW |
48mW |
46.8mW |
|
Working Time |
45h |
34h |
76h |
45h |
|
Mode |
IR mode |
|||
|
Battery Type |
AA (1.5V-2000mAh） |
AA Rechargeable (1.2V-2000mAh) |
CR123 (3V-1400mA) |
CR123 Rechargeable (3.6V-700mAh) |
|
Total Power Consumption |
72mW |
73.2mW |
60mW |
57.6mW |
|
Working Time |
35h |
28h |
60h |
38h |
|
NO. |
Key technical specifications |
Specification |
|
1 |
Dimensions |
37.2mm*32.1mm |
|
2 |
Power off consumption |
<10μA |
|
3 |
Voltage ripple |
±50mV |
|
4 |
Operating temperature range |
-40℃~+60℃ |
|
5 |
Storage temperature range |
-40℃~+70℃ |
|
6 |
MTBF |
5,000 h |
|
7 |
Service life |
≥ 3 years |
As a leading manufacturer of night vision and thermal imaging systems, Ireeda Tech has officially launched its brand-new DA-PVS14 PCB night vision monocular circuit board.With higher integration, stronger compatibility and more intelligent design, we provide reliable and efficient night vision solutions for military, security and special industry users.
For inquiries about product sourcing and specifications, please contact us via our official website, WhatsApp, or WeChat to embark on a new experience of boundless dark night observation!
