DA F-GPNVG Foldable Quad-Vision Night Vision Device: 120° Panoramic Field of View
Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com

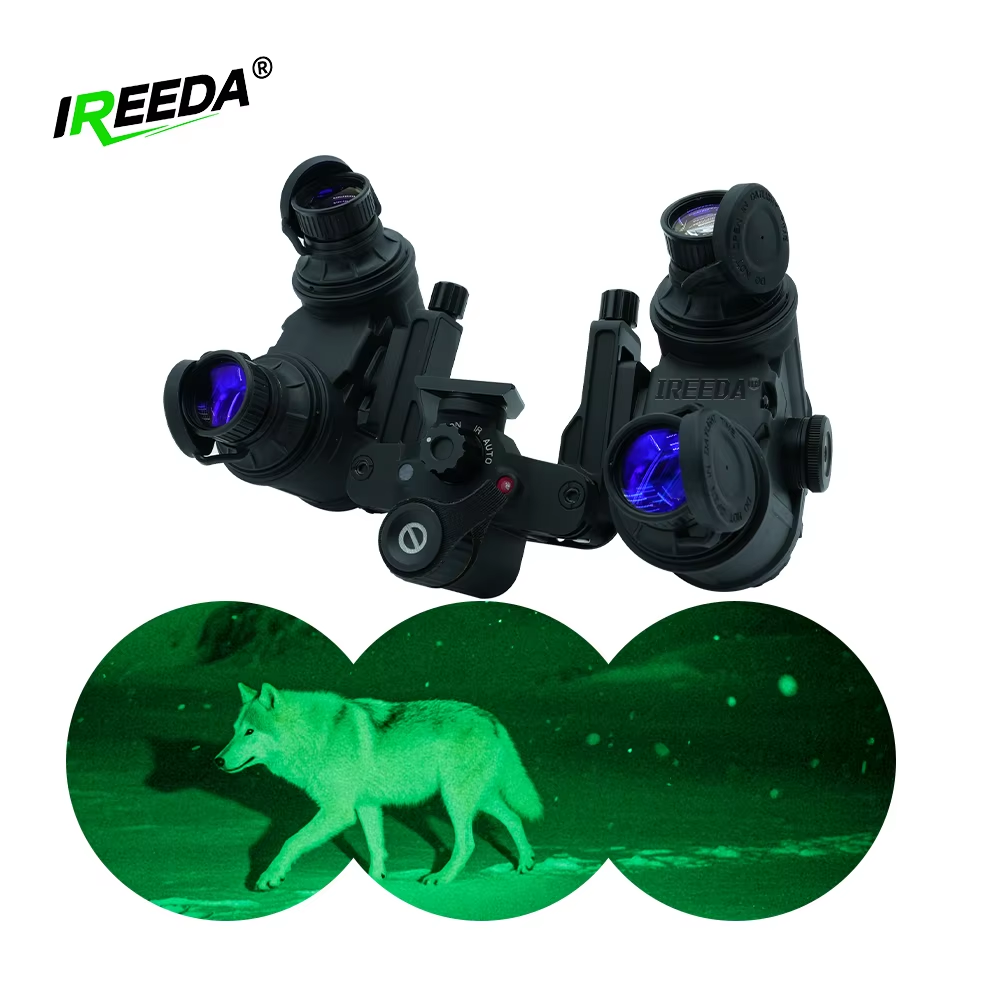

When darkness becomes a limitation, the DA F-GPNVG foldable quad-vision night vision device, with its innovative design and robust performance, provides users with an all-weather, wide-field-of-view night observation solution. Its core advantages are concentrated in the following four dimensions:I. 120° Panoramic Field of View, Breaking Observation Boundaries
Equipped with four independent image intensifier tubes and four panoramic aligned objectives, along with two forward-facing intermediate lenses, it achieves an ultra-wide field of view of 120±2° horizontally and 50±2° vertically, far exceeding the limitations of traditional binocular night vision devices. Whether for outdoor exploration, security patrols, or special missions, it allows for a panoramic view of target movement and environmental details in the dark, helping users quickly complete the "observation-location-decision-action" closed loop and seize the initiative in the dark. Supporting white phosphorus or green phosphorus imaging options, and equipped with Gen2+/Gen3 level selectable intensifier tubes, the ultra-high resolution makes details in the dark clearly discernible, with optical distortion controlled within 1%, ensuring stable and transparent imaging.
II. Dual-Fold Power-Off Design, Adaptable to Diverse Scenarios
Innovatively adopting a "flip-up + side-flip" dual power-off mode, it offers greater flexibility compared to the traditional single-fold method. When temporarily switching to a bright environment, simply flip the device sideways to quickly shut it off without the need for complete disassembly, greatly improving ease of use; for regular storage, flip it up to shut it off, saving space and protecting the lens. Equipped with 30mm interpupillary distance adjustment, +1.5~2.5 diopter adjustment, and an 8mm pupil diameter adaptation design, it allows for quick and clear vision whether used with or without glasses, adapting to different user needs.
III. Robust Protection Performance, Coping with Extreme Environments
With IP65/IP67 waterproof rating, it can easily handle complex environments such as heavy rain and humidity, and its wide humidity adaptation range of 5%-95% further expands its application scenarios. It can operate stably in extreme temperature differences from -40℃ to +55℃, maintaining performance without degradation in both extremely cold and high-temperature environments, meeting all-weather operation needs. Weighing only 840g without the battery, and with a compact size of 155x136x83mm, the lightweight design reduces the burden of prolonged wear, making it both portable and durable.
IV. Intelligent and Practical Configuration for Stable Battery Life
It features a built-in 850nm 20mW infrared illuminator for active supplemental lighting in dark environments, accompanied by an IR indicator light that clearly displays the supplemental lighting status. Automatic brightness control and strong light cutoff functions protect eyesight while ensuring image clarity in various lighting conditions. Equipped with a low battery warning function, it supports single or quad-battery power from a CR123 battery, with a wide voltage range of 2.6-4.2V and battery capacities ranging from 800-3200mAh, allowing users to choose the appropriate capacity for short outdoor trips or extended continuous work, eliminating worries about power outages.
V.Packing List

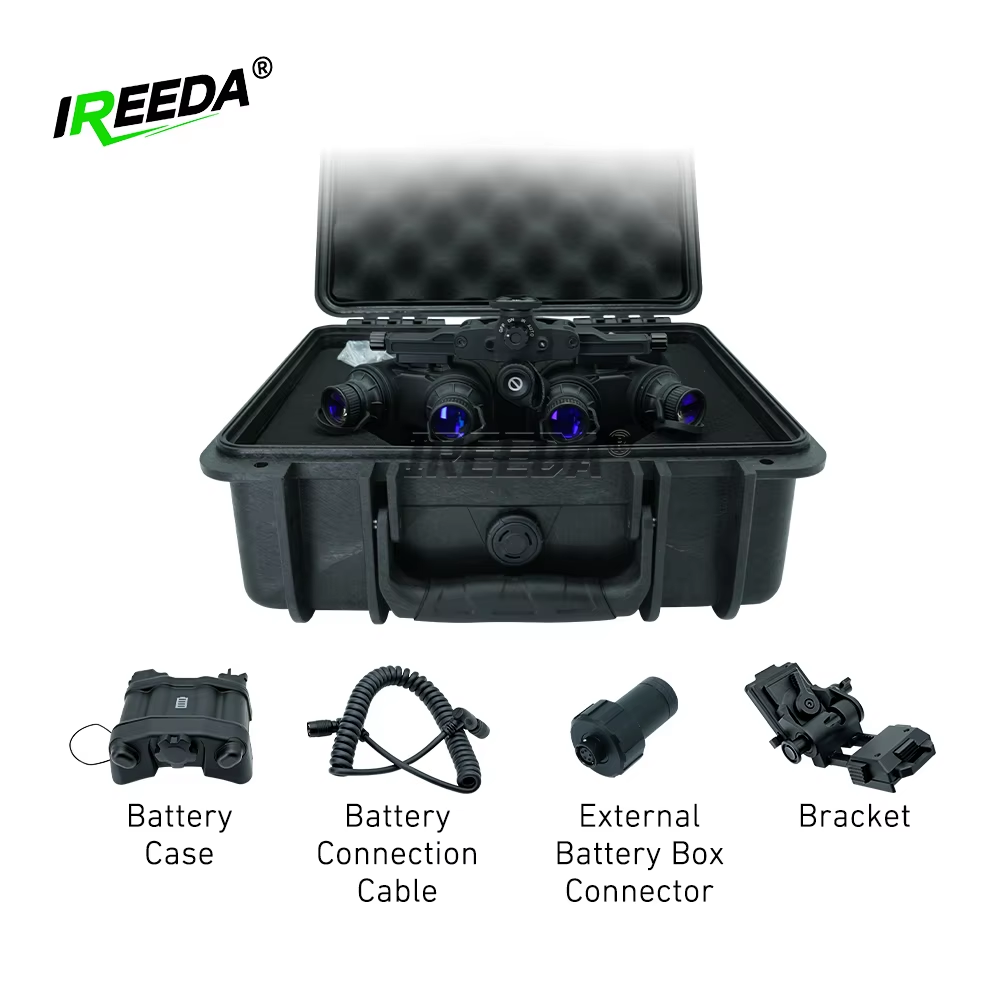

The products are delivered in fully assembled protective cases. Once opened, they can be used directly. The standard accessories include:
- Foldable four-lens night vision device
- Battery box
- Battery connection cable
- External battery box connector
- Fixed bracket
The complete set of accessories covers core usage scenarios such as power supply and installation, and no additional purchase of adapter components is required. It efficiently meets various operation needs.
From professional performance to practical design, the DA F-GPNVG foldable quad-lens night vision device comprehensively balances field of vision, convenience, durability, and battery life, making it an essential choice for nighttime observation. For inquiries about product sourcing and specifications, please contact us via our official website, WhatsApp, or WeChat to embark on a new experience of boundless dark night observation!
