DA - PVS31 binocular night vision device: let the night no longer be an obstacle to the mission

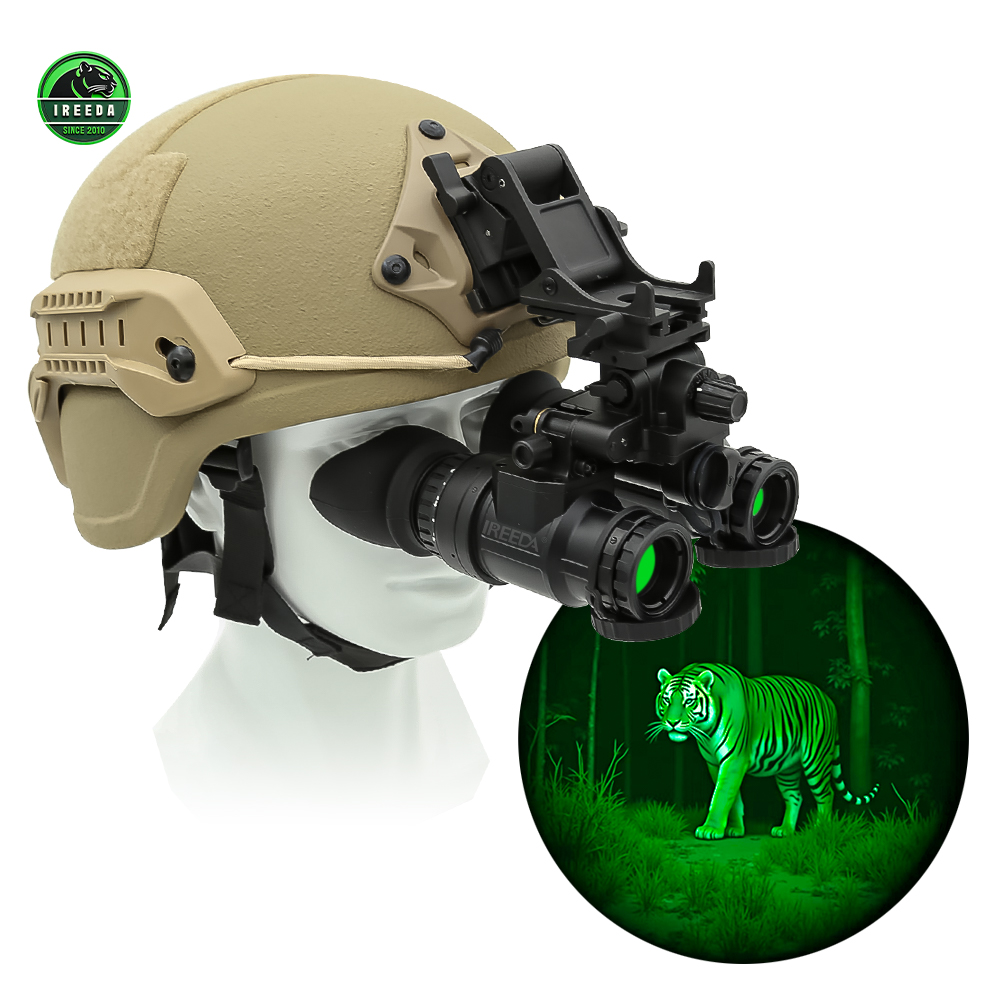

In the field of night combat and observation, a night vision device with excellent performance is crucial. The DA-PVS31 helmet-mounted binocular night vision device has become a reliable partner for night missions with its powerful functions and excellent design.
1. Excellent design, in line with actual combat needs
The DA-PVS31 adopts an ergonomic low-profile design, which can provide better situational awareness than single-tube night vision devices. Whether it is handheld, helmet-mounted or head-supported, the multi-purpose use method is suitable for various scenarios. Military-grade quality assurance, high performance and high quality, compact and light, weighing only 490g (excluding batteries), effectively reduces the burden on the head, and is not easy to get tired even after long-term missions, helping users to easily cope with complex environments. The protection level can reach IP65/IP67 (optional), which is no problem to cope with harsh environments, and can work stably in dust, water immersion and other conditions.
2. Powerful performance, breaking through the limitations of the dark night
(I) Excellent optics and night vision performance
It is equipped with a high-quality optical system, a 25mm, F/1.2 lens, and a multi-layer broadband coating to ensure efficient light transmission. The 18mm, S-25 photocathode, resolution ≤60lp/mm, SNR (signal-to-noise ratio) ≥22, make the night vision picture clear and sharp, and show the details. 1x magnification, 40°×2° (60°×2° optional) field of view, 0.25m to infinity focus range, manual focus to accurately capture the target, whether it is close-range reconnaissance or long-distance observation, it can clearly present the scene and help users see the details of the dark night.
(II) Intelligent and stable system configuration
The battery uses a 2.6V-4.2V Lithium battery (CR1231/CR123A) (external battery box), with a battery life of up to 40-100 hours, meeting the needs of long-term missions. With Rollover Detection function, it automatically detects and cuts off the power when turned on to ensure safe use. The installation method is compatible with the standard American helmet interface, which is convenient to wear on the head. The pupil distance is 30mm, the eyepiece aperture is 8mm, the visual range is -40S - +40S, the pupil distance can be adjusted continuously and arbitrarily (56 - 72mm adjustment range), and the pupil distance can be manually locked to adapt to the eye characteristics of different users to ensure comfortable observation. 850nm, 20mW infrared assistance allows "clear vision" in low-light environments. The working temperature is -40℃ to +55℃, and the humidity is 5% - 95%. It can adapt to various climates such as extreme cold, humidity and heat. Whether in deserts, jungles or polar regions, it can operate stably.
3. Practical value, helping to achieve the task
Designed to meet the combat needs of special forces, the binocular structure is compared with traditional double-tube night vision devices. While improving the system resolution, it greatly reduces the head load and optimizes the center of gravity distribution. This means that users can move more flexibly when performing tasks, reduce the impact of head fatigue, and thus improve operational practicality and overall situational awareness. Whether it is night patrol, reconnaissance, raids and other tasks, DA-PVS31 can become the "eyes in the dark" of soldiers, breaking through the limitations of darkness, capturing key information, and helping to complete tasks efficiently and safely.
DA-PVS31 helmet-mounted binocular night vision device, with excellent design, powerful performance and practical value, has become a leader in night observation and combat equipment, creating a clear, safe and efficient "vision" for users in dark environments. It is a powerful equipment for military, security and other fields to cope with night tasks.
