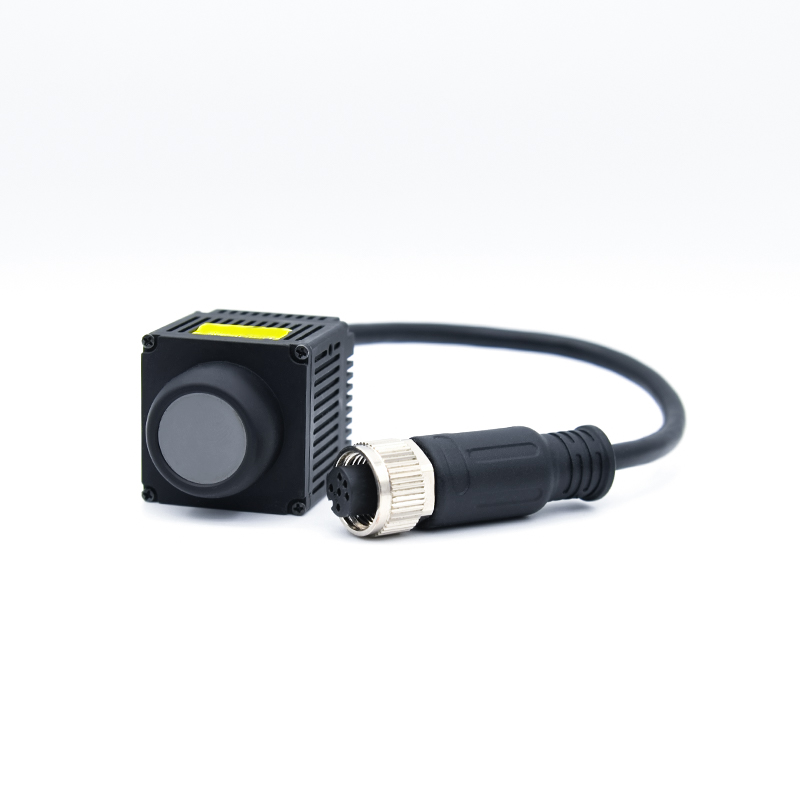

Driving Assistant Thermal Night Vision Car Camera
The DA-N (384) night vision thermal car camera system is mainly used in advanced assisted driving of auto-mobiles. It can obtain clear images during driving at night or in low light, and provide more com-prehensive and accurate information on potential hazards to help the driver obtains a higher foresight ability.
MAIN FEATURES:
High-brightness illumination of non-luminous heating objects.
Anti-glare function.
See clearly in complete darkness, dense fog, bright light or other inclement weather.
The longer detection distance can reach more than 300m for vehicles and more than150m for people.
IP67 protection level.
| Sensor | |
|
Type |
Uncooled Vox 384*288px |
| Image display performance | |
| lens System | 9.7mm/F1.0 |
| FOV |
37.0°*28.0°（ PLA)）,35°*24°（NTSC)） |
| Spatial Rsolution |
1.75mrad
|
| video output interface |
RAC lotus male head
|
| video output Format |
Analog Video CVBS
|
| Output image Frame Rate and Resolution |
25Hz、768×576@PAL or 30Hz、720×480@NTSC
|
| System | |
| Start time |
≤8S(Normal temp.)
|
| Shutter Control |
Auto
|
| Automotic Heater |
When the window temperature is lower than 2℃±2℃, it will automatically start the intelligent heating.
|
| Shutter |
When the window temperature is higher than 7℃±2℃, itwill AutoShutterCompensation
|
| Image Algorithmis |
Auto Brightness Contrast
|
|
Image enhancement |
|
|
Power characteristics |
|
| Ralted Voltage |
DC 9V～32V (typical value 12V or 24V)
|
|
|
≤3.5W (12V or 24V power supply, do not start window heating)
|
|
≤9W (12V or 24V power supply, start window heating)
|
|
|
Environmental parmameters |
|
| Operation Temperature |
-40℃～+85℃ (power on state)
|
| storage Temperatur |
-45℃～+90℃ (power off state) (perform according to national standard)
|
| IP level |
IP67(sealed housing)
|
| Detection Range | |
|
Detection range (Under Normal weather condition) |
Human(1.8m*0.5m) ≥150m
|
|
Vehicle(2.3m*2.3m) ≥300m
|
|
|
Phyical properties |
|
| Size |

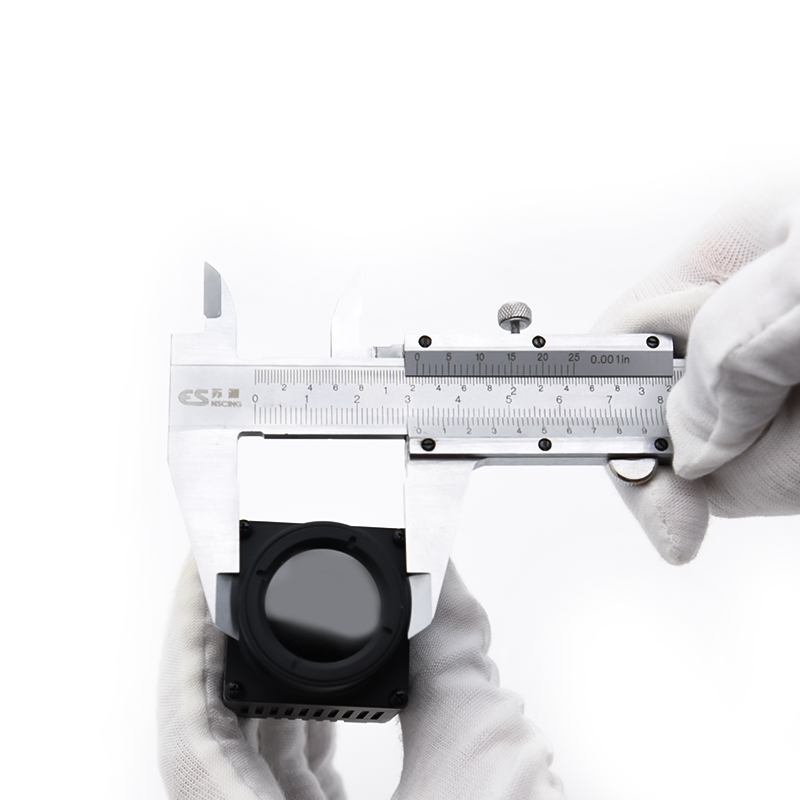

40*36*58mm(Cable not included)
|
| Weight |
200g
|
