Advanced and New Ireeda's Thermal Imaging Devices
Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com
Thermal imaging devices are specialized instruments that capture and display the infrared radiation emitted by objects. They convert heat signatures into visible images, enabling users to see differences in temperature.
These devices are highly useful in multiple fields. In the military, they aid in detecting targets and assessing potential threats even in low-light or obscured conditions. In building inspections, they can identify insulation problems and energy leaks by detecting temperature variations. For medical applications, they can be used for early detection of certain diseases by measuring changes in body temperature.
Thermal imaging devices come in different shapes and sizes, from portable handheld models to more complex systems integrated into larger equipment. They offer a unique way to view the world by highlighting heat rather than visible light.
|

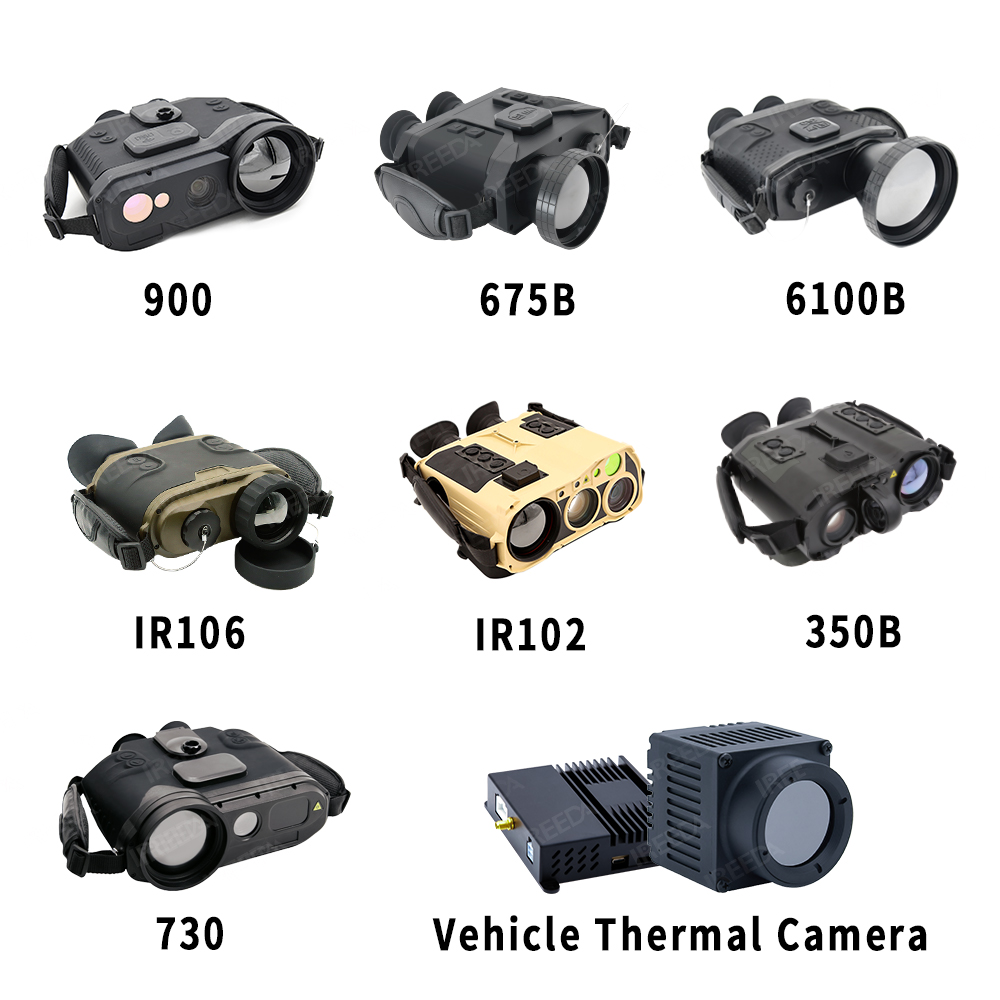

Product
|
DA-350B
|
DA-375B
|
DA-650B
|
DA-675B
|
DA-6100B
|
|
Main Parameter
|
|
Detector Type
|
Uncooled Focal Plane VOx
|
|
Resolution
|
384*288px at 12 μm
|
640*512px at 12 μm
|
|
Spectral Range
|
8~14μm
|
|
Frame Rate
|
50Hz
|
|
NETD
|
<50mk @F1.0,300K
|
80mk
|
|
Micro Display
|
1024x768 0.39' OLED
|
|
IMAGE PROCESSING
|
|
Boot Time
|
<6s
|
|
Noise Reduction
|
Digital filtering
|
|
Image Adjustments
|
Electric/Manual Adjustment
|
|
E-Zoom
|
1X/2X/4X
|
|
LENS SYSTEM
|
|
Focal Length
|
f=50mm F1.0
|
f=75mm F1.0
|
f=50mm F1.0
|
f=75mm F1.0
|
100mm/F1.2
|
|
FOV
|
5.3°x4.0°
|
3.5°x2.6°
|
8.8°x7.0°
|
5.9°x4.7°
|
6.2°x4.7°
|
|
Focusing Method
|
Manual
|
|
PHOTO & VIDEO RECORDING
|
|
Photo Function
|
JPEG
|
|
Video Function
|
MPEG4
|
|
Storage
|
32GB; USB-A 2.0
|
-
See in the dark: Thermal imaging devices can generate images by detecting infrared radiation emitted by objects, so they can work in complete darkness. For example, in nighttime military operations and security patrols, they can easily detect people or objects hidden in the dark.;
-
Strong penetrating power: They can penetrate smoke, dust, fog and other obstacles. In fire scenes, firefighters can quickly locate fire sources and trapped people through thick smoke. In outdoor environments under harsh weather conditions, they can also help workers observe distant objects or scenes;
-
Non-contact detection: They can measure the temperature and generate thermal images of objects without direct contact, without causing interference or damage to the detected objects. They are suitable for detecting some dangerous or inaccessible objects, such as high-voltage wires, operating mechanical parts, cultural relics and historic sites, etc;
-
Quick detection and response: They can generate real-time thermal images and temperature information, enabling quick detection and response to potential problems or emergencies;
-
Security and surveillance: Thermal imaging devices are widely used in security and surveillance systems. They can detect intruders in low-light or no-light conditions, providing enhanced security for buildings, facilities, and perimeters;
-
Industrial inspection: In industrial settings, thermal imaging devices can be used to detect equipment overheating, insulation problems, and other potential issues before they become major problems. This helps prevent equipment failures and reduces downtime;
-
Firefighting: Firefighters use thermal imaging devices to locate people and hot spots in fires, helping them make more informed decisions and save lives;
-
Outdoor activities: Hunters, hikers, and wildlife observers can use thermal imaging devices to spot animals from a distance, even in low-light or obscured conditions. They can also be used for search and rescue operations in the wilderness;
-
Medical applications: In some medical applications, thermal imaging devices can be used to detect early signs of diseases by measuring changes in body temperature. They can also be used for non-invasive temperature monitoring in hospitals and clinics;
