PVS-14 Night Vision Monocular: Revolutionizing Low-Light Vision

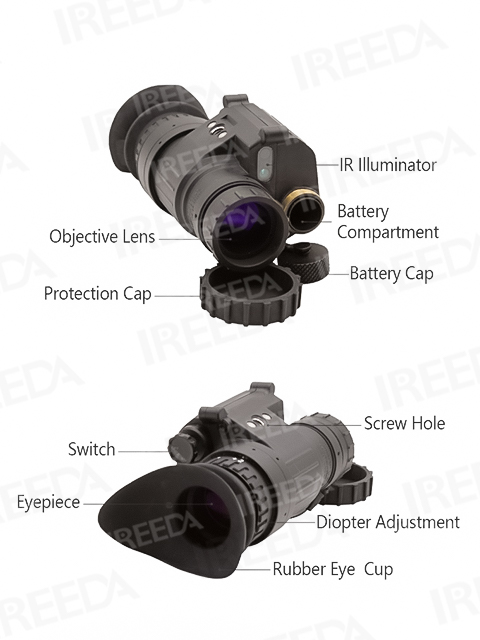

The DA-PVS14 series stands out as the best all-round multifunctional night vision monocular currently available. Whether mounted on the head or helmet, it enables the user to keep their night-adapted vision in one eye while observing their surroundings through the illuminated eyepiece. The new battery housing makes it an even more perfect package by allowing the user to turn off the unit when it is in an upright position and turn it on when flipped down.
DA-PVS14's Features:
1)Small in size, compact rugged goggle system;
5)Multipurpose: handheld, helmet support, head support;
|
PVS-14 Night Vision Monocular: Revolutionizing Low-Light Vision |
||
|
|
DA-PVS14
|
DA-PVS14 Manual Gain
|
|
Magnification
|
1x | |
|
FOV
|
40° | |
|
Eye relief distance
|
25mm | |
|
Eye relief diameter
|
14mm | |
|
Diopter
|
-6~+2 (-5,+5 can customize) | |
|
Lens system
|
25mm F#1.2 | |
|
Eyepiece lens system
|
25mm | |
|
Focus range
|
250mm to infinity | |
|
Dimension
|
114*70*60mm
|
143*72*62mm
|
|
Weight
|
310g(with battery)
|
325（with battery）
|
|
Battery type
|
CR123 | |
|
Duration time
|
30hours | |
|
IR Illuminator
|
Yes | |
|
Highlight protection function
|
Yes | |
|
IIT Classification
|
Gen3 | |
|
Photocathode type
|
18mm S-25 | |
|
Resolution typical, lp/mm
|
＞ 60 Lp/mm | |
|
Luminous gain,typical , fl/fcd
|
19000-30000 | |
|
Signal-to-noise ratio, typical
|
＞23 | |
|
FOM
|
1600+ | |
|
Operation temp
|
-20℃～50℃（Can customize -40℃～55℃） | |
|
Storage temp
|
-40℃～60℃ | |
|
Protecion level
|
IP65（IP67 Optional） | |
|
Manual Gain
|
NO |
Yes
|
|
Auto-gating
|
Yes | |
