F-PVS31 Night Vision Binocular

WhatsApp:+86-18291418396

Product Overview

F-PVS31 fusion night vision binocular (hereinafter referred to as the night vision device) is a

multifunctional night vision device with small size, light weight and easy to carry. It can be handheld

or head-mounted, integrating multiple functions such as infrared imaging and low-light imaging,

providing observers with rich battlefield information and greatly improving field detection and

observation capabilities. F-PVS31 binocular fusion night vision devices is mainly used at night. It is

especially used for ultra-wide field observation of the surrounding environment and close-range

targets at night or in poor visibility environments (such as haze, etc.), equipment operation and

command operations, etc. It is also suitable for night patrols, rescue, covert reconnaissance and map

viewing, etc., and is applicable to a wide range of places and scopes.

Speicification

SN	Mode	Specification	F-PVS31
1	Night vision (Gen2+/3 Image Intensifier Tube)	Magnification	1 x
2		FOV	40 °
3		Focus range	250mm~∞ (Manual)
4		Exit pupil diameter	7mm
5		Exit pupil distance	20mm
6		Vision adjustment range	-4～+2
7		Manual gain	optional
8		Image Intensifier Tube	Gen2+/Gen3 optional
9	Infrared Thermal	Magnification	1 x
10		FOV	24×18 °
11		Focus range	500mm~∞ (Manual)
12		Detector type	640×512px 12um
13		Display resolution	≥1024x768
14		Brightness adjustment	Yes
15		Contrast adjustment	Yes
16	Whole Binocular	Structural method	Binocular
17		Bracket	TK2-V
18		Mode	Low light, infrared, fusion, etc.
19		False color	City, jungle, sea, desert
20		Electronic zoom	Yes
21		Electronic compass	Yes
22		Pitch indication	Yes
23		WIFI function	Yes
24		Intelligent tracking	Yes
25		Photo	Yes
26		Video	Yes
27		Playback	Yes
28		Automatic shutdown when rollover	Yes
29		The whole machine turns up and automatically shuts down	Yes
30		Power supply	External battery box（2x18650 battery）
31		Interpupillary distance adjustment	58-78mm
32		Dimension	125×105×94mm
33		Weight(without battery)	660g
34		Protection Level	IP67
35		Operating temperature	-40℃~+50℃
36		1.7m humanoid target	Identification distance: 400m, detection distance: 1000m
37		5m car target	Identification distance: 1000m, detection distance: 2500m

Packing

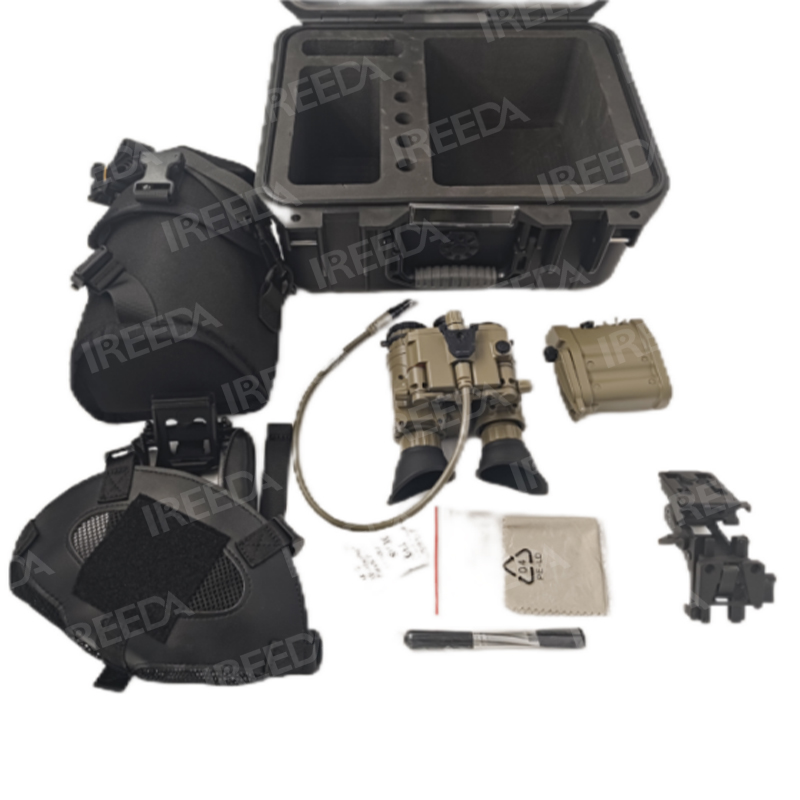

Standard accessories

No.	Type	Name	Quantity
1	Product	Binocular fusion night vision device (including eye cup, objective lens cover, external battery compartment)	1
2		Helmet bracket, soft foldable helmet	1
3		Soft carry case, safety box	1
4	Maintenance tools	Clean cloth	1
5	Maintenance tools	Brush	1
6	Other	User Manual	1
7	Other	Drier	1
