GEN3 Image intensifier tube
Compared with the Gen2+ image intensifier tube, the Gen3 image intensifier tube uses GaAs photocathode. GaAs is more efficient in converting photons into electrons, can provide better resolution and sensitivity, and can provide better observation effects in darker environments.
| SPECIFICATIONS OF Gen3 IMAGE INTENSIFIER TUBE（GaAs） | |||||
| Resolution (lp/mm) | Limit Resolution | ≥61 | ≥64 | ≥64 | ≥64 |
| Strong Light Resolution (@100kx) | ≥5 | ≥5 | ≥5 | ≥5 | |
| Sensitivity | 2856K Light Sensitivity μA/lm | ≥1800 | ≥1800 | ≥2000 | ≥2000 |
| 880 Radiation Sensitivity mA/W | ≥95 | ≥95 | ≥95 | ≥95 | |
| Signal-to-Noise Ratio | ≥28 | ≥28 | ≥28 | ≥30 | |
| Luminance Gain (cd/m2/lx) | 11000-20000 | 11000-20000 | 12000-25000 | 12000-25000 | |
| E.B.I(x10lx) | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | |
| Output Brightness (cd/m2@1lx-10lx) | 4-12 | 4-12 | 4-12 | 6-12 | |
| Brightness Uniformity (@2856K) | ≤3:1 | ≤3:1 | ≤3:1 | ≤3:1 | |
| MTF | 2.5 lp/mm | 88% | 89% | 89% | 89% |
| 7.5lp/mm | 72% | 74% | 74% | 74% | |
| 15 lp/mm | 54% | 60% | 60% | 60% | |
| 25 lp/mm | 30% | 35% | 35% | 35% | |
| Working Life(hours) | 7500 | 10000 | 10000 | 10000 | |
| Operating Voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | |
| Weight (g) | ≤80 | ≤80 | ≤80 | ≤80 | |
| Small High-voltage Power Supply | DC high voltage power supply or automatic gated power supply | ||||
| Effective Cathode Diameter (mm) | ≥17.5 | ||||
| Electric Connection | End lead/Contacts | ||||

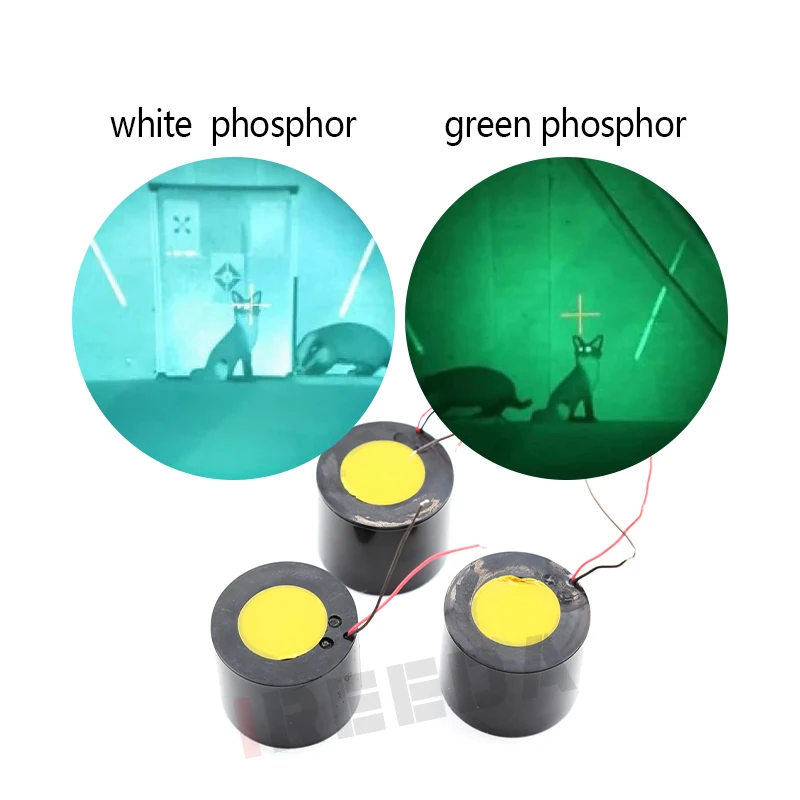

| Fluorescent Screen Type | P43/P45 | ||||
Gen2+ Image Intensifier Tube
NVT4 FOM1400+ image intensifier tube is a basic version product, When the FOM reaches more than 1400, it can present excellent image quality in low light conditions. It is a cost-effective product.
NVT6 FOM1600+ image intensifier tube adopts new MCP processing technology and new photocathode process. It is equipped with autogating and has the characteristics of high all-weather reliability. Compared with NVT4, its sensitivity is increased to more than 800, and the SNR is greater than 25.
NVT7 FOM1800+ image intensifier tube uses the latest S25R photocathode manufacturing technology. The photocathode sensitivity is higher than 1000μA/lm@2856K, and it has high sensitivity in the near-infrared band. The spectral range is from 380nm to 1100nm, with higher spectral sensitivity in the near-infrared band, capable of imaging 1064nm lasers with halo reduced to less than 0.7mm.
SPECIFICATIONS OF Gen2+ IMAGE INTENSIFIER TUBE
FOM
1400+
1600+
1800+
2000+
Sensitivity (μA/lm)
700+
750+/850+
1000+
1000+
SNR
23+
25+
28+
28+
Resolution(lp/mm)
64+
64+
64-72
64-72
Photo Cathode
S25+
S25+
S25R
S25R
Operating voltage (V)
2.2-3.4
2.2-3.4
2.2-3.4
2.2-3.4
Operating current (mA)
15
25
25
25
Luminance gain (cd/m²/lx)
8000-12000
9000-12000
10000-20000
10000-20000
Maximum output brightness (cd/m²)
4~8
4~8
4~10
4~10
EBI (μlx)
≤0.25
≤0.25
≤0.25
≤0.25
Working illumination range (lx)
/
1×10–⁶~5×10⁴
1×10–⁶~5×10⁴
1×10–⁶~5×10⁴
Uniformity of luminance(2856K)
3:01
3:01
3:01
3:01
Cathode effective diameter (mm)
≥17.5
≥17.5
≥17.5
≥17.5
Power supply
Non Auto-gate/Auto-gate
Non Auto-gate/Auto-gate
Auto-gate
Auto-gate
Fluorescent powder
P22/P43/P45
P43/P45
P43/P45
P43/P45
Weight (g)
≤80
≤80
≤80
≤80
Power dissipation (mW)
33-51
55-85
55-85
55-85
