Product introduction

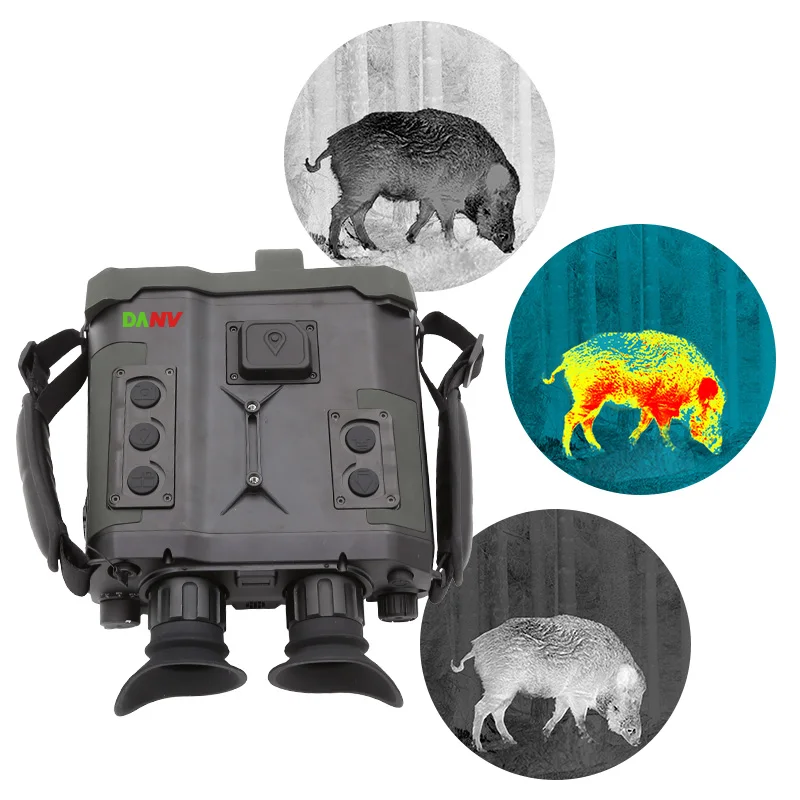

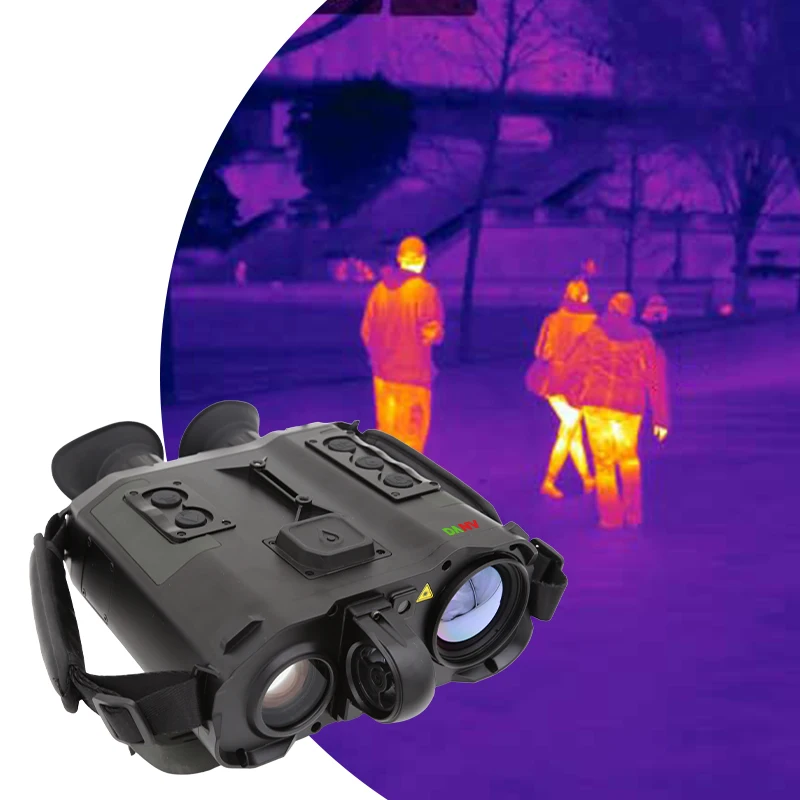

The DA-IR-36 sniper auxiliary training system integrates thermal imaging and visible light imaging functions. It is an intelligent observation system that can observe and collect shooting-related meteorological data in real time and perform ballistic calculations to assist shooting. This product can also be used as general reconnaissance equipment, used to go out to observe the battlefield day and night, and identify targets such as personnel, vehicles, terrain, etc., which can assist observation and improve shooting effects.
Main parameters
| Infrared thermal imaging | Resolution: | 640*512 | |||||
| Pixel spacing: | 12μm | ||||||
| Field of view: | 8.70°*7.00° | ||||||
| Visible light | Resolution: | 1920*1080 | |||||
| Target size: | 1/2.8 inches | ||||||
| Field of view: | Continuous zoom 4.7°*3.7°~45°*36° | ||||||
| Laser Ranging | Laser band: | 1535nm | |||||
| Measuring range: | 30m-3Km (vehicle) | ||||||
| Positioning components | Positioning type: | Beidou multi-band | |||||
| Electronic compass | Azimuth measurement accuracy: | 0.5° (RMS) | |||||
| Pitch angle accuracy: | 0.3° (RMS) | ||||||
| Intelligent automatic correction of magnetic declination | Can automatically identify the magnetic declination angle of the machine's location (anywhere in the world) without manual correction. | ||||||
| Ballistic calculation | Ballistic entry: | Support custom entry | |||||
| Ballistic storage quantity: | 10 groups | ||||||
| Windage accuracy: | 0.5Mil | ||||||
| Shooting angle accuracy: | 0.5Mil | ||||||
| Weather sensor | Temperature range: | -40℃～+60℃ | |||||
| Humidity range: | 0%RH～100%RH | ||||||
| Air pressure range: | 200hPa～1100hPa | ||||||
| Wind speed range: | -25m/s~+25m/s ("+/-" indicates wind direction) Working hours | ||||||
| Length of work | Continuous working time: | ≥5 hours External interface | |||||
| DC /USB/PAL/RS232 | |||||||

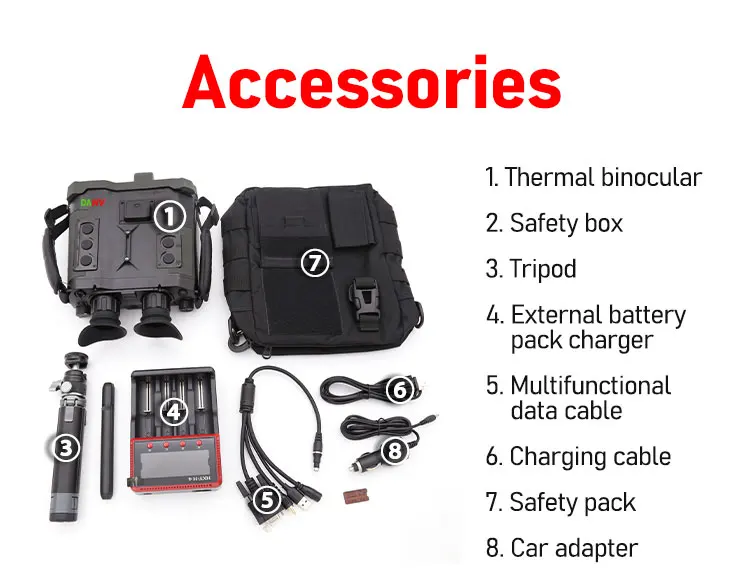

packing list
