IRST410 Infrared Search And Tracking Device
WhatsApp/ Wechat: 0086-18291418396
Applications:
It can be applied to the search, observation (detection) and targeting of sea or air targets, and can provide data such as target slant distance, azimuth angle, pitch angle, etc. for fire control solution; in addition, it has a wide range of applications in civil and paramilitary fields, and can be used for forest fire prevention, sea search and rescue, etc.
Functions:
Full airspace automatic search and alert

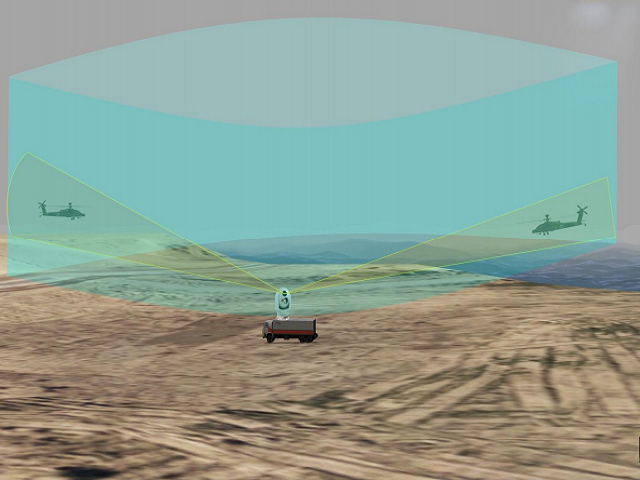

●Using the perimetric imaging capability, it scans the covered airspace (0°-70°), automatically searches for multiple (20 batches) suspect targets, and gives the target trajectory to provide the fire control system with target bearing and elevation information.
with target Single-target precision tracking and multi-target detection
●In the search mode, multiple targets can be detected; if the target is confirmed by the higher-level system, the single target can be automatically tracked and the target can be laser-ranged to provide the target location information to the fire control system.
Search/Tracking Quick Switch
●The device can quickly switch between automatic search and tracking states within 0.5s-1.5s.
Laser distance measurement
●In the target tracking mode, the target can be continuously, ranged at 1 Hz or 5 Hz.
3D coordinate and track measurement of individual targets
●The image information of a single target can be decomposed to obtain the orientation and elevation information of the target, and the distance information of laser ranging and the position information of the device can be integrated to obtain the complete position information of the target and its motion trajectory.

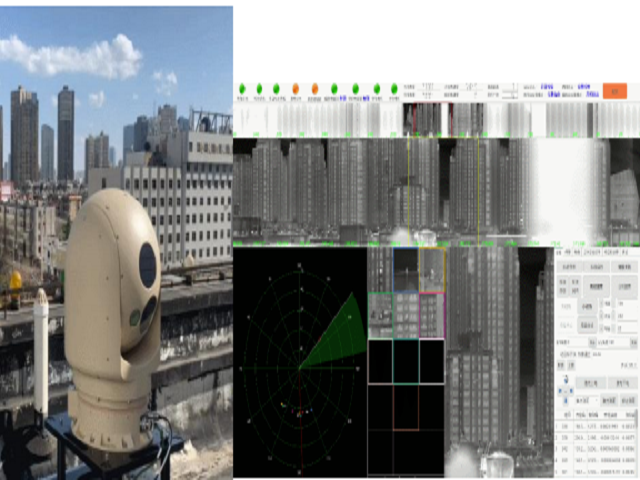

Panoramic infrared gaze imaging and target extraction
●In the surrounding search mode, panoramic infrared imaging can be realized, and target information in the panoramic scene can be automatically extracted.
Automatic function detection and fault diagnosis locating capability
●The equipment has the ability of self-testing and self-checking of each group of components, and can perform rapid fault location.

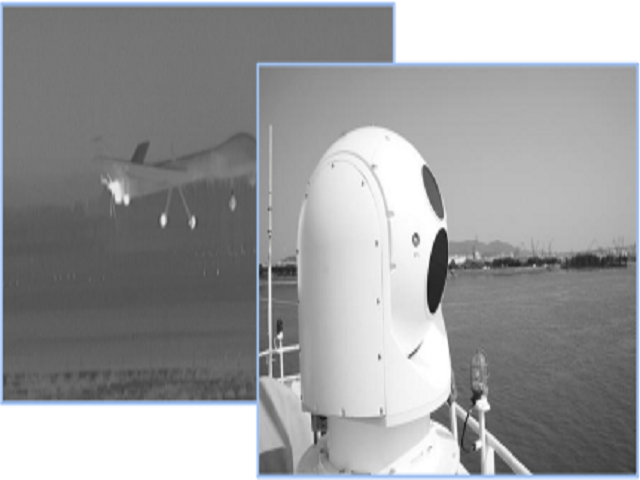

Photoelectric search tracking turret
●It adopts medium-wave digital high frame frequency flyback thermal imager, which has high search efficiency, and can achieve a search speed of up to 90rpm (540°/s), and can cover 360°×7° (0.6s) airspace in a short time. High early warning efficiency. It has an integrated search and tracking mechanism, which can realize the positioning and orientation of key targets and guide the precise strike of other weapons and equipment.
