DA-SM567-3/6 Thermal Imaging Module
WhatsApp/ Wechat: 0086-18291418396
DA-SM567-3/6 Gen2 thermal module is the smallest thermal imaging module in the world.
DA-SM567-3/6 adopts the latest Gen2 384x288px/640*480@17umFPA uncooled detector.
DA-SM567-3/6 can provide clearer picture and customized connection interface, they will bring
great success to your system integration.

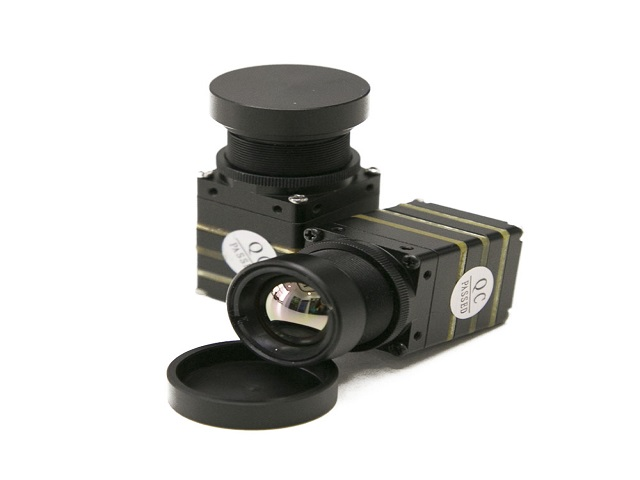

DA-SM567-3/6 thermal module smallest in size,lightest in weight,module excluding lens only 12g Interface of mini thermal imaging core.The interface can be customized, USB/RJ45/HDMI/Camera Link,etc.Different lens can be customized and the image color mode is optional according to your needs.Its lightweight and flexible features with various industry standard interfaces make it beneficial to OEM customers for secondary development and integration in all kinds of infrared thermal cameras.
Technical Parameters
| Type | Uncooled Asi FPA Detector | |
| FPA Formal/ Pixel Pitch | 384*288px@ 17μm | 640*480px @ 17μ |
| Sentivity | NETD＜30mk @ f/1.0 300k | |
| Frame Rate | 50Hz | |
| Spectral Range | 8~14μm | |
| Image Processing | ||
| Non-unifromity Correction | Self-adaption Calibration | |
| Time to Image | ＜3s | |
| Image Enhancement | DDE | |
| Image Display Resolution | 640*480px | |
| Frame Rate | 50Hz | |

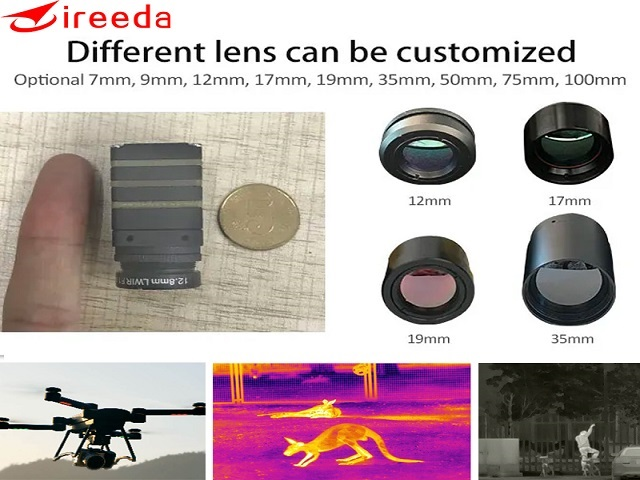

| Lens | Optical 12mm, 19mm, 35 mm, 40 mm, 50 mm, 75 mm, 100 mm | |
| Dispaly Control | ||

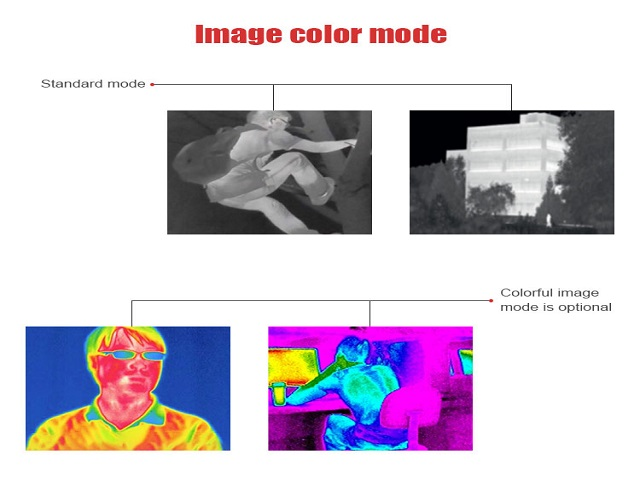

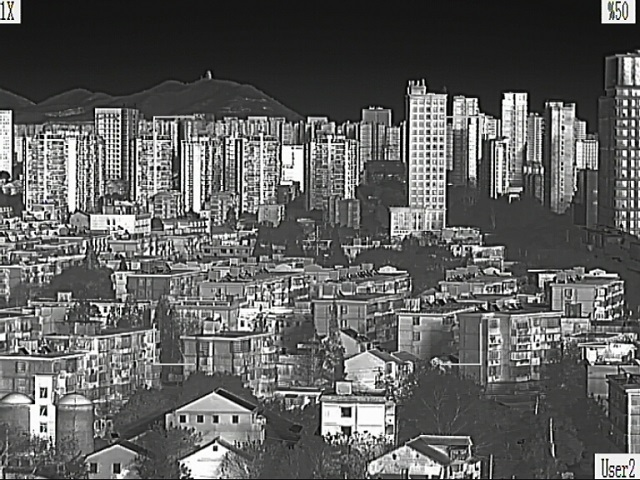

| Modes | White hot; Black hot; (Optical colorful) | |
| Image Zoom | x2, x4 digital zoom | |
| Brightness | Auto/Manual | |
| Contrast | Auto/Manual | |
| Image Reversal | Horizontal/Vertical | |
| Crosshair | One or more | |
| Analogue Video | Yes | |
| Power | ||
| Operation Voltage Range | DC: +2.5V~+5.5V | |
| Typical | DC 3.7V | |
| Power Consumption | ＜0.9 W | |
| Reverse Protection | Yes | |
| Over/Under Voltage Protection | Yes | |
| Environment Parameters | ||
| Operation Temperature Range | Commercial: -20℃~+60℃; Special Purpose: -40℃~+60℃ | |
| Storage Temperature Range | -45℃~+65℃ | |
| Humidity | 5%~95% non-condensing | |
| Anti-vibration and Shock | GJB 150-16 2.3.1; GJB 150-18 T7 100g/6ms | |
| Temperature Shock | -5℃/min (-40℃~+60℃) | |
| Physical Attributes | ||

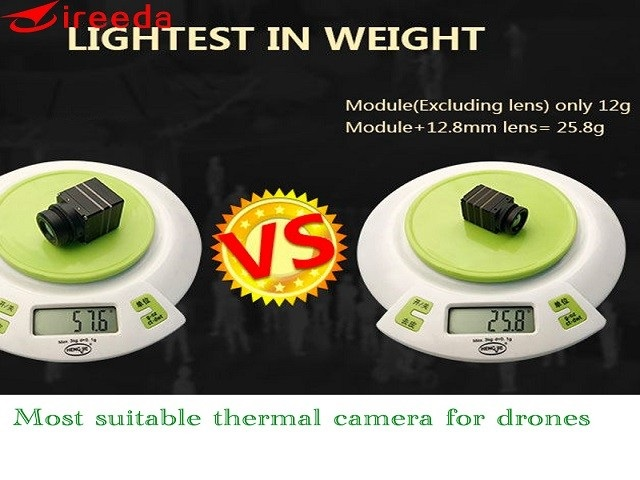

| Weight (excludes lens) | 12g | 33g |
| Module Size | 20*20 mm (only PCB) | 24*24 mm (only PCB) |
| External Power Supply | Yes | |
| Keyboard | Yes | |
| Digital Video Output | 14 Bit (50Hz) / BT.656 (customized) | |
| Communication | RS232 or RS485 | |
Application:
Because the infrared thermal imager is imaged by collecting the infrared radiation energy of the target, it can work normally in the day or at night. In the harsh rain and snow weather environment, the infrared wavelength can also be used to observe the thermal imager. For hidden targets, because the infrared thermal imager is not detected by light, it will achieve the purpose of identifying camouflage.
Although our impression of infrared thermal imager generally stays on body temperature detection, infrared thermal imager has many applications in other fields, such as remote detection and inspection of high-altitude pollution sources and volatile organic compounds emissions of chemical enterprises. Infrared thermal imager can provide temperature measurement and thermal state analysis, which facilitates remote and non-contact on-site law enforcement inspection for law enforcement personnel. For example, in the medical field, the infrared thermal imager can collect the infrared radiation of the human body through the thermal imaging diagnostic system, and finally convert it into images of different colors, so as to reflect the nature, degree, and scope of pain.
Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for DA thermal modules’ series to be integrated into more terminal products and greatly reduces the cost for customers.
