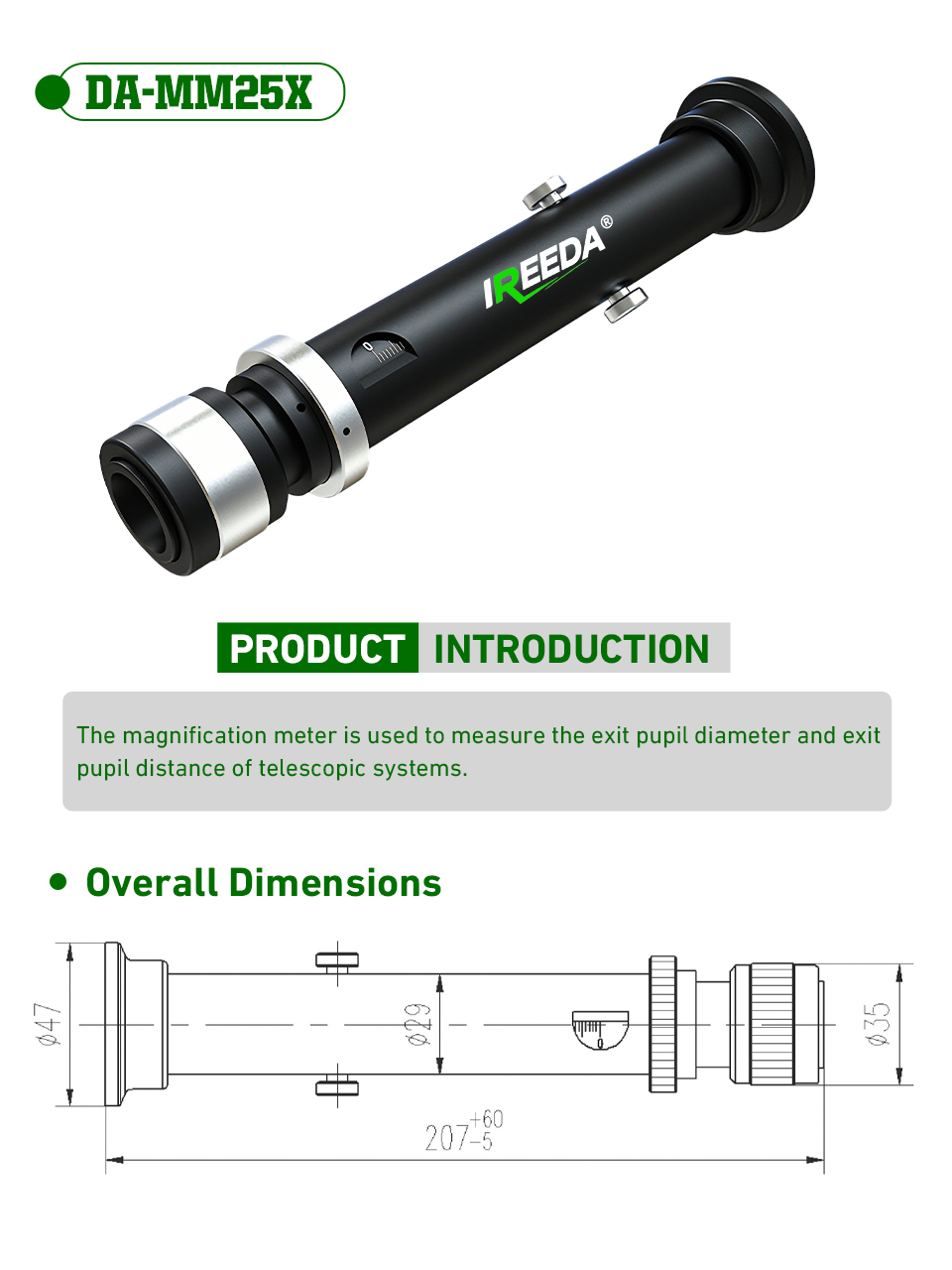

Product Technical Parameters

Objective Focal Length	40mm
Eyepiece Magnification	12.5X
Reticle Scale Range	0-10mm
Reticle Scale Value	0.05mm
Exit Pupil Diameter	3.3mm
Magnification	25X
Objective Axial Magnification	2X
Eyepiece Diopter Adjustment Range	±5 SD
Tube Scale Range	0-60mm
Exit Pupil Distance	20mm

---
