Product Introduction

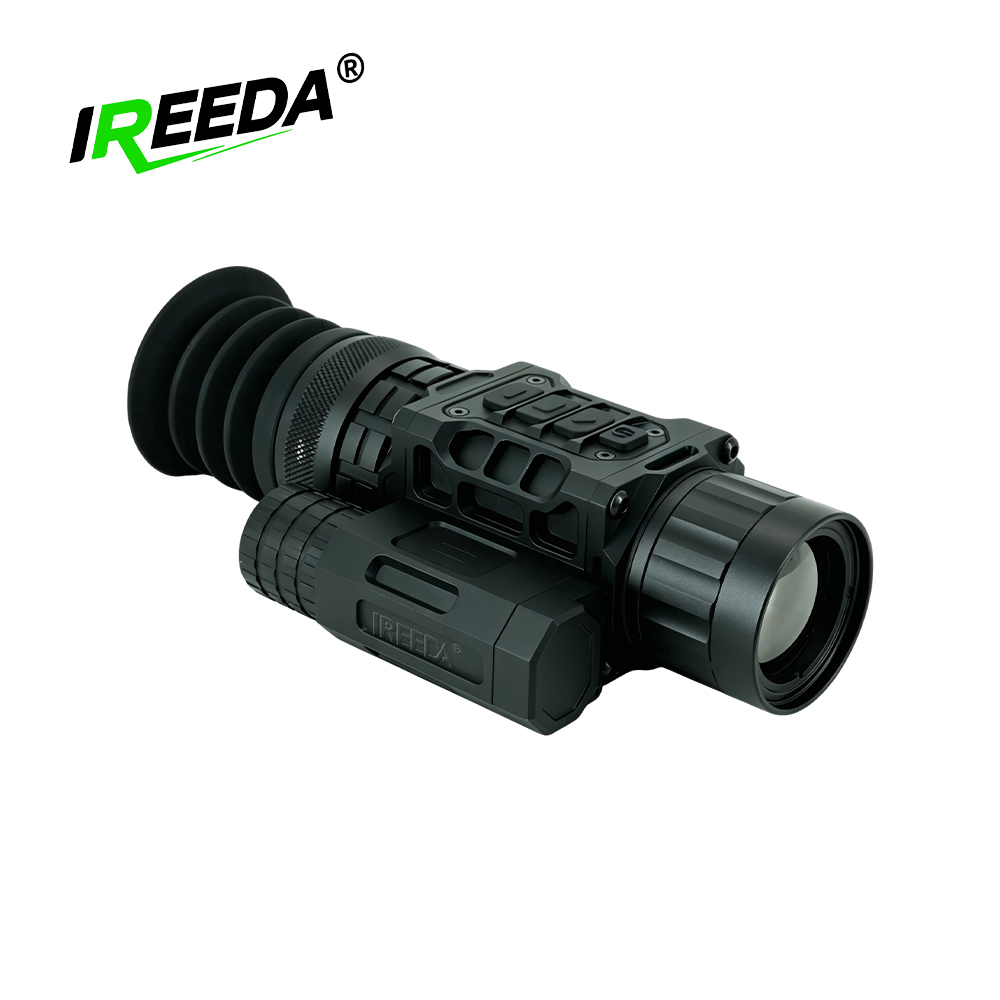

DA-C625 clip-on thermal scope is lightweight and mountable on most firearms, working in tandem withdaytime optical scopes. Equipped with a high-sensitive Vox detector, fast startup and vivid OLED display, it withstands 1200G shock to deliver stable all-day aiming and reconnaissance.

Product Features

High-definition OLED display with rich colors and delicate imaging performance

Excellent shock resistance, capable of withstanding 1200G impact

Specification

Model	DA-C625 Clip-on thermal sight
Detector type	Uncooled Vanadium oxide
Working band	8～14μm
Pixel pitch	12μm
Resolution	640*512
MRTD	550mk
Display resolution	1024*768
Objective focal length	25mmF1.0
FOV	17.5*14°
Focus Distance	10m

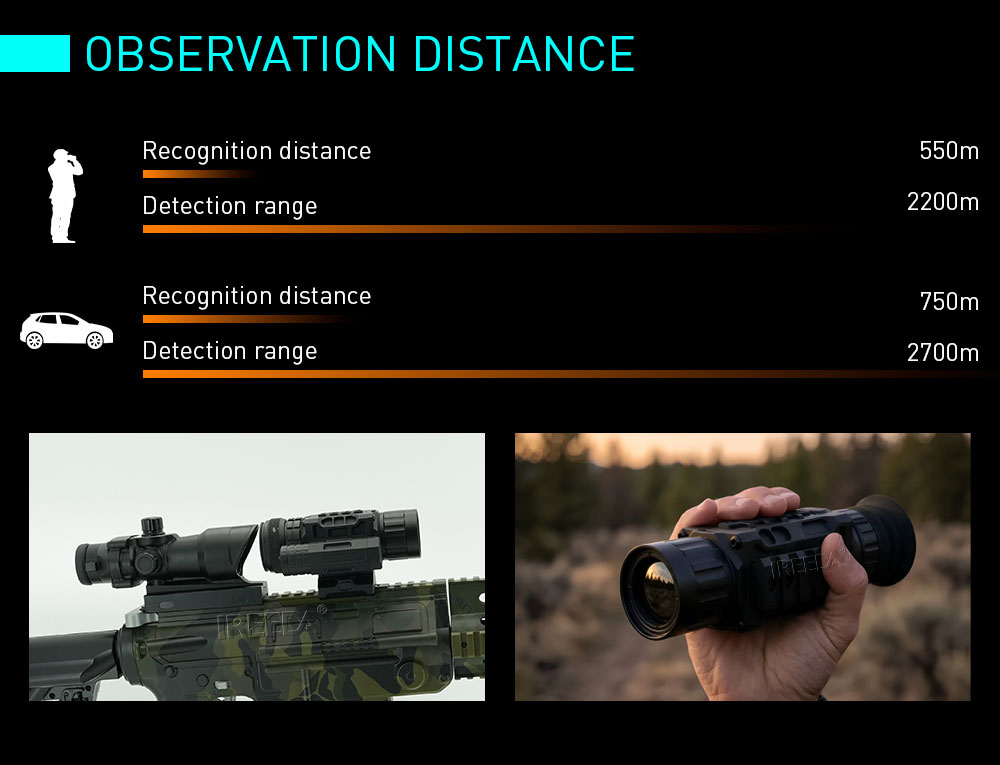

Detection Distance for Vehicle	2700m
Recognition distance for vehicle	750m
Detection Distance for person	2200m
Recognition distance for person	550m
Eyepiece Magnification	14x
Eyepiece Diopter Adjustment	±3D
Exit pupil distance	45mm
Cross Cursor Division Style	4

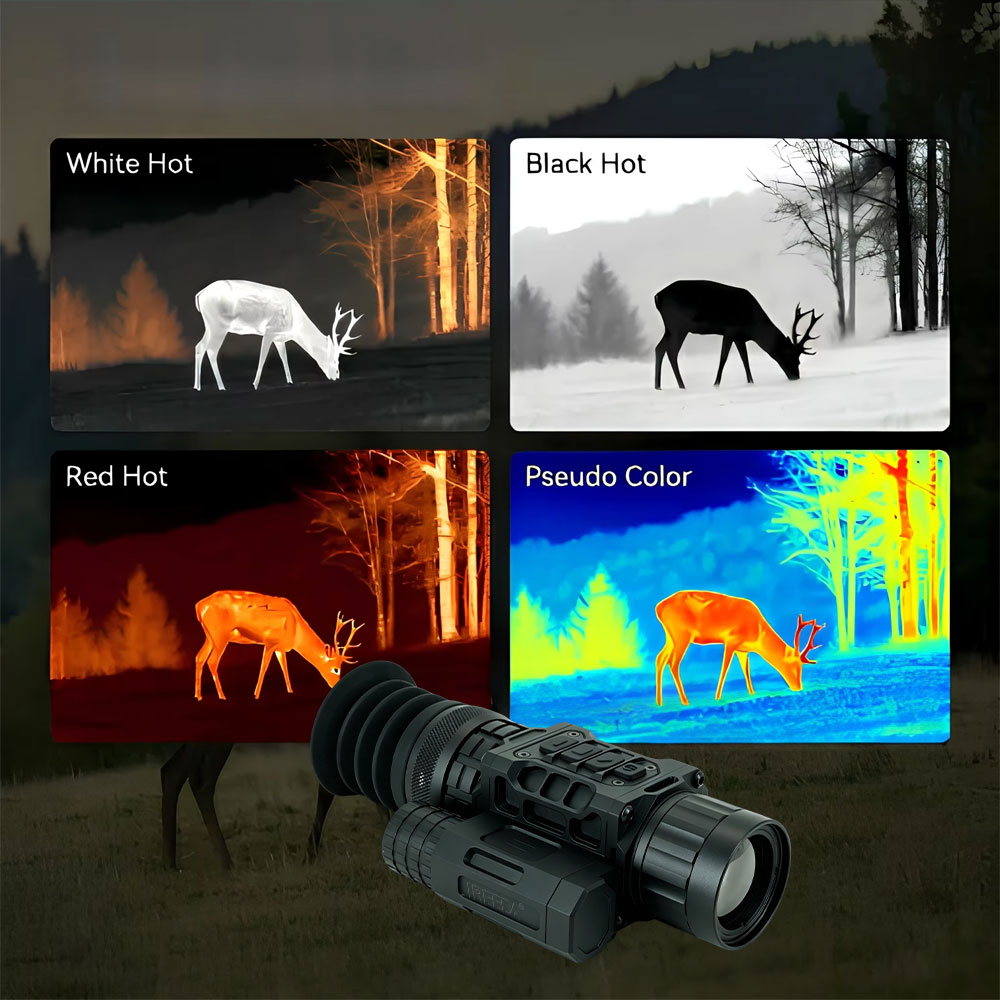

Image Mode	white heat; black heat; red heat; metal
Electronic zoom	1x/2x/4x/8x
Battery type	Lithium battery 18650
Continuous Working Time	7 hours
External video output	PAL analog video
Working temperature	-40~+55℃
Weight	448g(excluding battery)
Dimensions	170x80x70mm
Optional interface	helmet bracket
Impact resistance	1200G

---
