Technical Parameters
|

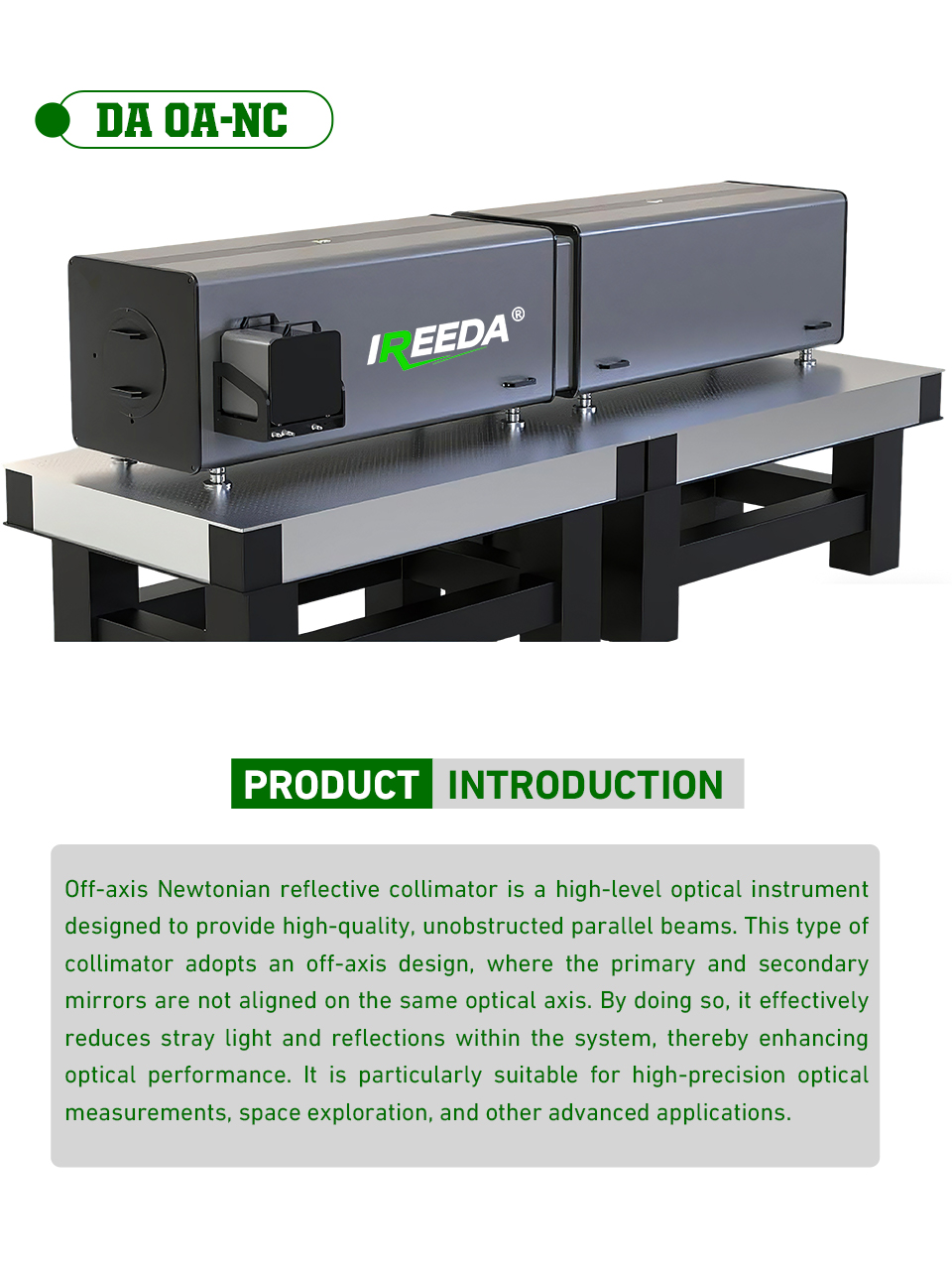

IREEDA Off-axis Newtonian Reflective Collimator |
|||
|
Structural form |
Off-axis structure |
||
|
Focal length |
500mm | 1000mm | 1200mm |
|
Caliber |
ф100mm |
ф100mm ф150mm ф200mm |
ф100mm |
|
FOV |
≥3.2° |
≥1.6° |
≥1.33 |
|
Main lens material |
Standard configuration: Quartz Optional: Microcrystalline |
||
|
Reflectivity |
Single lens reflectivity ≥ 85% |
||
|
Systematic wave aberration |
RMS better than 1/15 entry @ 632.8 |
||
|
Parallelism |
≤5'' |
||
|
Operating band |
Ultraviolet-visible wavelength band, visible-infrared wavelength band |
||
|
Focal length optional:1500mm/2000mm/3000mm/5000m |
|||
|
Product Configuration Components |
|
|
Collimator |
|
|
Framed filters |
|
|
Framed attenuators |
|
|
Framed reticles (visible light band) |
|
|
DC regulated power supplies |
|
|
Halogen light sources |
|
|
Optional components: |
|
|
Framed reticles (infrared band) |
Customize the divider board according to different testing requirements. |
|
Blackbody |
Choose either planar blackbody or differential blackbody based on the testing needs. |
|
Optical platform |
Customize according to the product size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
