IREEDA Optical Bench ZYGJ-1010 for Optical Measuring

ZYGJ-1010： All-in-One Optical Test Platform, Precision. Versatility. Efficiency.

Overview

IREEDA ZYGJ-1010 integrates superior imaging with intuitive operation, serving as the complete solution for optical measurement. It streamlines complex testing for components and systems, enabling comprehensive analysis through a single platform.

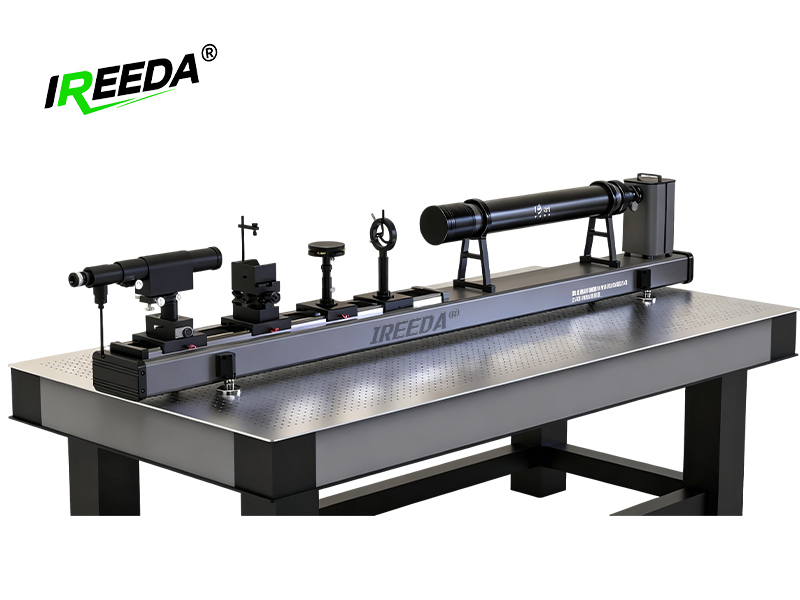

IREEDA ZYGJ-1010

Optical bench

External dimensions

Core Capabilities:

Focal Length: Measures objective focal length via the Boro method or direct intercept.
Resolution: Evaluates resolving power of objectives and prisms using test targets.
Image Quality: Diagnoses lens and prism performance with the star-point method.
Aberration & Parallax: Measures flat glass parallax and prism deviations using an autocollimating telescope.
System Parameters: Characterizes telescopic systems, including magnification, exit pupil, and eye relief.

Technical Parameter:

IREEDA Optical Bench ZYGJ-1010
Optical system	Transmissive
Focal length	1000mm
Effective aperture	Φ100mm
Field of view	≥1°36′
Resolution	≤1.8″
Parallel light divergence angle	≤10″
Wavelength band	380-780nm
Weight	126KG

Product Accessories Including:

Name	Quantity	Units	Detailed information
Collimator	1	set	ZYP-1010
Reading microscope	1	set	Product model:DXJ-1
Reading microscope accessories	1	set	Eyepiece:10^X Micrometer eyepiece:15^X Objective lens:1^X/4^X/10^X
Adjustable platform	1	set	Product model:KTP-1
Lens holder	1	set	Product model:TJQ-1
Rotating telescope	1	set	Product model:ZQJ-20A
Base with guide rail	1	set	Rail length 1200mm
Filter lens	2	piece	Green(Central wavelength 532nm) Orange(Central wavelength 600nm)
Attenuating lens	1	piece	Neutral attenuation lens(430-730nm)
Target plate（Applies to visible light bands）	11	piece	Cruciform target plate Resolution target plate：1#/2#/3#/4# Starpoint target plate：0.1/0.2/0.01/0.02/0.05
Power supply	1	set	Product model:KFD-6 Used for telescopes
DC POWER SUPPLY	1	set	Output voltage:0-30V Output current:0-5A
Light source component	1	set	Model：ZYG-225 12V30W Halogen light source
