Overview
The Visible Light Imaging Quality Comprehensive Testing System consists of hardware such as collimators, electric target components, integrating sphere light sources, and multi-dimensional turntables, combined with image analysis software. It can objectively evaluate the relevant performance of various visible light telescope systems as a whole.
Product function
It is used for comprehensive testing of visible light telescope systems and can meet the following parameter tests:
- Resolution
- Modulation Transfer Function (MTF)
- Minimum Resolvable Contrast (MRC)
- Focal Length
- Distortion
- Optical Axis
- Field of View (FOV)
- Non-uniformity
- Bad Pixel

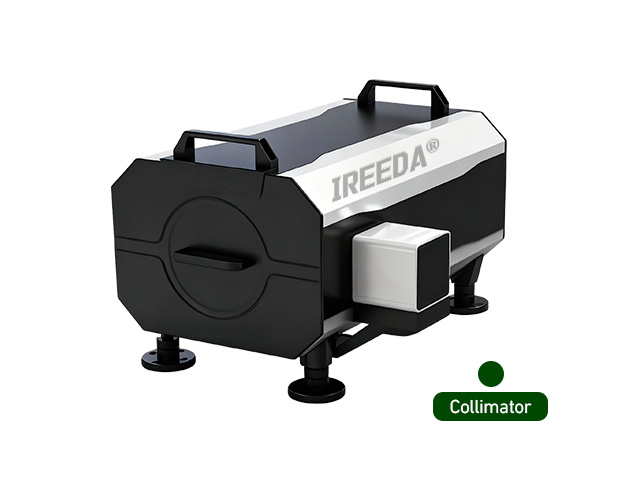

1 Collimator
- Off-axis Newtonian Reflective Optical System
- Focal Length: F500mm~F6000mm
- Aperture: D100mm~D600mm
- Metallic Silver Film + Protective Film
- RMS λ/15@λ=632.8nm
|
|
ZYP-0510LX |
ZYP-1630LX |
ZYP-2030LX |
|
Focal Length |
500mm |
1600mm |
2000mm |
|
Aperture |
100mm |
300mm |
|
|
Field of View |
≥3° |
≥1° |
≥0.8° |
|
Optical System Type |
Off-axis Newtonian Reflective |
||
|
Coating |
Metallic Silver Film + Protective Film |
||
|
Applicable Spectral Range |
0.4-14μm |
||
|
System Wavefront Error |
RMS Better than 1/15λ@632.8 |
||

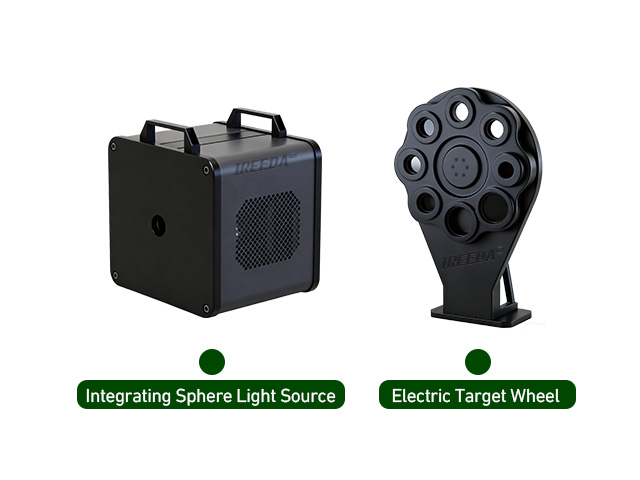

2 Integrating Sphere Light Source
- Wavelength Range Covers Visible Light and Near-infrared
- 2856K Standard Color Temperature Meets Low-light Testing
- Color Temperature Adjustable / Brightness Adjustable
- Uniformity Greater than 98%
|
Aperture |
50mm |
|
Inner Diameter of Integrating Sphere |
150mm |
|
Uniformity of Light Emission from Integrating Sphere |
＞98% |
|
Light Source Type |
Halogen Lamp/LED |
|
Spectral Range |
400nm-2500nm |
|
Color Temperature |
2856K |
|
Illuminance Range of Halogen Lamp |
30-3000lux |
|
Color Temperature of LED |
6500k |
|
Illuminance Range of LED |
30-3000lux |
|
Laser Channel |
Reserved SMA905 Fiber Interface |
3 Electric Target Wheel
- High-precision Servo Motor
- 8, 12-hole target positions (optional as needed)
- Positioning Accuracy: Not more than 0.01°
- Convenient Replacement
- Provide Various Targets According to Testing Requirements
|
Target Position |
8/12 |
|
Control Method |
Digital Electric |
|
Position Repeatability |
Not more than 0.01° |
|
Targets |
Distortion Target, Cross Target, Circular Hole Target, Resolution Target, MRC Target |
