Overview

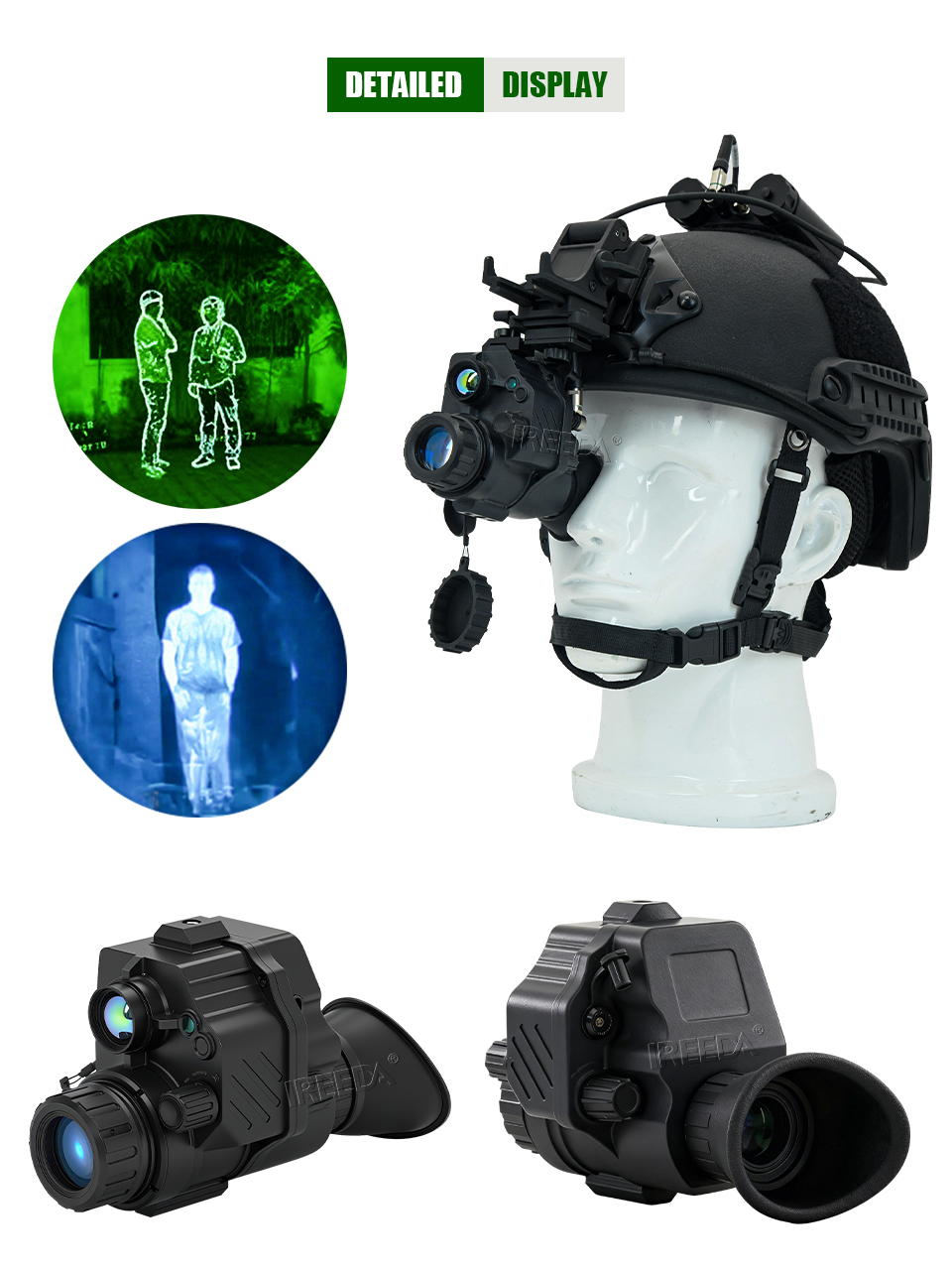

DA F-PVS14 is a fused night vision thermal monocular, which combines IIT and thermal technology. It can be used for observation and target search in extremely dark environment, night, raining, and other bad weather and adverse confitions, enable to recognize the potential risks and camouflage,it can be used by handheld,helmet mounted and equipped with your devices.
Product features-fusion PVS14

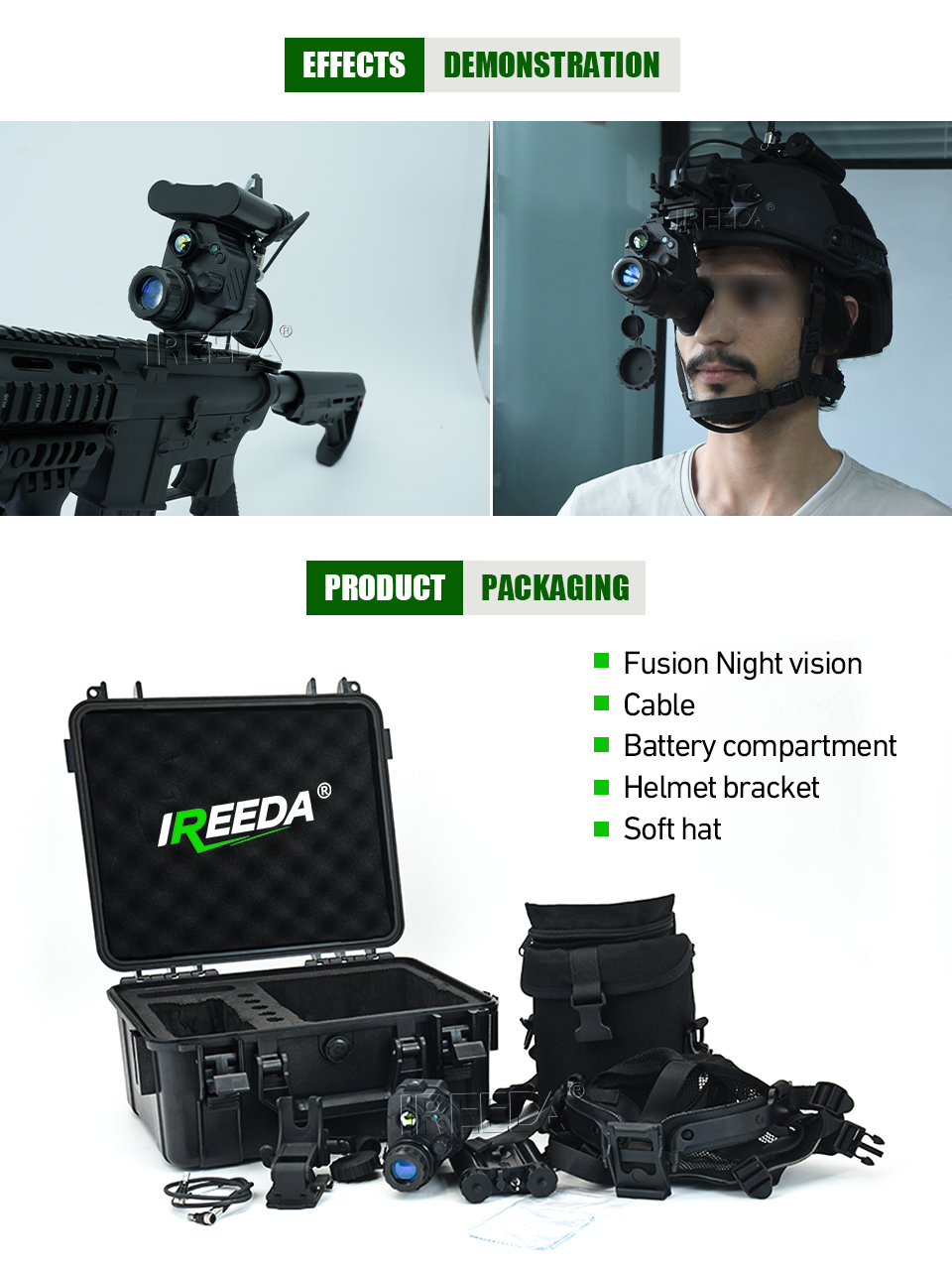

- Multipurpose: handheld, helmet support, head support
- Waterproof, dust-resistance, anti-corrosion
- Small in size, and light in weight
- High definition
Specification
| Night vision | |
|
Magnification
|
1x |
|
FOV
|
40 °
|
|
Focus range
|
250mm~∞ (Manual)
|
|
Exit pupil diameter
|
7mm
|
|
Exit pupil distance
|
20mm
|
|
Vision adjustment range
|
-4～+2
|
|
Manual gain
|
optional
|
|
Image Intensifier Tube
|
Gen2+/Gen3 optional
|
| Infrared Thermal | |
|
Magnification
|
1x |
|
FOV
|
24×18 °
|
|
Focus range
|
500mm~∞ (Manual)
|
|
Detector type
|
640×512px 12um
|
|
Display resolution
|
≥1024x768
|
|
Function Adjustment
|
Brightness adjustment,Contrast adjustment
|
