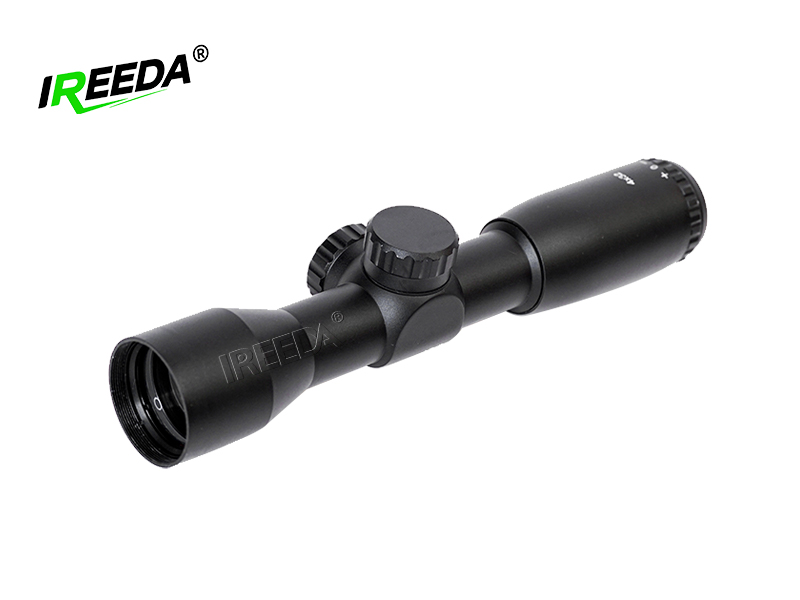

Rifle 4x32 Sight Description
IREEDA Rifle 4x32 Sight is mainly used for aiming and shooting within 300 meters and observation of the battlefield. All optical components of the product are coated with anti-reflection coating,which greatly improves the transmittance of the system. The product is anti-vibration, filled with nitrogen, waterproof, shock resistance and anti-fog, with adjustable visibility, integrated tube.
Feactures
- The product adopts "quick focus" technology to quickly identify the target and reticle.
-
The reticle pattern is clear, which can be used for probabilistic ranging and battlefield observation.
- All optical components of the product are coated with anti-reflection coating, which greatly improves the transmittance of the system.
- The eyepiece and objective lens have a flip-up lens cover, which is convenient to protect the lens surface.
-
Shock resistance can reach 800G.
|
Magnification
|
4X
|
| Clear aperture (mm) |
32
|
| Eyepiece Field of view | 23 |
|
Eye relief
|
96 |
|
Tube Diameter(mm)
|
25.4mm
|
|
Standard Klick value for E/W (MOA)
|
0.5 |
|
Total travel elevation (@ 100 yds)
|
≥ 60MOA
|
|
Total travel windage (@ 100 yds)
|
≥ 60MOA
|
|
Parallax Compensation
|
50 yds
|
|
Fast focus eyepiece
|
yes
|
|
Sealing gas used
|
Nitrogen
|
|
Clear aperture min magnification (mm)
|
28.5 |
|
Clear aperture max magnification (mm)
|
32 |
|
Eff. exit pupil diameter @ min. magnification ± 3 %
|
ON
|
|
Eff. exit pupil diameter @ max. magnification ± 3 %
|
8.00 |
|
Maximum resolution in Arc. Second (min. Magnification)
|
6 |
|
Maximum resolution in Arc. Second (max. Magnification)
|
6 |
|
Range of Function temperature (Unit can still be operated)
|
-25°C/+55°C
|
|
Storage temperature
|
-40C to +85C
|
|
Range of Dioptric compensation +/- dpt
|
2 |
|
Permissible backlash Dioptric Compensation
|
<0.25dpt
|
|
objective field of view @ min magnification (ft @100yds)
|
ON
|
| objective field of view @ max magnification (ft@100yds) | 31.8 |
|
Change of impact point after change of magnification (MOA)
|
1 |
|
Straightening of the Reticle
|
± 2 °
|
|
Coating
|
FMC
|
