Specification
| Product name |

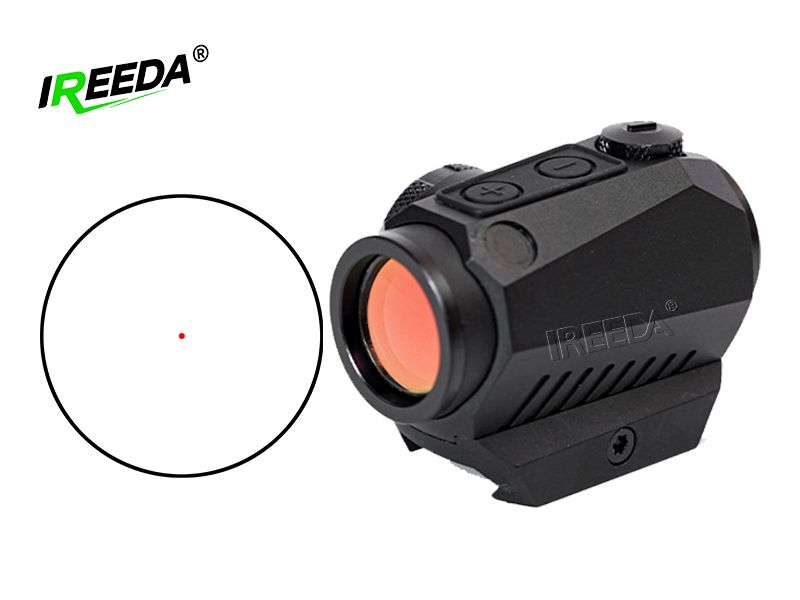

RS20 Red Dot Sight
|
|
Red dot size
|
2MOA
|
|
Magnification
|
1x |
| FOV | 11° |
|
Brightness level
|
8 levels daytime, 2 levels night vision
|
|
Objective diameter
|
20mm
|
|
Click adjustment accuracy
|
0.5MOA
|
|
Adjustment range
|
±40 MOA
|
|
Material
|
Aviation aluminum
|
|
Weight
|
150g
|
|
Battery type
|
CR2032
|
|
Waterproof
|
IP67
|
Product Usage
Power on: Press key "+" to power on the product.
Brightness adjustment: Press the "+" key to increase the brightness and press the "-" key to decrease the brightness. Brightness level 8 during the day, 2 at night.
Power off: Long press key "-" to power off.
Zero correction: The user can adjust the height and wind deviation by test-shooting method, and the adjustment accuracy is 0.5MOA. Each turn of the adjusting screw is 12MOA, and there are 6 markers to divide each turn into 6 segments of 2MOA.
If the bullet landing point is low, turn the high and low adjustment counterclockwise (the direction of rotation of the "U" on the scope); Bullet landing point is high, rotate clockwise to adjust the height (the direction of rotation of "D" on the scope); If the bullet falls to the left, turn the wind offset counterclockwise (the direction of the "R" on the scope); If the bullet falls to the right, turn the wind offset clockwise (the direction of the "L" on the scope).
