PVS-1440 Monocular Night Vision Goggles



Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com



IREEDA PVS 1440


Overview

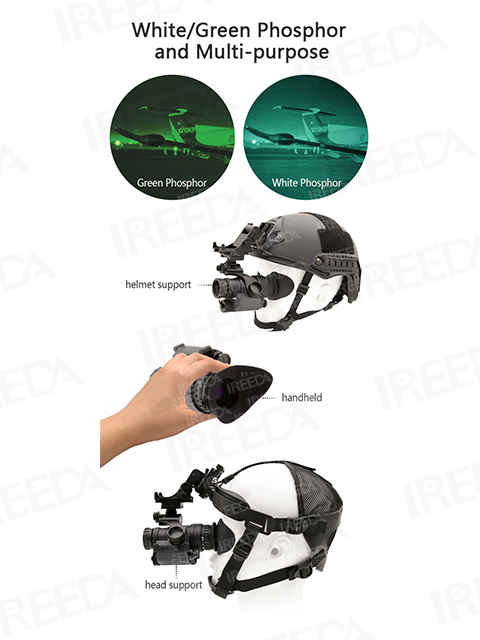

The PVS-14 monocular night vision is equipped with a Gen2+ image intensifier tube and features a built-in IR illuminator with bright source protection. With a wide field of view that enhances situational awareness, it boasts a compact and lightweight design, making it easy to carry and operate for extended periods. The device delivers sharp imaging in low-light environments and offers user-friendly controls for quick deployment. Additionally, its high cost-performance ratio makes it an excellent value. The PVS-14 can be used independently or integrated with tactical helmet systems, making it a versatile choice for military, law enforcement, and outdoor enthusiasts.

PVS-1440 Monocular Night Vision GogglesPVS-1440 Monocular Night Vision Goggles

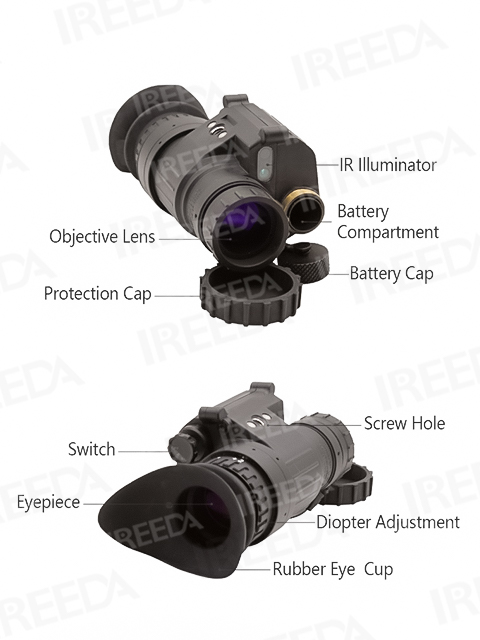

Product Features

Specification


Product
DA-PVS14
DA-PVS14 Manual Gain
Magnification
1X
FOV 40°
Eye relief distance
25mm
Eye relief diameter
14mm
Diopter
-6~+2 (-5,+5 can customize)
Lens system
25mm F#1.2
Eyepiece lens system
25mm
Focus range
250mm to infinity
Dimension
114*70*60mm
143*72*62mm
Weight
310g(with battery)
325(with battery)
Battery type
CR123
Duration time
30hours
IR Illuminator
yes
highlight protection function yes
IIT Classification
Gen2+/Gen3
Photocathode type
18mm S-25
Resolution typical
> 60 Lp/mm
Luminous gain
19000-30000 fl/fcd
Signal-to-noise ratio
>23
FOM
1600+
Operation temp
-20℃~50℃(Can customize -40℃~55℃)
Storage temp
-40℃~60℃
Protecion level
IP65(IP67 Optional)
Manual Gain
NO Yes
Auto-gating
Yes
