Overview

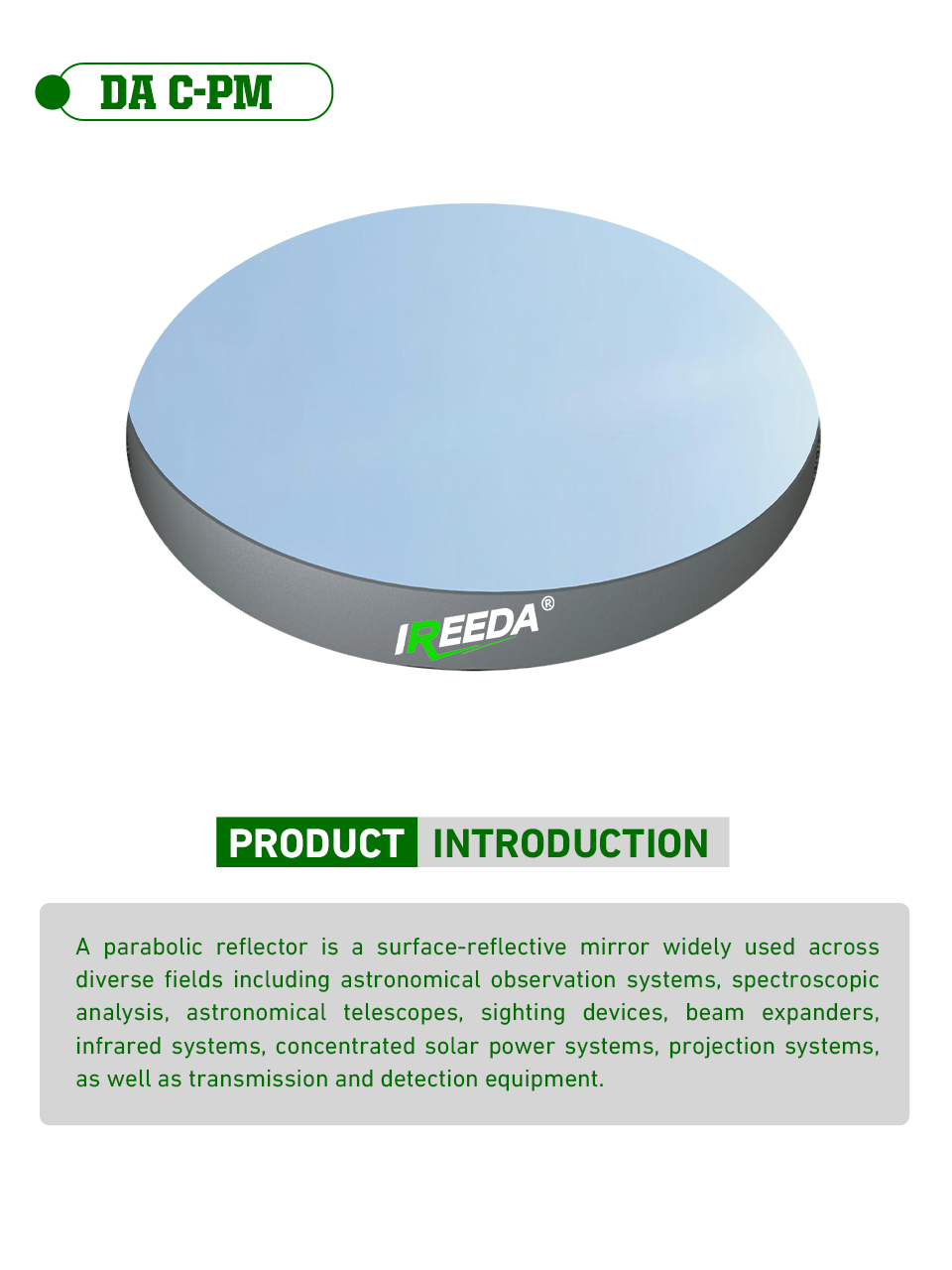

IREEDA coaxial parabolic mirror is a high-precision parabolic reflective optical system where the optical axis is perfectly aligned with the axis of symmetry of the parabolic mirror. Its reflective surface is a paraboloid of revolution, formed by rotating a parabola around its central axis.
Product Specification
|
Coaxial Parabolic Reflector |
||||
| No. |
Clear Aperture (mm) |
Focal Length(mm) |
Surface Figure Accuracy |
Coating |
| 1 | 200 | 800 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 2 | 200 | 1000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 3 | 200 | 1200 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 4 | 200 | 1600 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 5 | 200 | 2000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 6 | 300 | 2000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 7 | 350 | 3000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 8 | 400 | 4000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
| 9 | 500 | 5000 |
RMS Better than 入/30@632.8nm |
Available Coatings: Au, Ag, or Al |
