Overview
DA-PVS7 night vision goggles are engineered with a high-performance image intensifier tube, delivering exceptional clarity and reliability in low-light conditions. These PVS7 night vision goggles are designed to be lightweight yet durable, offering clear imaging and user-friendly operation for a variety of nighttime activities. With their high cost-effectiveness, the DA-PVS7 model allows for magnification changes by swapping the objective lens or attaching a multiplier lens. The goggles feature adjustable eye spacing to fit different users comfortably and come equipped with a built-in red reticle light, infrared illuminator, and automatic glare protection for enhanced visibility and eye safety. Ideal for tactical, surveillance, and outdoor use, DA-PVS7 NVGs provide a versatile and efficient night vision solution.
Features
- Excellent performance, simple operation, cost-effective
- Built-in infrared lighting, anti-glare protection
- Adopt high-performance image intensifier tube, the image is clear
- Multipurpose: handheld, helmet support, head support

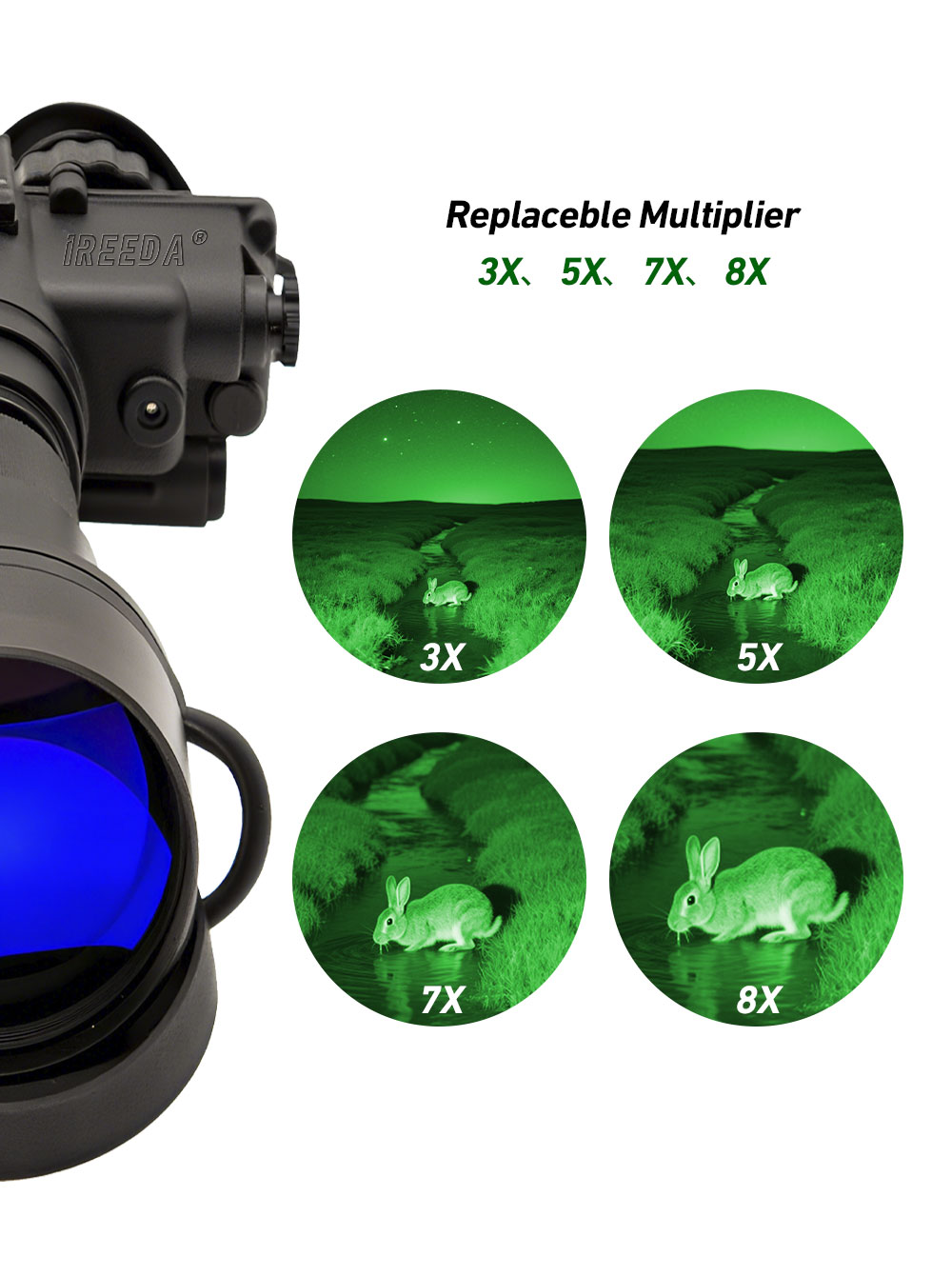

- The magnification can be changed by changing the objective lens
|
Product
|
DA-PVS7
|
|
Photocathode
|
18 mm S-25
|
|
Resolution
|
57- 64lp/mm
|
|
S/N
|
18-25dB
|
|
Luminous Sensitivity
|
500-900uA/lm
|
|
Magnification
|
1x
|
|
FOV
|
42°±3
|
|
Detection Sensitivity
|
250-300 m
|
|
Adjustable Range of Eye Distance
|
65±5
|
|
Diopter Range
|
-1 |
|
Lens System
|
25 mm, F/1.2
|
|
Coating
|
Multilayer broadband coating
|
|
Distance Range
|
0.25 m to infinty
|
|
BSP
|
Yes
|
|
Flip-up Of
|
Yes
|
|
Flip-down, on
|
Yes
|
|
Material
|
Aviation aluminum
|
|
MTTF
|
10000 hours
|
|
Power Supply
|
2.6-4.2V
|
|
Battery Type
|
AA battery*2/CR123A type battery*1
|
|
Infrared Auxiliary Light Source Wavelength
|
850 nm
|
|
Wavelength of Red Light Source
|
808 nm
|
|
Digital Video (optional)
|
Exit Power 5V 1W
|
|
Video Resolution (optional)
|
Video 1Vp-p SVGA
|
|
Battery Life
|
80 hours (IR OFF)
40 hours (IR ON)
|
|
Operating Temperature
|
-40°C~+50 °C
|
|
Relative Humidity
|
5%-98%
|
|
Environment Rating
|
IP65 (IP67 optional)
|
|
Weight (no battery)
|
<400g
|
|
Dimensions
|
130 mm *130 mm *56 mm
|
