Overview

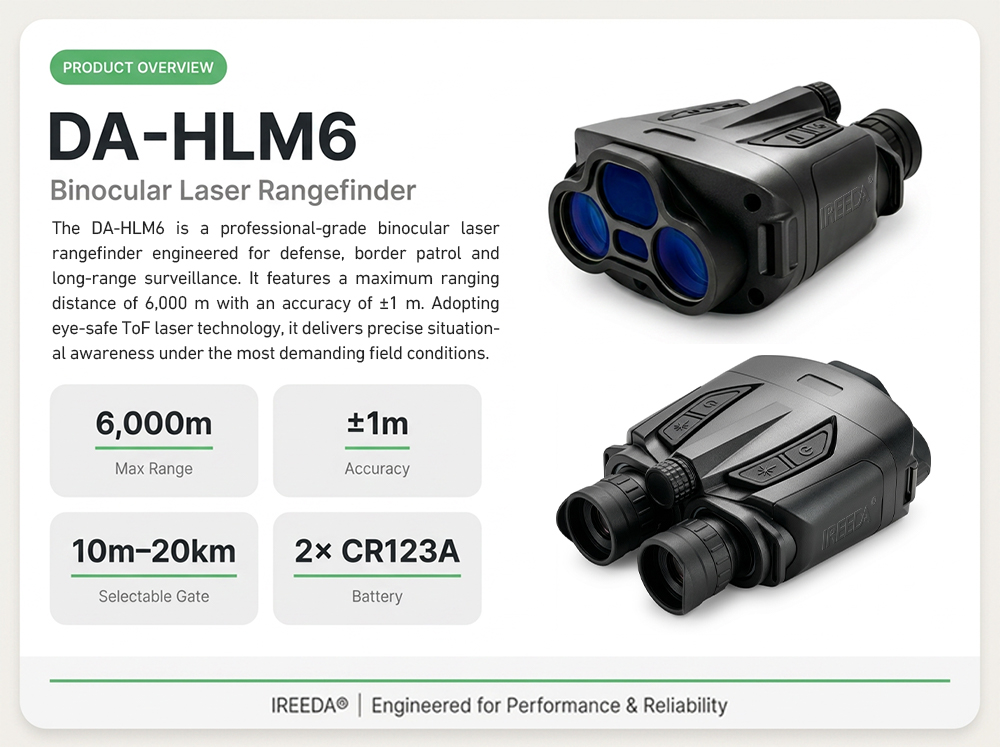

The DA-HLM6 is a professional-grade handheld binocular laser rangefinder module designed for long-range target acquisition in challenging environments. Utilizing advanced Pulse Time-of-Flight (ToF) technology and a 1535nm eye-safe laser, it delivers precise distance measurements up to 6km for vehicle-sized targets with ±1m accuracy. Its binocular design, combined with a built-in digital compass and inclinometer, makes it an essential tool for reconnaissance, border surveillance, and industrial surveying.
Highlights Areas
- 1535nm Eye-Safe Laser: Equipped with a Class 1 eye-safe laser (invisible to night vision devices), ensuring safety for both operators and targets while maintaining covertness in tactical operations.
- Long Range Acquisition: Capable of accurately ranging vehicle-sized targets (2.3m x 2.3m) up to 6,000 meters and large structures up to 10km+.
- Multi-Mode Intelligence: Features 10 built-in modes including A-B Ranging, Height Measurement, Scan/Reconnaissance (1Hz refresh), and Range Gating (Min/Max distance selection).
- Built-in Sensors: Integrated high-precision electronic compass (digital magnetic) and inclinometer (accelerometer/gyro) for real-time azimuth and vertical angle data.
- Rugged Binocular Design: IP67-rated waterproof and dustproof housing with diopter and interpupillary distance adjustment, providing a comfortable and clear 3D field of view.
- Extended Connectivity: Supports Type-C data transfer and RS232/TTL external communication via a 'mouse-tail' cable for system integration with gimbals or UAV ground stations.
Specification for Laser Rangefinders Binoculars
|
Model |
DA-HLM6 |
| Laser Wavelength | 1535nm |
| Detaction Range | 6km (vehicle) |
| Accuracy |
± 1 m |
| Measurement Rate | 1Hz |
| Digital Compass |
Magnetic & Gyro Calibration |
| Inclinometer |
Height & Angle Measurement |
|
Diopter Adjustment |
Independent Left/Right Adjustment |
|
Interpupillary Adjustment |
Dual-eye field fusion |
| Interface |
Type-C / Tail-wire (RS232/TTL) / Tripod Mount |
| Power supply |
2x CR123A Lithium Batteries |
|
Working Temperature |
-20°C to +50°C |
| storage Temperature |
-40°C to +60°C |
|
Protection Level |
IP67 Waterproof & Dustproof |
FAQ
Q1: Is the laser beam visible to the human eye or night vision?
A: No. IREEDA Laserangefinder Binoculars DA-HLM6 uses a 1535nm wavelength, which is completely invisible to both the human eye and traditional image-intensified night vision devices, ensuring covert operation.
Q2: What is 'Range Gating' and how does it help?
A: Range Gating allows the user to set a minimum or maximum filter distance. For example, if you set the min range to 500m, the device will ignore all reflections from branches or rain in the foreground and only return targets beyond 500m.
Q3: Can I integrate this binocular with my existing surveillance system?
A: Yes. The device features a 'tail-wire' socket supporting RS232 or TTL protocols, allowing it to output distance and angle data to a PC, gimbal, or external controller.
Q4: How does the A-B Ranging mode work?
A: In A-B mode, the user measures the distance to two separate points. The built-in processor then calculates the direct distance and height difference between those two remote targets automatically.
Q5: Does it require any special maintenance?
A: Minimal maintenance is needed. Simply keep the lenses clean with the included microfiber cloth and ensure the lens caps are on when not in use. We recommend a power-on check every 3 months if stored for long periods.
