Overview

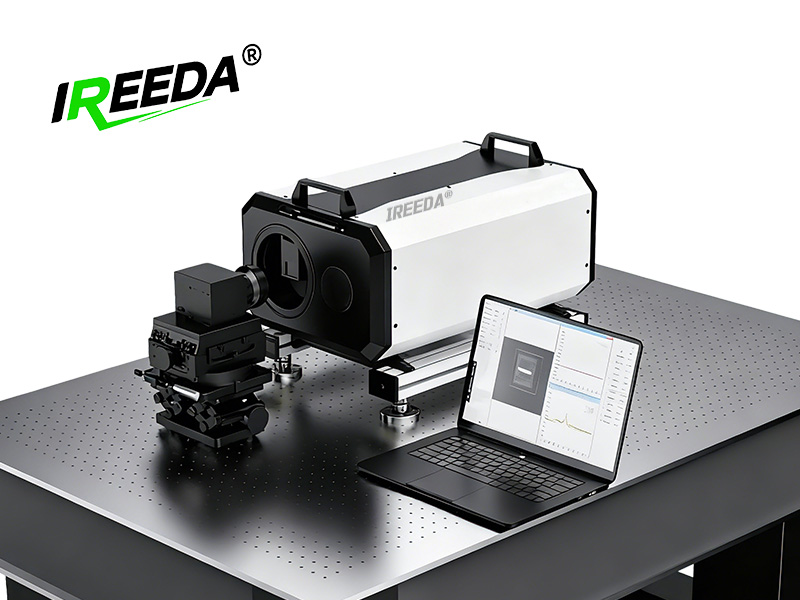

IREEDA Laser Range Sensor Comprehensive Test System, DA LR-ETS, enables full assembly testing and online alignment of laser ranging sensors, combined with image data acquisition and analysis to extract the spot centroid for calibration between the targeting optical axis and laser emission axis, as well as between the laser emission axis and receiving optical axis of the laser ranging sensor.
Product Function
Designed for comprehensive testing of laser ranging sensors/lidar, capable of performing the following parameter tests:
- Deviation measurement between laser emission optical axis and laser reception optical axis
- Deviation measurement between aiming optical axis and laser emission optical axis
- Consistency verification between mechanical structure datum and optical axis
- Laser divergence angle measurement
- Pulse energy
- Pulse repetition frequency measurement
System Test Accuracy
- Deviation test between laser emission optical axis and laser reception optical axis: Pixel-level accuracy
- Deviation test between aiming optical axis and laser emission optical axis: Pixel-level accuracy
- Laser divergence angle measurement range: 0.3 mrad - 15 mrad
- Laser energy, pulse frequency, and pulse peak power measurement: Supported
- Automated spot image analysis with eccentric error identification and laser 3D intensity profile testing (configurable upgrade)
Component and Specification
|
|
Parameters |
ZYP-0510LX |
ZYP-0613LX |
ZYP-1010LX |
|

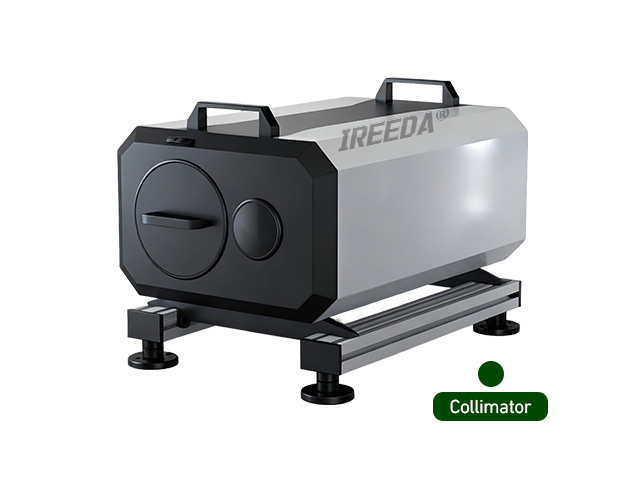

Collimator |
Focal Length |
500mm |
600mm |
1000mm |
|
|
Aperture |
100mm |
130mm |
100mm |
|
|
Field of view(FOV) |
≥3° |
≥2.6° |
≥1.6° |
|
|
Optical System Type |
Off-axis Newtonian reflective |
||
|
|
Coating |
Metallic Aluminum Film + Protective Film |
||
|
|
Applicable Spectral Range |
400nm-1700nm |
||
|
|
System Wavefront |
RMS better than1/15λ@632.8 |
||
|
Beam Quality Analyzer |
Resolution |
2048*2048 |
||
|
|
Pixel Size |
5.5μm*5.5μm |
||
|
|
Focal Plane Array Size |
1 inch |
||
|
|
Applicable Wavelength Range |
905nm-1550nm |
||
|
Turntable |
Adjustment Type |
Lift, horizontal movement, pitch, and lateral translation adjustment |
||
|
|
Adjustment Method |
Manual |
||
|
Laser Energy Meter |
Applicable Wavelength Range |
905nm-1550nm |
||
|
|
Detection surface size |
φ30mm-φ50mm |
||
|
|
Function |
Pulse energy, laser power, pulse width, pulse repetition frequency testing |
||
|
|
Data Interface |
USB2.0 |
||
