Overview
IREEDA Carrier Board is engineered for system integrators who need to deploy NVIDIA Jetson Orin edge AI in space-constrained, mission-critical environments. With a PCB footprint of just 87 × 52 mm — roughly the size of a credit card — A603 delivers full industrial connectivity in the smallest possible form factor. Whether you are building autonomous mobile robots (AMRs), inspection drones, smart cameras, in-vehicle vision systems, or compact AI inference boxes, A603 lets your design team integrate NVIDIA's most popular edge AI modules without compromising on I/O, ruggedness, or scalability.
Keywords:
Jetson Orin NX carrier board;Orin Nano Super carrier board;Compact carrier board for Orin
Highlights
- ULTRA-COMPACT 87 × 52 MM — Smallest-in-class carrier board for NVIDIA Jetson Orin Nano & Orin NX modules. Half the footprint of standard carrier boards — perfect for space-constrained robotics, drones, and handheld devices.
- FULL ORIN-SERIES COMPATIBILITY — Plug-and-play with NVIDIA Jetson Orin NX (8GB/16GB) and Orin Nano (4GB/8GB), including the new Orin Nano Super. Up to 100 TOPS of edge AI compute.
- INDUSTRIAL-GRADE RELIABILITY — Wide operating range -25°C to +65°C, ESD protection, anti-vibration design, and active cooling fan header. Built for 24/7 mission-critical deployment.
- COMPLETE I/O — 1× HDMI, 1× Gigabit Ethernet, 3× USB 3.0, 1× CSI Camera, M.2 KEY M (NVMe SSD), M.2 KEY E (WiFi/BT), 1× CAN, 2× I2C, 2× SPI, 1× UART, 1× I2S, 6× GPIO. Connect everything you need in one board.
- WIDE VOLTAGE INPUT 9V–20V DC @ 7A — Direct compatibility with 12V / 24V vehicle and industrial power supplies. RTC backup battery, recovery mode button, and OEM/ODM customization available.

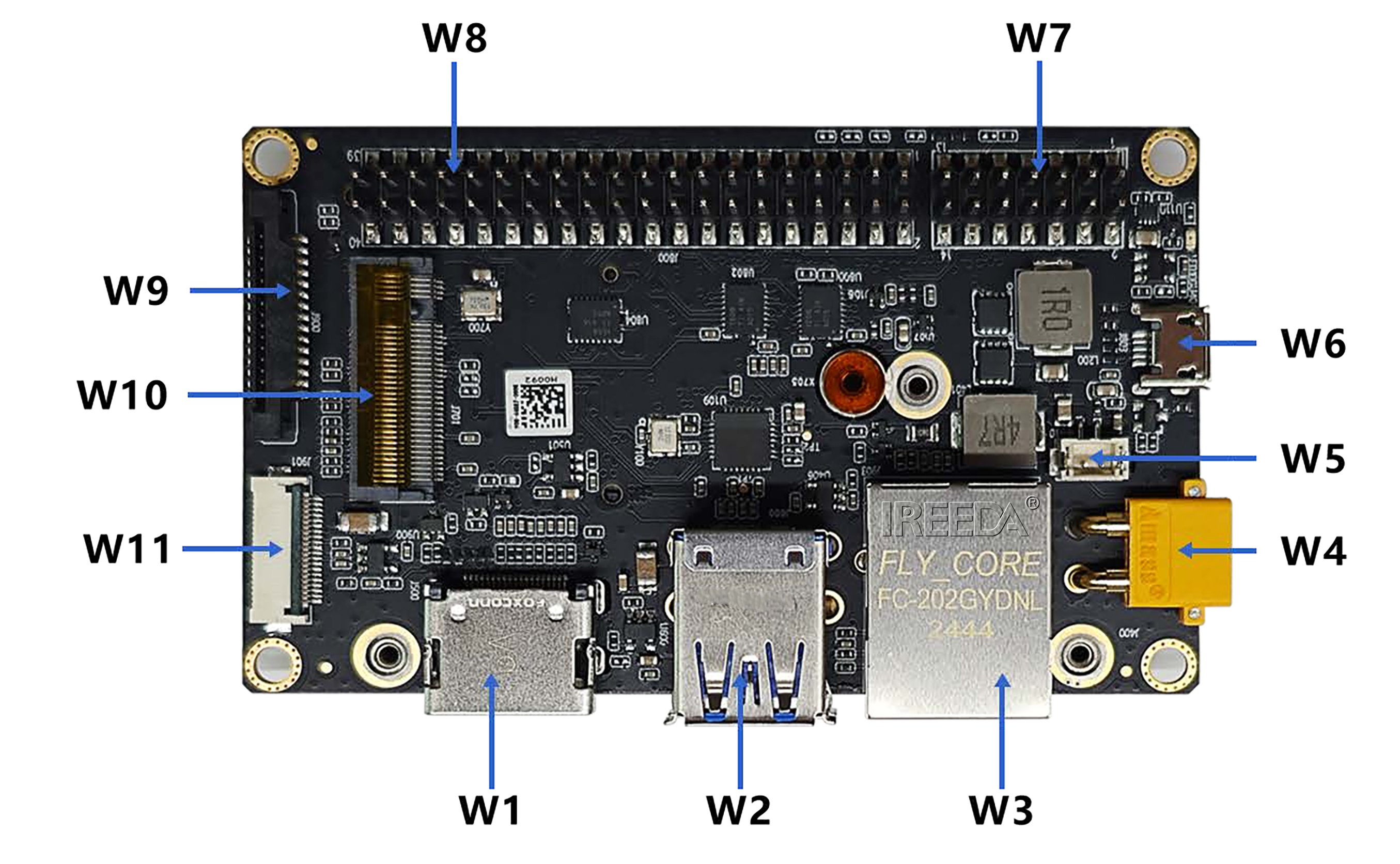

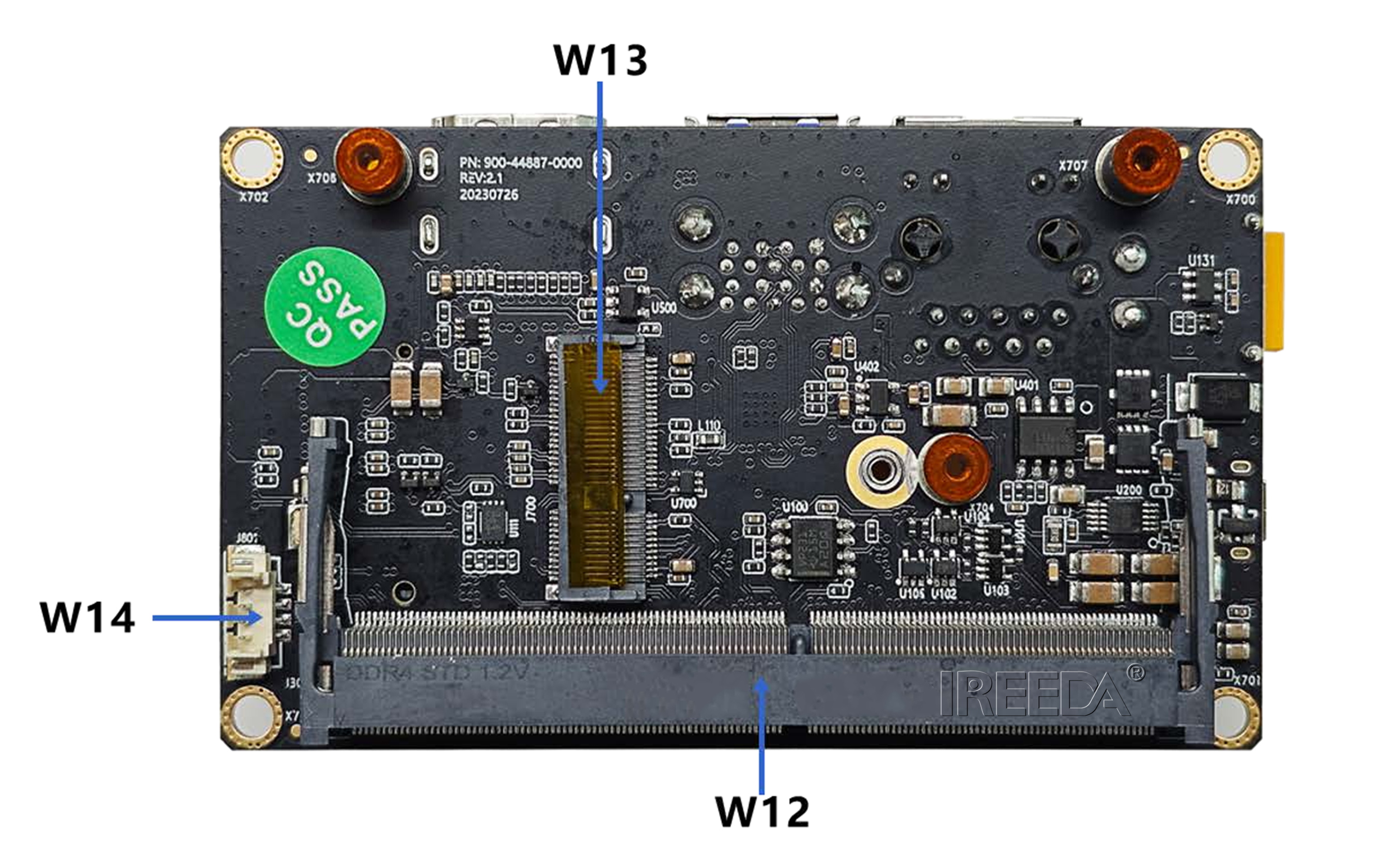

Interface Location
Designator
Connector
Description
W1
HDMI Port
HDMI Right Angle Vertical Connector
W2
USB 3.0 Type A
USB 3.0 Link 1 Type A Connector
W3
NVIDIA Gigabit Ethernet
RJ45 Gigabit Ethernet Connector
(10/100/1000)
W4
DC Power
DC Input Power TE Connector
W5
3V LITHIUM BATTERY
3V Lithium Battery Connector
W6
USB 2.0
USB 2.0 Link 0 Micro-AB Connector
W7
Multifunctional port 2.54 PITCH 14
PIN
2.54 PITCH 14 PIN
W8
Multifunctional port
2.54 PITCH 40 PIN
W9
CSI CAMERA0 CONNECT
15 pins CSI Camera connect
W10
M.2 KEY M Disk
Disk size 2242
W11
USB 3.0 ZIF connect
0.5 PITCH 20 PIN
W12
NVIDIA Jetson Orin Nono/Orin NX
Orin Nono/Orin NX 260 PIN Connector
W13
M.2 KEY E
PCIE 2230 SIZE
W14
FAN CONNECT
PicoBlade Header
Specification
|
Product Name |
IREEDA Carrier Board |
|
PCB Dimensions |
87 × 52 mm (Ultra-Compact) |
|
Compatible Modules |
NVIDIA Jetson Orin NX 8GB / 16GB; Orin Nano 4GB / 8GB / Super 8GB |
|
Display Output |
1 × HDMI |
|
Ethernet |
1 × Gigabit Ethernet (10/100/1000 Mbps) |
|
USB Ports |
2 × USB 3.0 Type-A (USB 2.0 backward compatible); 1 × USB 3.0 ZIF (20-pin, 0.5mm pitch); 1 × USB 2.0 Micro-AB |
|
Storage Expansion |
1 × M.2 KEY M for NVMe SSD (2242 form factor) |
|
Wireless Expansion |
1 × M.2 KEY E for PCIe 2230 (WiFi / Bluetooth) |
|
Camera Interface |
1 × CSI Camera (15-pin MIPI CSI-2) |
|
Industrial I/O |
1 × CAN, 2 × I2C (3.3V), 1 × UART, 2 × SPI, 1 × I2S (3.3V), 6 × GPIO |
|
Multifunction Headers |
1 × 14-pin (2.54mm); 1 × 40-pin (2.54mm); 1 × 20-pin (0.5mm ZIF) |
|
Power Input |
DC 9V – 20V @ 7A (wide voltage) |
|
Cooling |
Active fan header (PWM controlled) |
|
RTC |
Backup battery socket (CR1220 / equivalent) |
|
Operating Temperature |
-25°C to +65°C (Industrial Grade) |
|
Protection |
ESD protection, anti-vibration design |
|
OS Support |
Ubuntu 20.04 / 22.04 LTS, NVIDIA JetPack 5.x / 6.x |
|
Warranty |
1 year from delivery |
