Overview
Infrared Thermal Imager Optical Performance Comprehensive Test System integrates hardware such as a collimator, battery board plugin, high-precision differential blackbody, and multi-dimensional turntable, combined with image analysis software, to evaluate the overall performance of various infrared thermal imagers.
Product Function
Designed for comprehensive testing of infrared thermal imagers, capable of evaluating the following parameters:
- Minimum Resolvable Temperature Difference (MRTD)
- Minimum Detectable Temperature Difference (MDTD)
- Modulation Transfer Function (MTF)
- Distortion
- Field of View
- Non-uniformity
- Defective Pixels
System Accessories

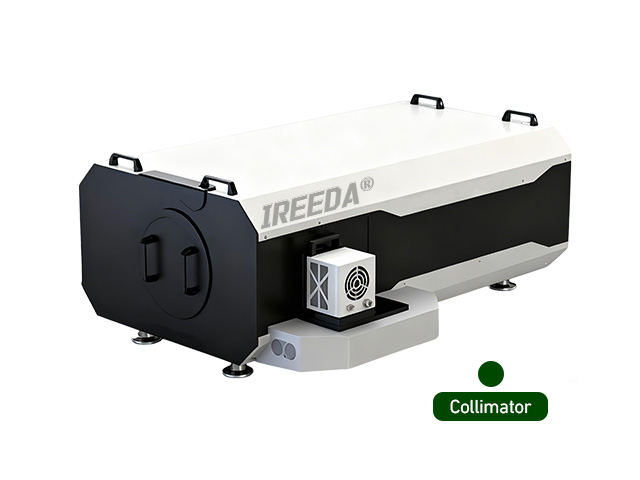

Collimator
|
|
ZYP-0510LX |
ZYP-1630LX |
ZYP-2030LX |
|
Focal Length |
500mm |
1600mm |
2000mm |
|
Aperture |
100mm |
300mm |
300mm |
|
Field of View (FOV) |
≥3° |
≥1° |
≥0.8° |
|
Optical System Type |
Off-axis Newtonian reflective |
||
|
Coating |
Metal aluminum film + protective film |
||
|
Applicable Spectral Range |
0.4-14μm |
||
|
System Wavefront |
RMS better than 1/15λ@632.8 |
||
|

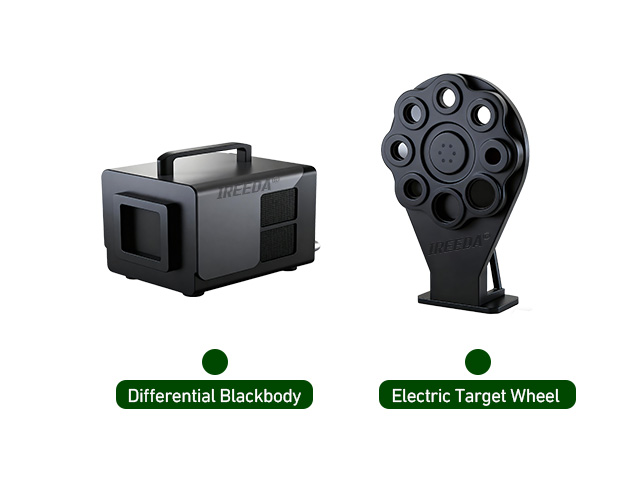

Differential Blackbody |
|
|
Aperture |
50*50 / 100*100 |
|
Absolute Temperature Range (25℃ Ambient) |
0℃-125℃ |
|
Differential Temperature Range |
-25℃-100℃ |
|
Temperature Resolution |
0.001℃ |
|
Emissivity |
0.98±0.02 |
|
Temperature Stability |
0.003℃/min |
|
Average Heating Rate |
15℃/min |
|
Average Cooling Rate |
10℃/min |
| Electric Target Wheel | |
|
Target Position |
8/12 |
|
Control Method |
Digital Electric |
|
Position Repeatability |
≤0.01° |
|
Infrared Targets |
Four-bar/knife-edge/hole/aberration/edge/cross/hole targets |
