Key feactures

• 1,500m Cat-Eye Detection — Expose Threats Before Being Seen

Feature: Detects the retroreflection signature of optical lenses (rifle scopes, long-focal cameras, binoculars with aperture ≥40mm) at up to 1,500m in clear weather conditions.

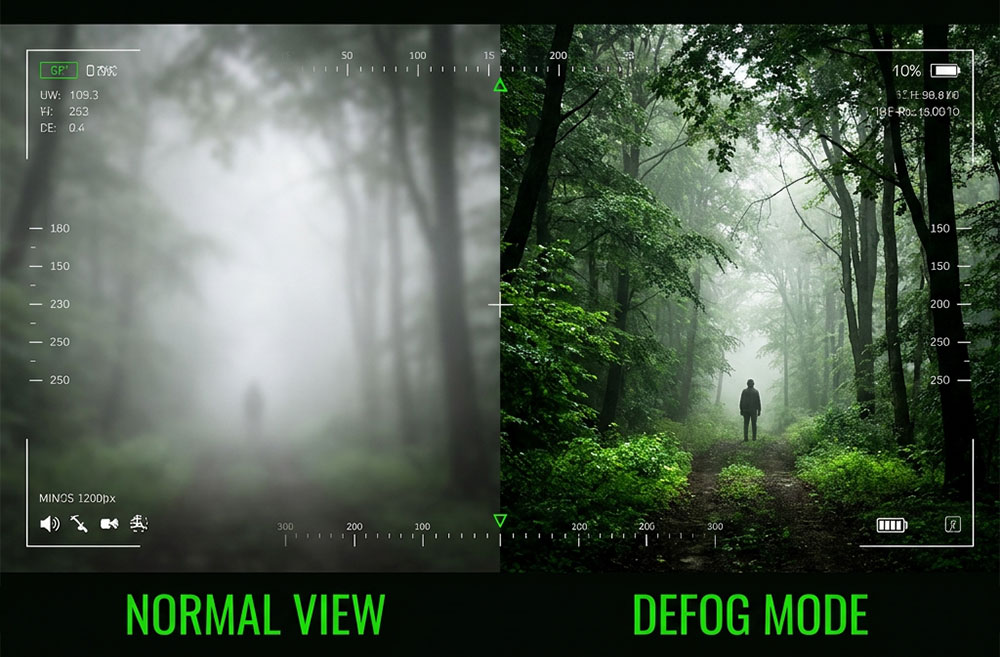

• Dual-Band Imaging + <1s De-fog Switch — All-Weather Situational Awareness

Feature: Simultaneous visible light and near-infrared (NIR) imaging. One-key switch between Full-Color and De-fog mode in under 1 second.

• Integrated GPS + 9-Axis Compass — Instant Target Coordinates

Feature: Built-in BeiDou/GPS receiver with 9-axis electronic compass displaying azimuth, pitch, and roll in real time. Target positioning accuracy ≤50m.

• NIR Laser Rangefinder (50–1,500m, ±5m) — Covert Precision Ranging

Feature: Eye-safe NIR laser rangefinder, 50–1,500m range, ±5m accuracy, ≥95% hit rate. Single-shot or continuous ranging at adjustable frequency.

• 4h+ Video Recording + WiFi Streaming — Evidence & Real-Time Command Link

Feature: On-board storage for ≥4 hours of full-resolution video and 10,000+ BMP photos. Built-in WiFi for live video transmission to a tablet or command vehicle.

• IP66 Rugged | -20°C to +55°C | Handheld & Tripod-Mountable

Feature: IP66 waterproof and dustproof sealed housing, operating range -20°C to +55°C, storage -40°C to +70°C. Supports both one-man handheld operation and tripod-mounted observation post configuration.

Buyer Benefit

1. Enables perimeter security teams to identify sniper positions at safe standoff distances — before the threat can engage. Detects optical devices invisible to the naked eye, day or night.
2. Maintains operational effectiveness in smoke, haze, light rain, and dusk conditions where standard optics fail. Critical for border surveillance missions that run 24/7 regardless of weather.
3. Eliminates the need for separate GPS handsets. Operators capture precise target coordinates (latitude/longitude/elevation) in a single action and transmit to command systems via USB or WiFi, compressing the sensor-to-shooter cycle.
4. Provides accurate standoff distance for threat assessment and ROE (Rules of Engagement) decisions. NIR wavelength is invisible to naked eye and undetectable by standard NVDs, preserving operator covertness.
5. Creates irrefutable evidence chains for law enforcement operations. Live streaming allows remote command situational awareness without exposing additional personnel at the observation post.
6. Deployment-ready from Arctic borders to tropical coastlines. Tripod mode enables sustained surveillance shifts without operator fatigue. 3.0kg total weight meets individual soldier carry requirements (MIL-STD-810G reference).

Ranging Accuracy	± 5 m (Hit Rate ≥ 95%)
Angle Measurement Accuracy	< 0.5°
Laser Indicator Output	Near-Infrared, Power ≤ 5 mW
Target Positioning Accuracy	≤ 50 m
Display	Dual-Eye OLED Binocular
Observation Band	Visible Light + Near-Infrared (Dual-Band)
Electronic Zoom	1.0× ~ 8.0× Continuous
Optical Zoom	Manual Variable Focal Length
Image Storage	≥ 4 Hours Video + 10,000 BMP Photos
GPS / Compass	Built-in BeiDou/GPS + 9-Axis Electronic Compass (Azimuth/Pitch/Roll)
Anti-Fog Mode	Full-Color ↔ De-fog Switch < 1 second
WiFi Transmission	Built-in WiFi Video Streaming
Picture-in-Picture	Supported
Data Interface	Standard USB
Operation Modes	Handheld / Tripod-Mounted
Power Supply	18650 Li-ion Battery (Customer-Supplied)
Standby Time	> 4 Hours
Active Detection Time	> 1 Hour
Working Temperature	-20°C to +55°C
Storage Temperature	-40°C to +70°C
Waterproof Rating	IP66
Dimensions (Max)	225 × 180 × 90 mm
Weight (Max)	3.0 kg

---
