IREEDA HR Coating Homogenizer Mirror

Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com

Why Use a Homogenizing Mirror?

In most laser applications, the Gaussian energy distribution (high intensity in the center, low at the edges) can lead to uneven processing, such as over-melting in the middle or insufficient heating at the periphery. IREEDA Homogenizing Mirrors are engineered to reshape the energy profile, delivering a "top-hat" intensity distribution. This is essential for precision laser cleaning, stripping, and large-area surface processing

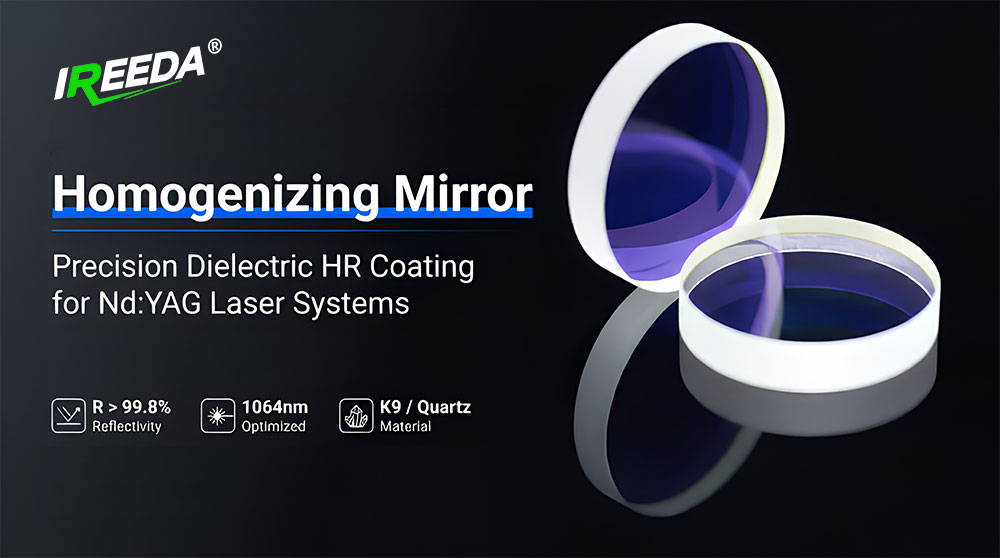

IREEDA Homogenizing Mirror

Highlights

Premium Beam Homogenization: Specifically designed to convert standard Gaussian laser beams into uniform Flat-top beams, eliminating hot spots and ensuring consistent energy distribution across the entire spot area.
Ultra-High Reflectivity (R > 99.8%): Features state-of-the-art dielectric HR coatings at 1064nm. Minimizes insertion loss and prevents thermal deformation in high-power fiber laser systems.

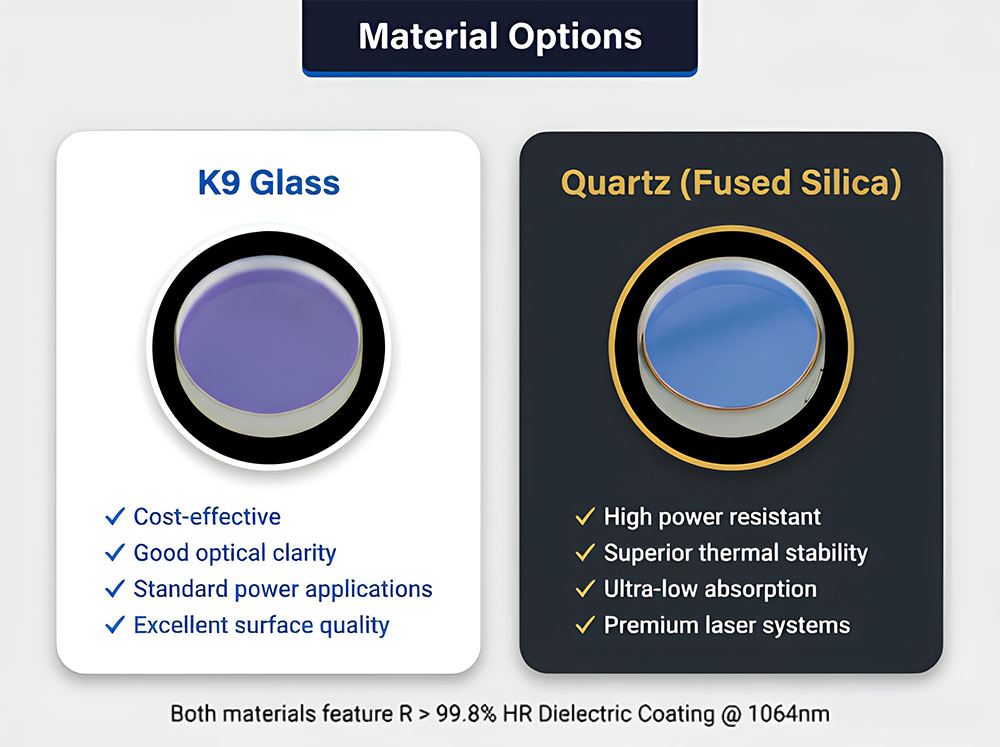

Superior Substrate Quality: Available in high-clarity K9 (BK7) for cost-efficiency or Fused Silica (Quartz) for extreme thermal stability and high laser damage thresholds (LDT).
Precision Curvature Design: Offered with standard large radii of R4000 or R7000, meticulously polished to ensure precise wavefront control and excellent far-field homogenization.
Industrial Durability: Built to withstand harsh industrial environments. Optimized for laser cleaning, welding, and surface treatment where long-term stability is critical.

Product Specification

Parameter	Specification Details
Product Name	Homogenizing Mirror / Beam Shaping Mirror
Substrate Material	K9 (BK7) / UV Grade Fused Silica (Quartz)
Operating Wavelength	1064nm (Customizable for 355nm, 532nm, etc.)
Reflectivity	R > 99.8% @ 1064nm, 0° AOI
Radius of Curvature	R4000 / R7000 (Concave or Convex)

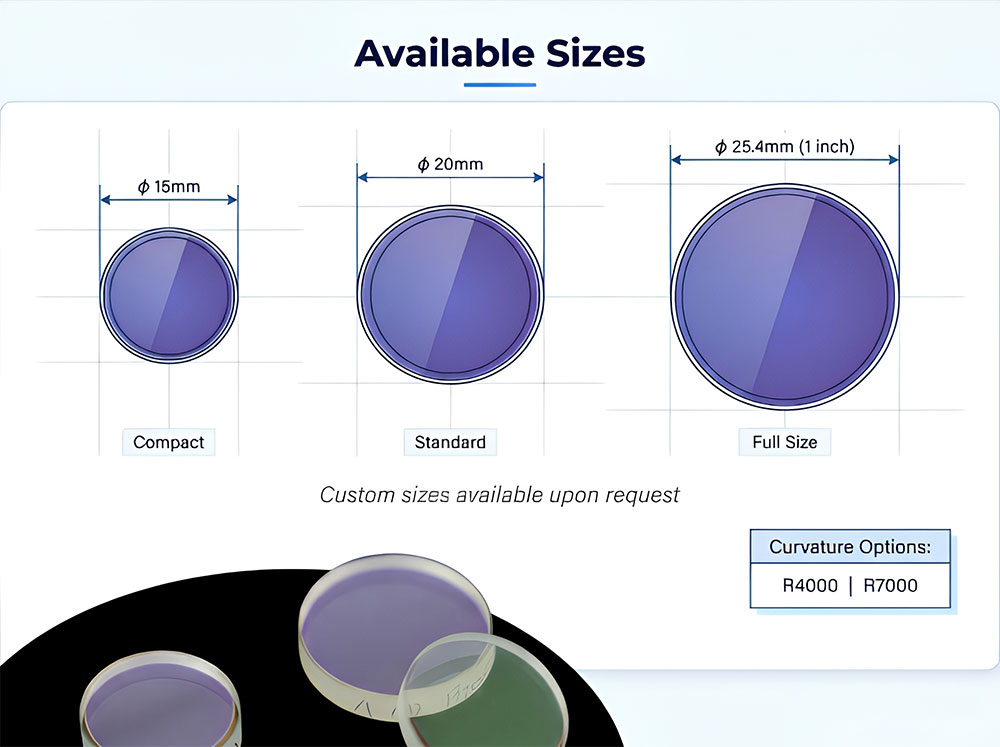

Diameter ( $ϕ$ )	15 / 20 / 25.4 mm (Tolerance: +0.0/-0.1 mm)
Thickness Tolerance	$\pm 0.1 mm$
Surface Quality (S/D)	20/10 or 40/20
Clear Aperture	$> 90%$ of diameter
Surface Flatness	$λ /4$ per inch @ 632.8nm
Damage Threshold	$> 10 J / c m^{2}$ (Pulse 10ns, 1064nm) for Quartz

Industrial Applications

Laser Cleaning: Efficiently removes rust, paint, and oxides without damaging the substrate by providing uniform impact.
Laser Cladding & Hardening: Ensures consistent alloy melting and cooling for superior surface hardening.
Semiconductor Processing: Used in laser annealing and lithography systems.
Medical Aesthetics: Homogenized spots prevent skin burns during laser treatments.
