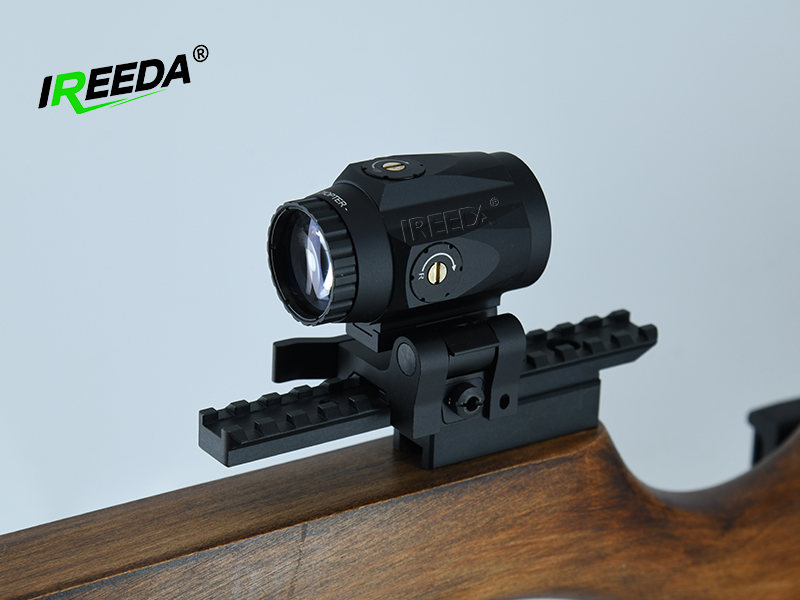

HD 3X Magnifier

An ideal optical accessory for situations where you need to quickly switch between no magnification and a closer view of your target.

Designed to mount easily behind your red dot sight, this 3x magnifier allows for rapid transitions between unmagnified and magnified shooting. It is perfect for competitions, tactical training, and dynamic environments where there’s no time to adjust traditional variable scopes.

Feacture Tech

1. Fully multicoated optics increase light transmission and produce bright images
2. Aircraft grade aluminium offers exceptional strength and superior mechanical integrity
3. One piece chassis gives the scope extra strength
4. Waterproof and fog proof thanks to nitrogen purging
5. Shockproof mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 600G recoil for 1000 times.
6. Included flip mount and riser that works with most of standard picatinny rails

Specification

Optical Properties
Magnification	3x
Field of view	8°
Parallax	1′
Objective diameter	21.8mm
Visual adjustment range	+2~-5D
Exit pupil diameter	6.3mm
Exit pupil distance	60mm
adjustment range	±45MOA（elevation / azimuth）
Mechanical Parameters
Material	Aviation aluminum 7075
Processing methods	CNC cutting
Surface treatment	Black oxide
Center height	38mm
Base	Picatinny rail
Dimensions	78.7 x 58.4 x 83.8 mm
Weight	＜260g
Environment Parameters
Operating temperature	-40℃~+65℃
Storage temperature	-45℃~+70℃
Waterproof level	IP67

---
