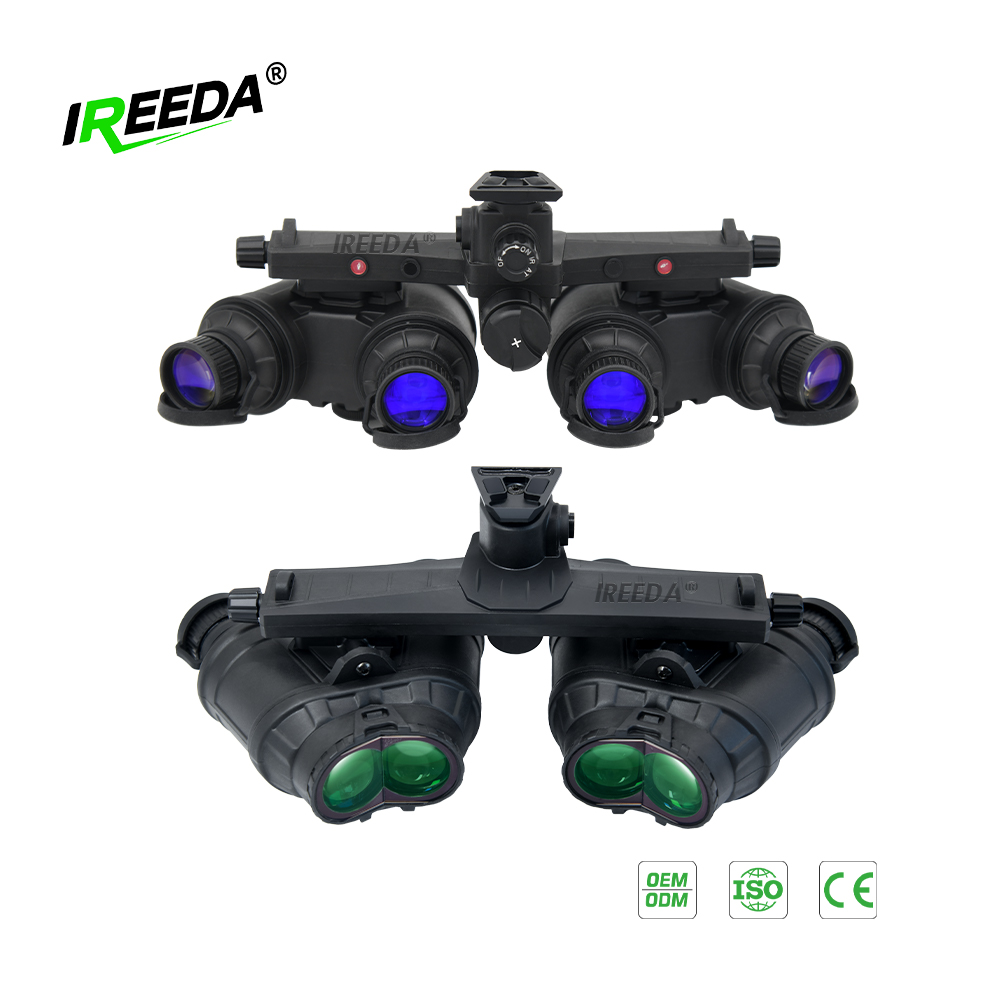

GPNVG 18 NIGHT VISION 4 eyed GPNVG FOV 120°
Overview

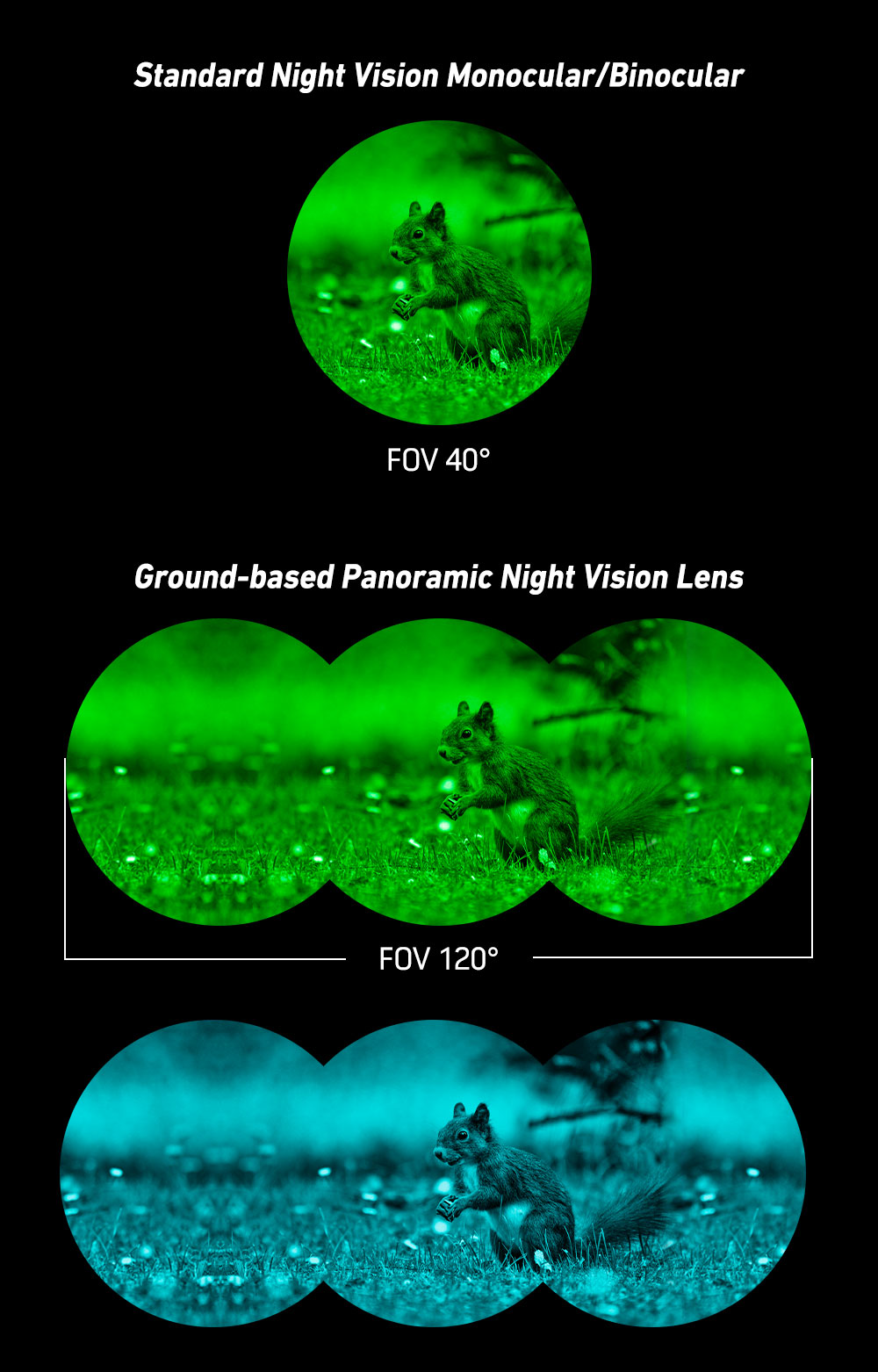

DA-GPNVG is a ground-based panoramic night vision goggles that provides the user with more information and enables the user to complete the OODA cycle (Observe, Orient, Decide, and Act) more quickly. It features four separate image intensifier tubes, four separate objective lenses aligned in the panoramic direction, and two middle lenses pointing forward like traditional binocular goggles, providing users with an unprecedented 120° field of view. DA-GPNVG has left and right tubes suspended from the bridge, and the user can choose pupil distance adjustment. The IPD of both systems can be adjusted from the helmet.
1. FOV 120 degree
2. Diopter adjusting wheel
3. Battery packs and wire included
4. Build in IR flashlight
5. Low battery indicator
6. IR light ON/OFF indicator
7. Housing offered
Product Specification
|
GPNVG-18 Panormaic Night Vision Goggles |
|
|
FOV（degree） |
Horizontal 120+/-2 °
Vertical 50 +/-2 °
|
|
Image intensifier |
Gen2+ / Gen 3 |
|
Magnification |
1X |
|
Structural mode |
4 eyed GPNVG |
|
Installation |
Head mounted |
|
Battery type |
Lithium battery (CR123Ax1)
External battery packs (CR123Ax4)
|
|
Voltage range |
2.6-4.2V |
|
Control type |
ON/IR/AUTO |
|
Over Power Consumption
|
<0.2W |
|
Battery capacity |
800-3200maH |
|
Continue working time |
30-80H |
|
Parallelism of optical axis |
<0.1° |
|
Optical aperture |
F1.18 22.5mm |
|
Optical MTF |
120LP/mm |
|
Optical distortion |
3% Max |
|
Relative Illumination |
>75% |
|
Lens coating |
FMC |
|
Focus range |
250mm–∞ |
