Overview

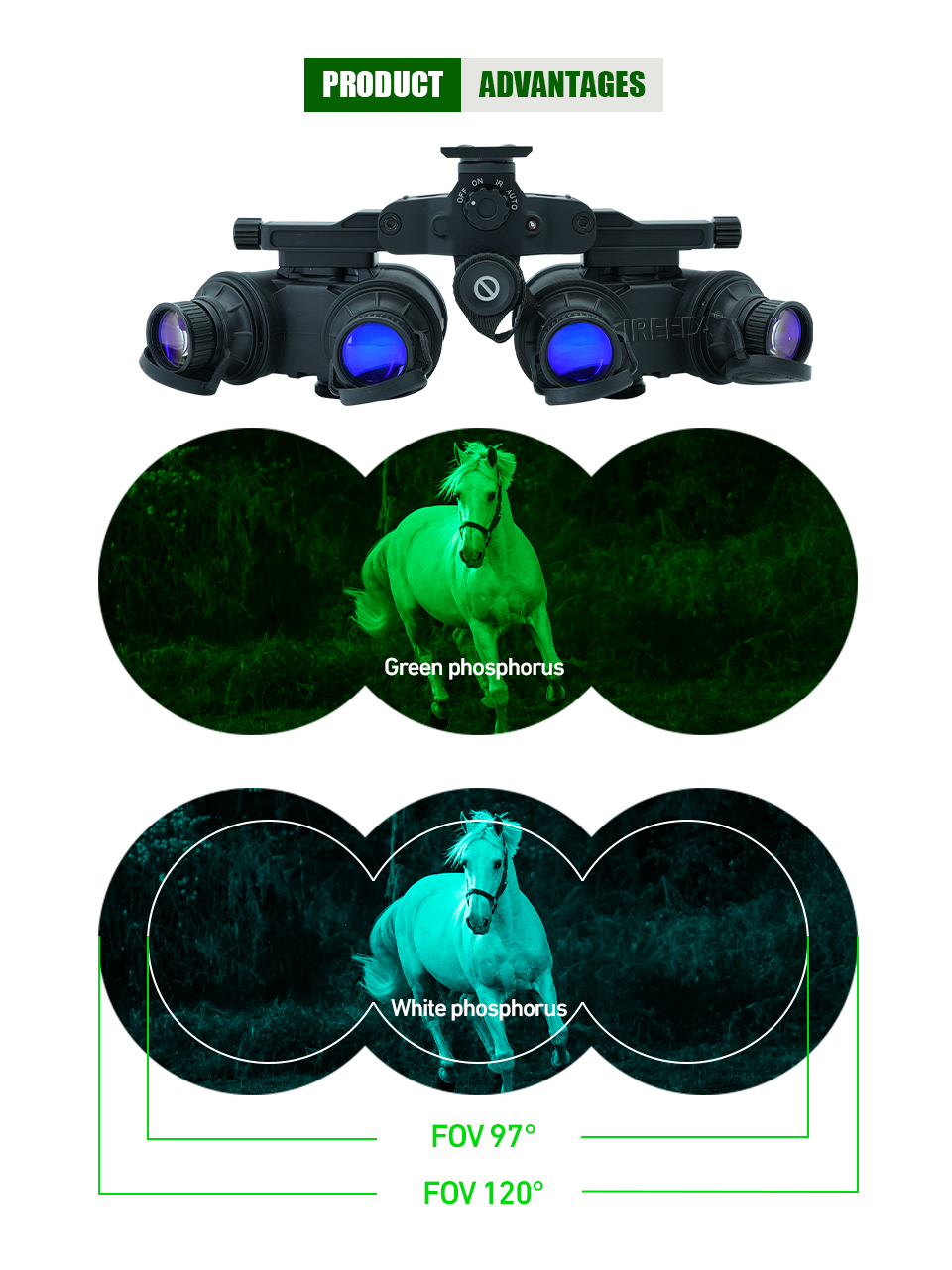

DA F-GPNVG is a newly developed foldable four-eyes night vision device with side-flip up On/Off and ground panoramic observation capabilities. The purpose is to provide users with more information in a dark environment and to pass the OODA cycle (Observe, Orient, Decide, and Act) more quickly. DA F-GPNVG features four separate image enhancement tubes, four separate objectives aligned in the panoramic direction, and two middle lenses pointing forward like traditional binocular goggles, providing users with an unprecedented 120° field of view.The most feature of the DA F-GPNVG is that in addition to flipping up to shut down, it can also be side flip up to shut down, which brings more convenience to customers in terms of use and application scenarios.
- Four independent image intensifier tubes and four objective lenses;
- The truly field of view 120 degrees;
- Flip-Up On-Off;
- Interpupillary distance adjustment available
|
IREEDA Foldable GPNVG-18 Quad Night Vision Goggles |
|
|
FOV（degree） |
Horizontal 120+/-2 °
Vertical 50 +/-2 °
|
|
Image Intensifier Tube |
Gen2+ / Gen 3 |
|
Magnification |
1X |
|
Structural mode |
Foldable 4 eyed GPNVG |
|
Installation |
Head mounted |
|
Battery type |
CR123Ax1/ External battery packs (CR123Ax4)
|
|
power supply |
2.6-4.2V |
|
waterproof |
IP67/IP65 |
|
Battery capacity |
800-3200maH |
|
Continue working time |
30-80H |
|
Parallelism of optical axes |
<0.1° |
|
Optical aperture |
F1.18 22.5mm |
|
Optical MTF |
120LP/mm |
|
Optical distortion |
1% Max |
|
Relative Illumination |
>75% |
|
Dimensions
|
155x136x83cm
|
|
Weight (without battery)
|
840g
|
Ground Panoramic Night Vision Goggles Housing
IREEDA also supply GPNVG housing along with battery packs. You can purchase and install the tubes independently. Upon receiving the product, we offer training on how to install the tubes and adjust the optical axis. This housing is compatible with MX-10160 tubes and other similarly sized options. Please see the tube drawing in the image below. The housing is constructed from durable, high-quality plastic that adheres to professional standards.
