Overview
IREEDA compact thermal scope combines lightweight design with powerful performance: featuring a 256×192 detector with a 60Hz refresh rate, paired with a 13mm F1.0 large-aperture lens for clear and smooth imaging; equipped with a 1.4-inch (360×300 resolution) display that shows every detail. Weighing only 4 oz (approx. 113g) and powered by a CR2 battery, it offers up to 5 hours of continuous operation. Built for harsh environments, it meets IP67 waterproof rating and withstands up to 1200g of recoil – truly portable, rugged, and reliable.

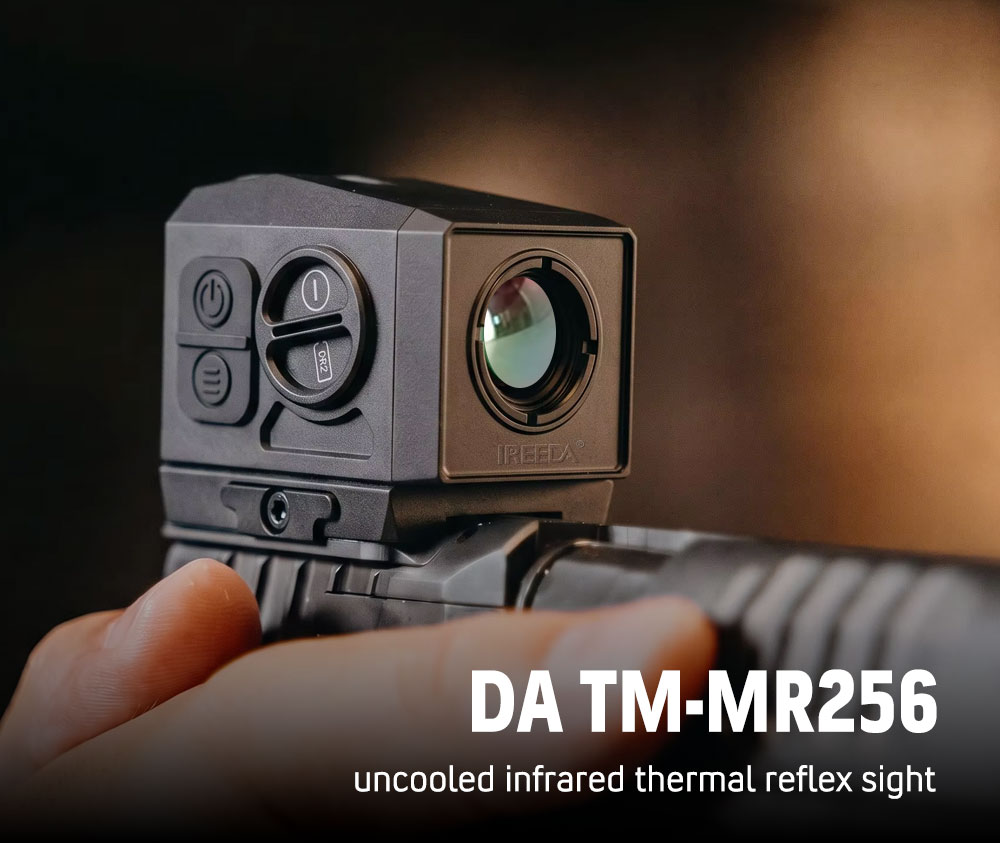

DA TM‑MR256 Fast Mini Compact Thermal Sight Advantage
- Ultra‑Compact Form Factor
- Superior Optical Performance
- Touch Screen Operation
- Versatile Display and Reticle Configuration
- Robust Environmental Durability
- Dual Mounting Compatibility
Key Features
1. Advanced Thermal Imaging: Employs a 256×192 resolution, 12µm thermal sensor with an NETD of ≤25 mK and a smooth 60Hz refresh rate, providing critical detection capabilities in low-light and complete darkness.
2. Ultra-Compact & Lightweight: Weighs a mere $\le4$oz (113g) and measures just ≤2×1.5×1.7′′, ensuring unhindered device maneuverability and operator comfort.
3. Rugged, Field-Ready Construction: Features an IP67 waterproof rating (submersible to 33ft/10m), is built from high-strength AL7075-T6 material, and is engineered to withstand heavy recoil up to 1200g and accidental drops.

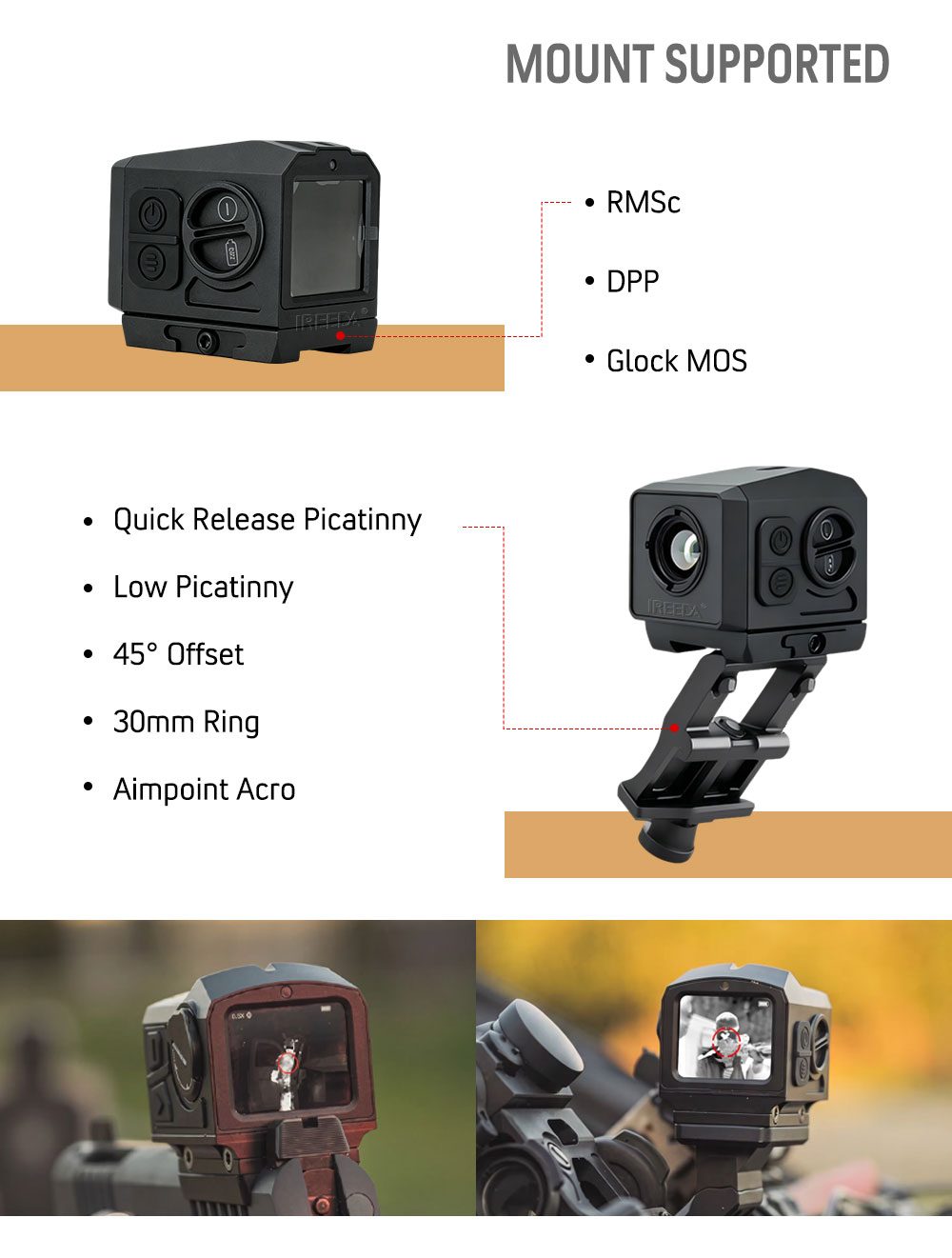

4. Versatile Mounting Ecosystem: Ships with a standard RMR footprint for direct pistol mounting and offers broad compatibility with optional mounts for other pistol footprints (RMSc, DPP, MOS) and various rifle platforms.
5. Intuitive Touch Screen Control: Provides a user-friendly touch screen interface for quick and easy adjustments to zeroing, color palettes, reticles, and other operational settings.
6. Sharp Optical Performance & Display: Equipped with a 13mm F1.0 objective lens and a 1.4-inch 360×300 display, offering a clear sight picture and a wide field of view (13.5∘×10.1∘ or 71x53 ft at 100yds). It has a thermal detection range of approximately 100 yards.
7. Adaptable Reticles & Palettes: Includes a Multi Reticle System and multiple color palettes, allowing operators to customize the display for optimal target contrast in diverse environments.
8. Reliable Power Options: Delivers up to 5 hours of runtime on a single CR2 battery and supports an external Type-C USB power supply. Features an ambient light sensor that adjusts display brightness to conserve power and optimize visibility.
Fast Mini Specifications
| Model | DA TM‑MR256 | |
| Resolution | 256x192/12μm | |
| Refresh Rate | 50Hz | |
| NETD | 30mk | |
| Optical Lens | 13mm/f1.0 | |
| Digital Zoom | 1x，2x | |
| FOV | 13.5x10.1° | |
| Focus Distance | 2m-∞ | |
| Display Resolution | 360x300 | |
| Window Size | 27x24mm | |

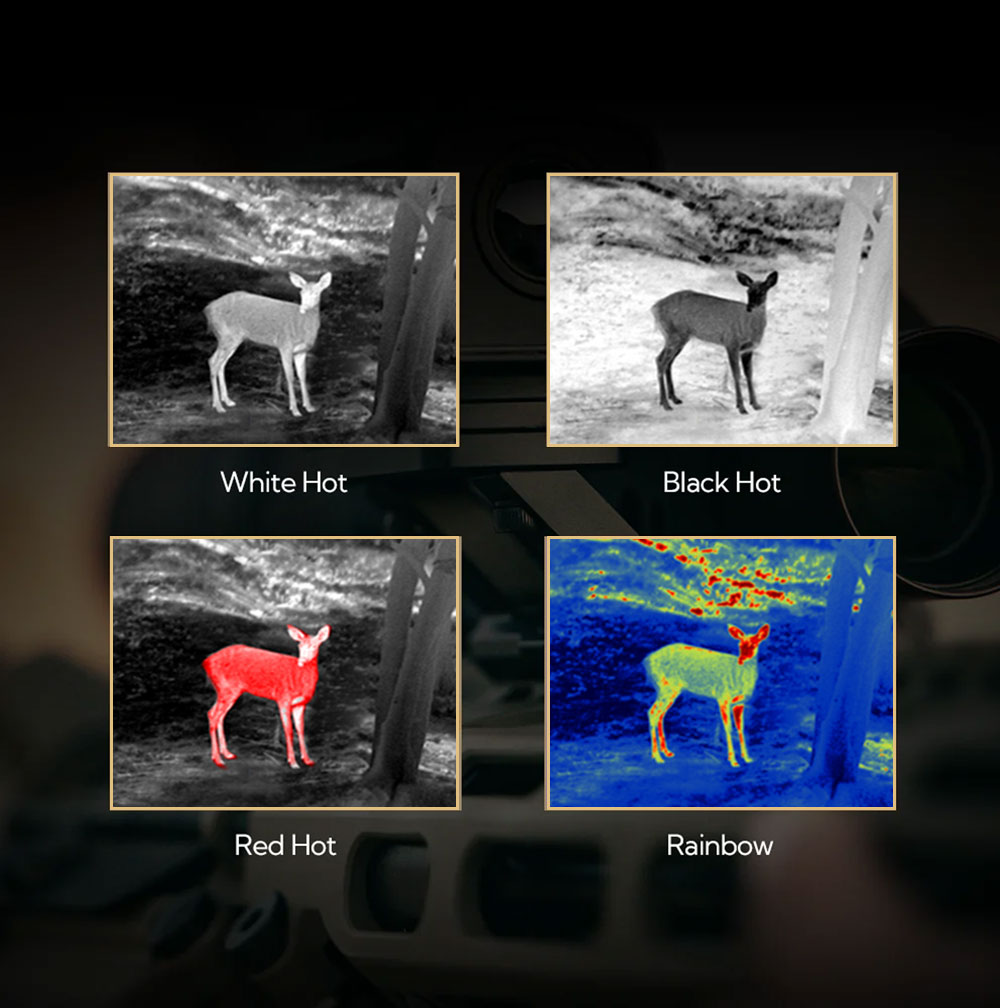

| Display Modes | White Hot, Black Hot, Red Hot, Pseudocolor | |
| Reticle Styles | 4 types | |
| Reticle Colors | Black, White, Red, Green | |
| External Power Supply | Type-c | |
| Shock Resistance | 1000G | |
| Operating Temperature | -30℃-+55℃ | |
| Waterproof Rating | IP67 | |
| Battery | 1xCR2 | |
| Continuous Operating Time | 5 hours | |
| Dimensions | 48x38x41mm | |
| Mechanical Interface | Adapter Plate to RMR | |
FAQ:
Q1. Is the Fast Mini DA TM‑MR256 suitable for daytime use like a regular red dot?
DA TM‑MR256 is primarily designed as a thermal imaging sight for optimal performance in low-light and nighttime conditions. It utilizes advanced thermal and infrared capabilities to detect heat signatures. While it offers clear visibility in various lighting, including some low-visibility daytime situations, it does not have a traditional red dot daytime function. Its strength lies in providing a tactical advantage when light is scarce.
Q2. What is the effective thermal detection range of the fast mini sight?
The thermal detection range is approximately 100 yards. However, this can vary depending on the surrounding environmental conditions, such as ambient temperature and humidity, as well as the size and heat signature of the target.
Q3. How durable is the DA TM‑MR256 Fast Mini? Can it withstand rough handling?
Absolutely. It is built for rugged operational use. It is IP67 waterproof rated, meaning it can be submerged up to 33 feet (10m). It’s constructed from high-strength AL7075-T6 material and designed to withstand recoil up to 1200g. In rigorous testing, it endured multiple chest-high drop tests from 5 feet and continued to function perfectly. While no optic should be intentionally abused, fast mini thermal sight is built to handle accidental impacts that can occur in the field.
