IREEDA Electronic-Circuit-Board-Parts-IR-Illuminator-Manual-Gain
- Special PCB for PVS31 Night Vision Binoculars

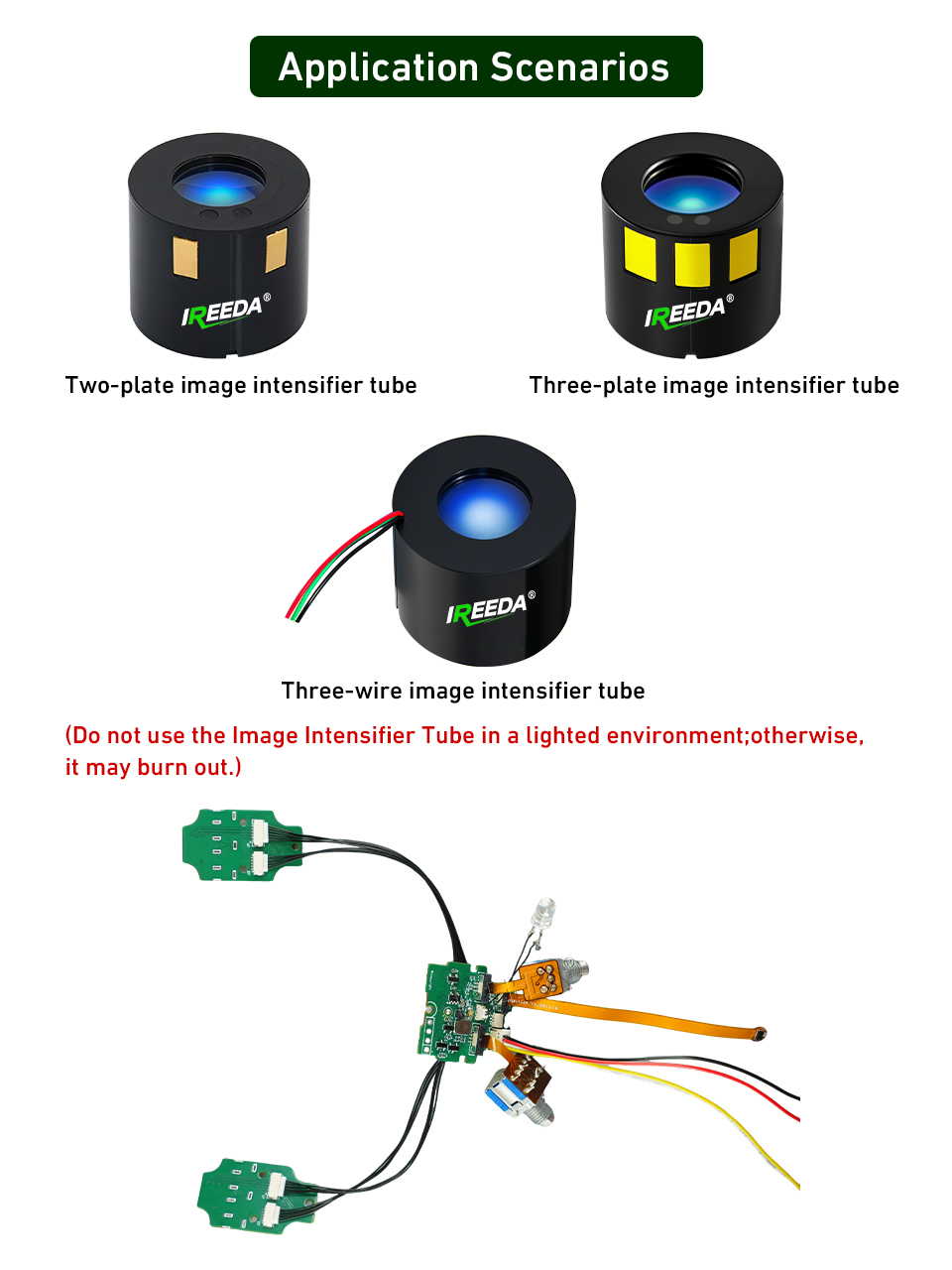

- Compatible with 2/3-contact Image Intensifier Tubes
- 3 Battery Types Supported (AA/CR123 Rechargeable/Non-rechargeable)
- Auto Flip Standby for Helmet Mounting
- 850nm IR Illuminator with Auto Light Sensing
- Stepless Manual Gain for Precise Brightness Control
- Multi-level Strong Light Protection for IIT
- Wide Temp Operation (-40℃~+60℃) for Harsh Environments
- Ultra-low Power Consumption (<10μA when Off)
- Reverse Battery & Low Power Alert, Full Circuit Protection
- Reserved Software Upgrade Interface for Future Optimization
- MTBF 5000h, High Stability
IREEDA Night Vision Binocular Circuit Board-Key technical specifications
|
NO. |
Key technical specifications |
Specification |
|
1 |

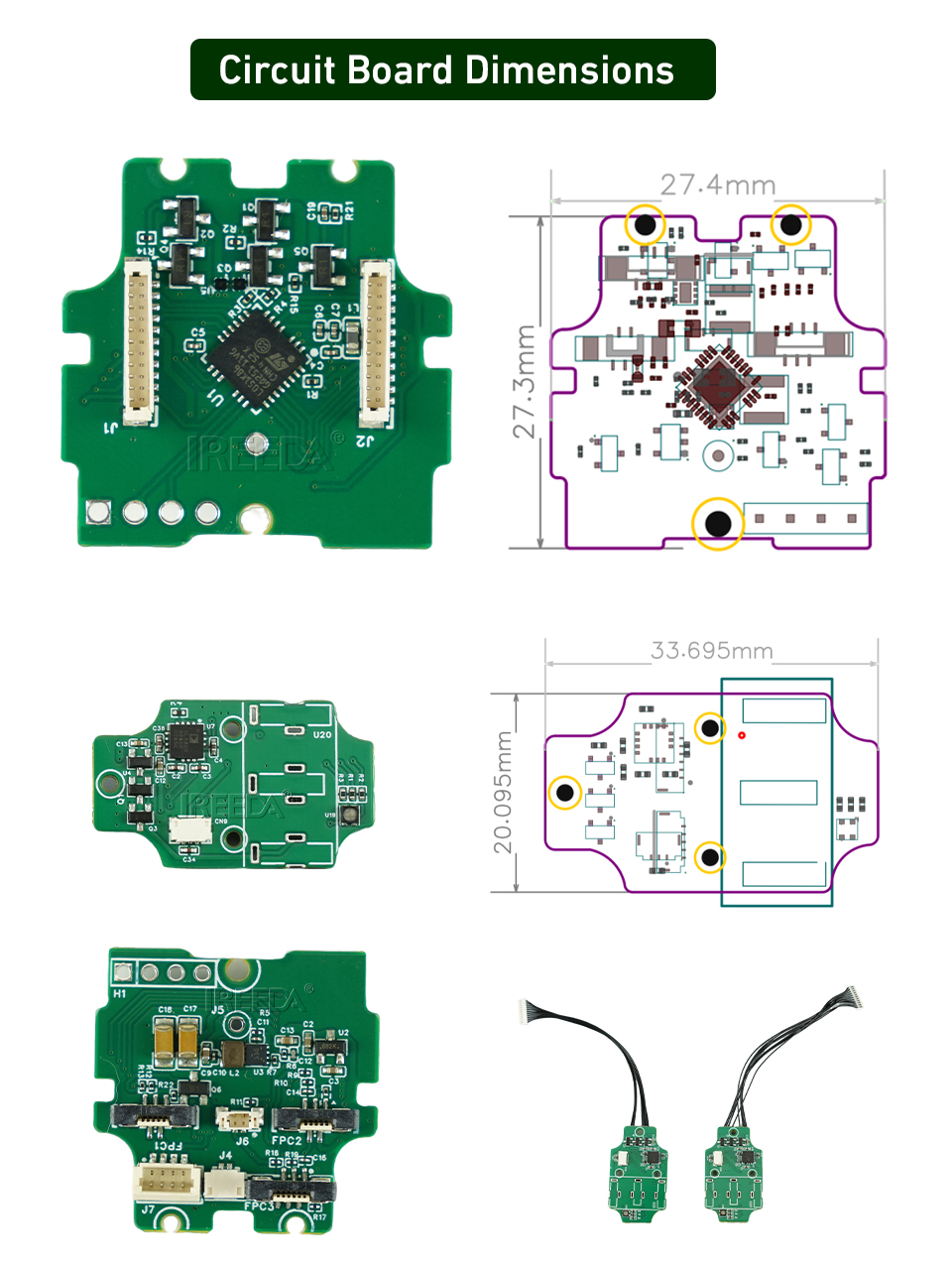

Main board dimensions |
27.4mm*27.3mm |
|
2 |
Sub-board dimensions |
33.695mm*20.095mm |
|
3 |
Power off consumption |
<10μA |
|
4 |
Voltage ripple |
±50mV |
|
5 |
Operating temperature range |
-40℃~+60℃ |
|
6 |
Storage temperature range |
-40℃~+70℃ |
|
7 |
MTBF |
5,000 h |
|
8 |
Service life |
≥ 3 years |
