IREEDA BJ-025 Diopter Meter for Optical Instrument

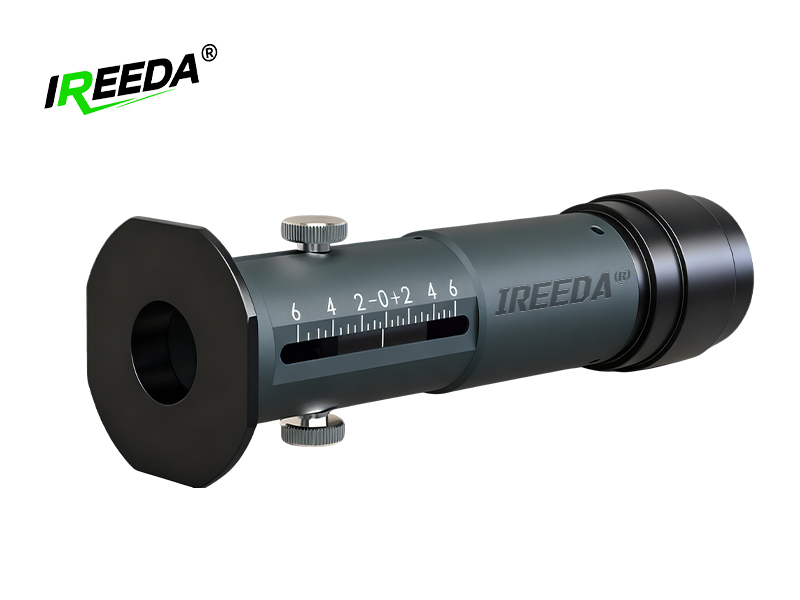

IREEDA Diopter Meter

Diopter Meter BJ-025

External dimensions

Product introduction

  1. Inspect the diopter range, diopter zero position and diopter accuracy of the eyepiece of optical instruments.
  2. Check the diopter of the optical instrument and the zero deviation of the diopter.
  3. It is used as a front mirror when detecting the imaging quality and identification rate of optical instruments.
Technical parameter

Focal length of objective lens

50mm

Magnification

2.5X

Field of view

≥6°

Measuring range

±6SD

Exit pupil diameter

6mm

Effective aperture

Φ14mm

Resolution

≤12.3″

Minimum grid value of diopter

0.5SD

Diopter of eyepiece

±5

Exit pupil distance

18mm
