DTC-640 Driving Assistant Thermal Car Camera

Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com

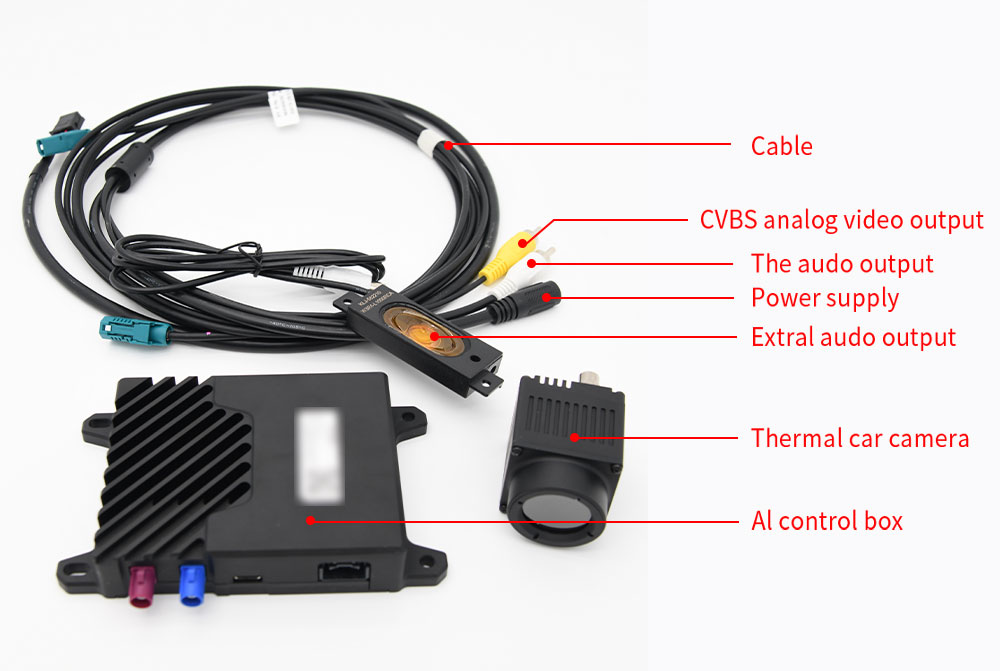

DTC-640 Driver Assistant Thermal Car Camera

The Driver-640 Driving Assistant Thermal Car Camera is mainly used in advanced assisted driving of auto-mobiles. It can obtain clear images during driving at night or in low light, and provide more com-prehensive and accurate information on potential hazards to help the driver obtains a higher foresight ability.

MAIN FEATURES

1)High-brightness illumination of non-luminous heating objects;

2)Anti-glare function;

3)See clearly in complete darkness, dense fog, bright light or other inclement weather;

4)The longer detection distance can reach more than 300m for vehicles and more than150m for people;

5)IP67 protection level;

Parameter		Model
Detector and lens	sensor	Vanadium oxide uncooled detector
	resolution	640 *512px
	response band	8~14 μm
	pixel size	12 μm
	Package form	ceramic package
	frame rate	50fps
	NETD	≤ 50 mK @F1.0, 300K
	effective focal length	13.5mm/F1:1.0
	FOV	20°*15°
Image parameter	Non-Uniformity Correction	Shutter automatic correction technology
	detail enhancement	Support
	noise reduction	Support
	dead point repair	Support
Performance and Interface	impact resistance	750 g/1 ms
	video output	CVBS（P制）
	window heating	Support (Start below 5°C, shut down above 7°C)
System Parameter	power supply	DC 5 V
	power	<1.5 W (heat off) \| <5 W heat on)
	operating temperature	-30°C~70°C
	storage temperature	-40°C~80°C
	size(mm)	424270
	packaging	sealed case IP67
Operating Range	detection range	<1350m(human)
		<1720m(Vehicle)
	Read Range	<340m(human)
		<430m(Vehicle)
	AI Algorithm Controller	＞110m(human)
		＞250m(Vehicle)
	remark：human(1.80.5m),Vehicle(2.32.3m)
Authentication	CE、FCC、EMC、ROSH、INSPECTION REPORT

DTC-640 Driving Assistant Thermal Car Camera

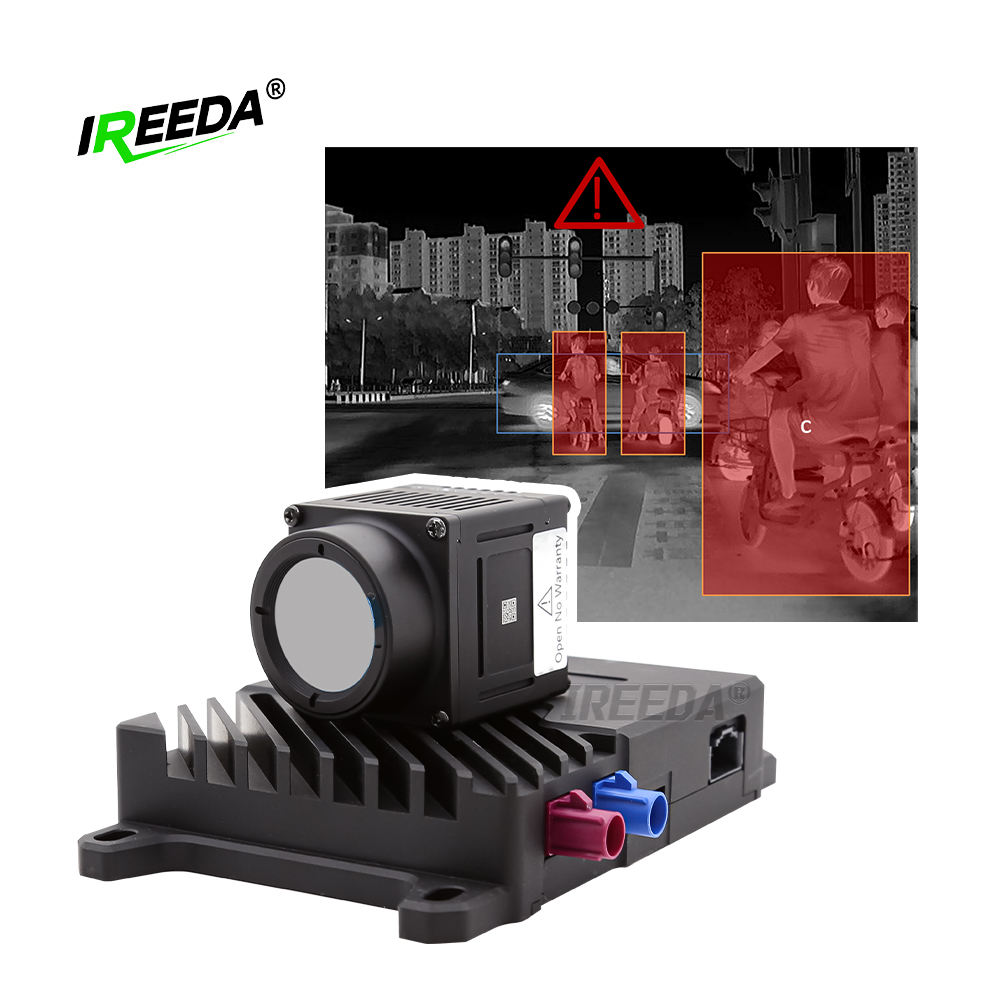

The Driving Assistant Thermal Car Camera enhances vehicle safety by providing crucial thermal imaging capabilities, making it an invaluable tool for drivers seeking improved awareness and safety on the road.

a.Enhanced Night Driving: Provides clear thermal imaging to detect pedestrians, animals, and obstacles in low-light conditions.

b.Real-Time Hazard Alerts: Integrates with advanced driver-assistance systems (ADAS) to offer immediate alerts about potential hazards, improving driver awareness.

c.Support for Autonomous Vehicles: Essential for safe navigation in various lighting environments, helping self-driving technology operate effectively.

d.Emergency Services Aid: Valuable for search and rescue operations, enabling the location of individuals in challenging visibility scenarios.

e.Overall Safety Improvement: Enhances situational awareness, contributing to safer driving experiences in diverse conditions.

Request A quick Quote （WhatsApp/wechat:+86-18291418396）
