DA-PVS31 Night Vision Binoculars

Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com

Overview

IREEDA Helmet Night Vision Binoculars DA-PVS31 has an ergonomic low-profile design and offers superior situational awareness compared to a single tube goggles. Working directly with input from Special Forces operators, the binocular type night vision goggle was designed to increase system resolution, significantly reduce head-borne weight and improve system center of gravity, provide additional operational utility, and improve overall operator situational awareness as compared to currently fielded dual-tube night vision binoculars.

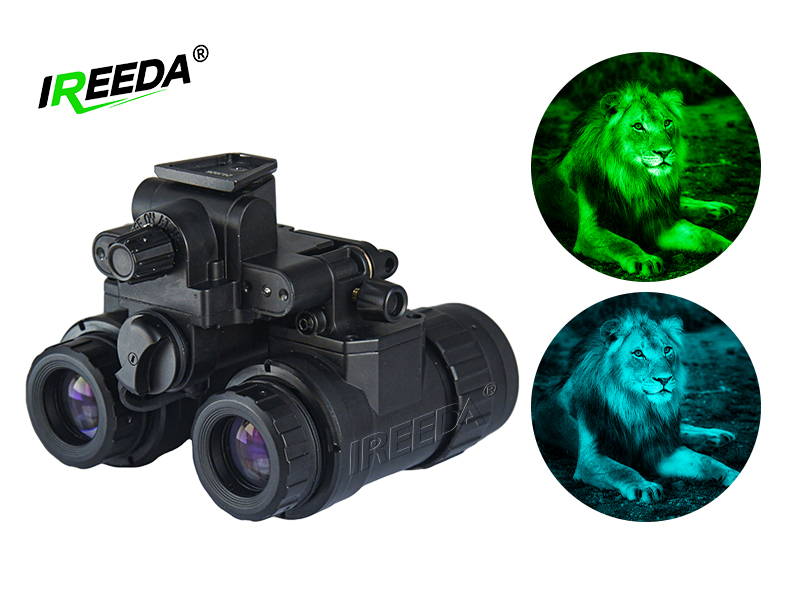

IREEDA PVS 31

Product Feactures

Multipurpose: handheld, helmet support, head support
Protection level reaches IP65 /IP67 (Optional)
Military grade, high performance and high quality
Small in size, and light weight
High definition

Product Specification

Structural Mode	Arbitrary turn it over
Rollover Detection	Automatically detect and power off when turning up
Battery Type	Lithium battery (CR1231) /CR1234 (external battery box)
Power Supply	2.6V - 4.2V
Installation	Head mounted(standard American helmet interface)
Control mode	ON/IR/AUTO
Battery Life	40-100hrs
Photocatode type	18 mm S-25
Resolution	>60lp/mm
SNR	>22
Magnification	1X
FOV	40°±2° (50°±2° )
Parallelism of Optical Axis	<0.1°
Lens System	25 mm, F/1.2
Coating	Multilayer broadband coating
Range of Focus	0.25 m to infinity
Focus Mode	Manual focus facility
Distance of Pupil	30 mm
Eyepiece Aperture	8 mm
Range of Visibility	-4DS~+4DS
Eye Spacing Adjustment	Arbitrary continuous adjustable
Eye Distance Adjustment Range	50-72mm
Eye Distance Locking Method	Manual locking
IR	850 nm, 20 mW
Operating Temperature	-40℃ to +55℃
Humidity	5%-95%
Environment Rating	IP65 / IP67 (Optional)
Dimensions	112* 105* 86 mm
Weight	490 g (Without battery)

Night Vision Binocular PVS 31 Housing

IREEDA PVS-31 housing kit (optics included) is available for wholesale and fits MX-10160 or similar-sized tubes. It's durable, lightweight, and customizable for various applications. Tube specs are shown in the image for reference.

DA-PVS31 Night Vision Binoculars

DA-PVS-31 model offers a 50° FOV, which surpasses the original DA-PVS-31 night vision goggles. It uses two high-performance image intensifier tubes, delivering exceptionally clear and sharp images in even the darkest environments. You can install either Gen 2+ or Gen 3 tubes based on your specific needs.

The video below showcases the night vision performance with a Gen 2+ image intensifier tube. It uses the same size image intensifier tubes as our Ground Panoramic Night Vision Goggles, delivering similar clarity in low-light conditions.

Request A quick Quote （WhatsApp/wechat:+86-18291418396）
