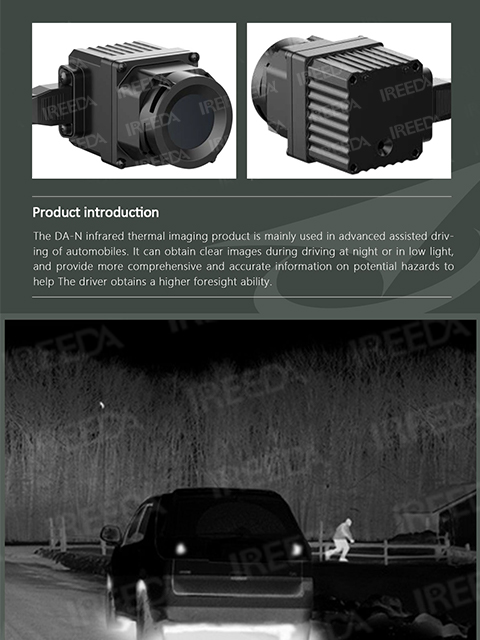

The DA-N 150m-300m Detection Range Driving Assistant Thermal Car Camera is mainly used in advanced assisted driving of auto-mobiles. It can obtain clear images during driving at night or in low light, and provide more com-prehensive and accurate information on potential hazards to help the driver obtains a higher foresight ability.
MAIN FEATURES
1)High-brightness illumination of non-luminous heating objects;
2)Anti-glare function;
3)See clearly in complete darkness, dense fog, bright light or other inclement weather;
4)The longer detection distance can reach more than 300m for vehicles and more than150m for people;
5)IP67 protection level;
| Parameter | |
|
Type
|
Uncooled Vox 384*288px
|
| Image display performance | |
|
Lens System
|
9.7mm/F1.0
|
|
FOV
|
37.0°x 28.0°(PAL), 35°x24°(NTSC)
|
|
Spatial Resolution
|
1.75mrad
|
|
Video Output Interface
|
RAC lotus male head
|
|
Video Output Format
|
Analog Video CVBS
|
|
Output Image Frame Rate and Resolution
|
25Hz、768×576@PAL or 30Hz、720×480@NTSC
|
| System | |
|
Start Time
|
≤8S(Normal temp.)
|
|
Shutter Control
|
Auto
|
|
Automatic Heater
|
When the window temperature is lower than 2℃±2℃, it will
automatically start the intelligent heating.
|
|
Shutter
|
When the window temperature is higher than 7℃±2℃, it will
Auto Shutter Compensation
|
|
Image Algorithms
|
Auto Brightness Contrast
|
|
Image enhancement
|
|
| Power characteristics | |
|
Rated Voltage
|
DC 9V～32V (typical value 12V or 24V)
|
|
Machine Power Consumption
|
≤3.5W (12V or 24V power supply, do not start window heating)
|
|
≤9W (12V or 24V power supply, start window heating)
|
|
| Environmental parameters | |
|
Operation Temperature
|
-40℃～+85℃ (power on state)
|
|
Storage Temperature
|
-45℃～+90℃ (power off state) (perform according to national standard)
|
|
IP Level
|
IP67(sealed housing)
|
| Physical properties | |
| Size |
40*36*58mm(Cable not included)
|
|
Weight
|
200g
|
