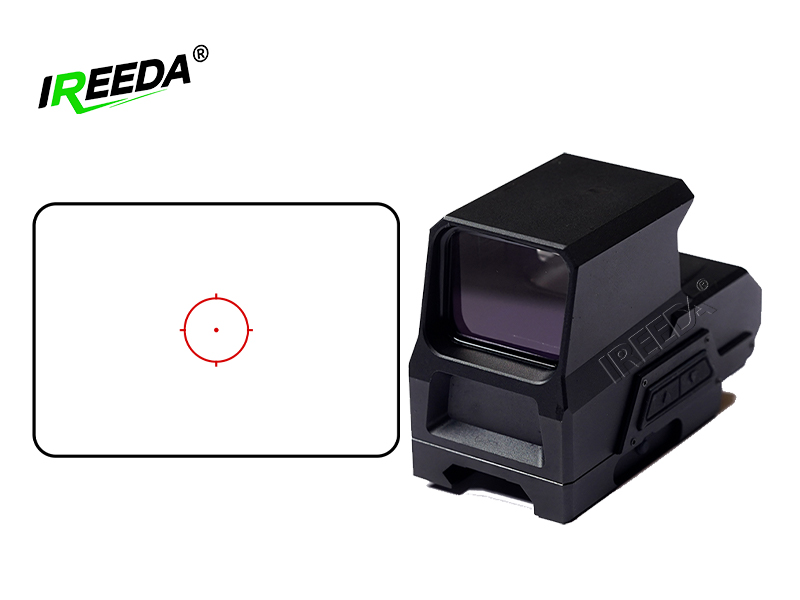

The DA-HS01 Laser Holographic Sight uses laser light to form a holographic image in a glass optical viewing window , and allows the user to look through the viewing window and see a reticle image superimposed at a distance on the field of view.The user can aim and lock the target through the holographic ring image of the viewing window. This durable high quality sight is engineered to give you the advantage of a clear reticle in a compact light-weight,waterproof and shockproof design, whether you use it for rapid fire shooing of moving targets, or normal shooting.
|
Features |
|
|
Light weight ,Small size |
less than210g,80×50×60mm |
|
Reticles |
faster target acquisition andfor any firearms platform |
|
Field-Of-View |
Aiding in improved situational awareness |
|
Magnification |
Simply switch the magnifiers out of the way for quick 1X targeting |
|
Aim at the spot |
Behind of viewing window |
|
Rail Mount |
Picatinny rail |
|
Main Technical Parameter |
||
|
NO. |
Model |
DA-HS01 |
|
1 |
Magnification |
1X |
|
2 |
Display window |
30mm×23mm |
|
3 |
Exit pupil distance |
Infinite |
|
4 |
Reticle adjustment range |
≥±40MOA |
|
5 |
Click value |
0.5MOA |
|
6 |
Division size |
2MOA points 68MOA ring |
|
7 |
Brightness level |
Level 9 daytime/3 level NV |
|
8 |
Battery |
CR123/CR123A |
|
9 |
Continuous working time |
2000hours（Medium brightness） |
|
10 |
Automatic shut-down |
4hours |
|
11 |
Low battery indication |
Aiming ring flashes |
|
12 |
Weight |
210g |
|
13 |
IP Level |
underwater10m |
|
14 |
Interface form |
Picatinny rail |
|
15 |
Dimension |
80×50×60mm |
