DA-900 Multifunctional Military Handheld Portable uncooled Thermal Imaging Night Vision Surveillance Cameras Day Night Laser Rangefinder Long Distance Binoculars is one type military multi-purpose handheld thermal binocular, which integrates thermal imager, visible light, laser range finder, GPS, WIFI into one integrated system. It can effectively meet both day and night observations and help you to achieve your goals.It is mainly developed for military use. These compact, powerful Military Long Range Infrared Night Vision Binoculars are universally suited for all military services and tactical units. It's the perfect combination of 3 kinds of imagers. so it can significantly reduce the total weight of the device and improve the ability of reaction time. The system has excellent waterproof and dust-proof performance, compact structure, lightweight, durability, shock, and interference, can be used in all weather conditions.
DA-900 Multifunctional Thermal imaging Binoculars is an integrated design, easy to carry, multifunctional solar-viewing uncooled thermal imaging infrared binoculars. Whether it is 12x eyepiece magnification or 1-8x electronic magnification, Can easily capture the target, allowing users to see more clearly.Has a long-distance identification detection function, which enables users to respond quickly. The uses strong aluminum alloy and reinforced PC material, making the product safer and more durable.Features multi-color imaging, and powerful storage capabilities that allow you to capture and store your favorite photos and videos.
| Product | DA-730 | DA-900 |
| Multi-Function Thermal Binocular | ||
| Detector | Uncooled FPA Detector | |
| Spectral Range | 8~12μm | |
| Resolution | 384*288p×@17μm | 640*512p×@12um |
| Frame Rate | 50HZ | |
| NETD | <50mk(@300K) | <50mk(@300K) |
| Focal Length | 75 mm (F#1.0) | 85mm (F#1.0) |
| Focus | Motor Focusing | |
| Feild of View | 5.0x3.79 | 5.2x4.10 |
| Start Up Time | 10s | |
| E-Zoom | 1~4X | |

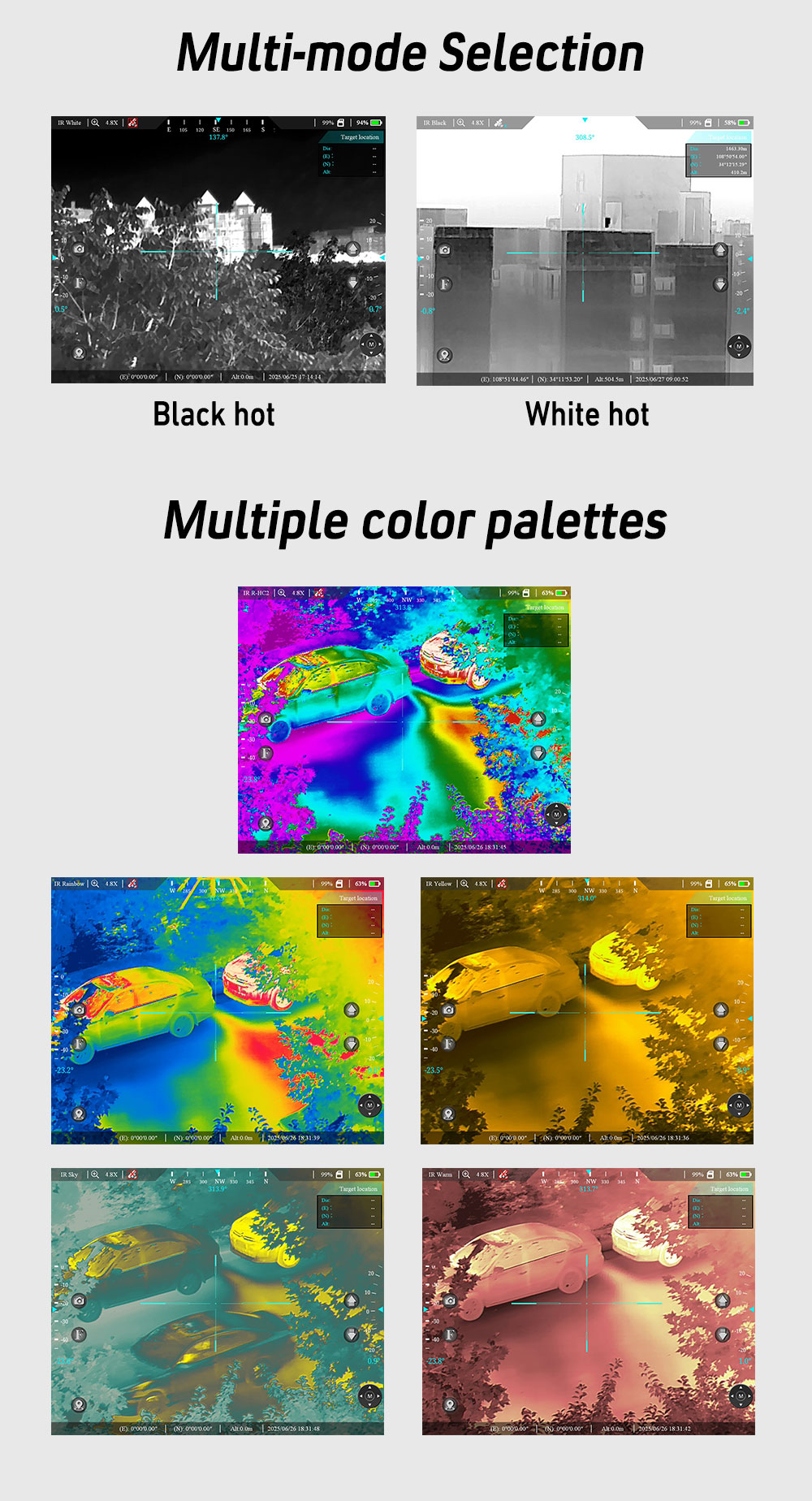

| Pole | White-hot/Black-hot/Eight Pseudo-color | |
| Contrast/Brightness Auto/Manual | ||
| Visible Light ParametersSensor | ||
| Sensor | 1/1.8' Low Illumination CMOS | Ultra-Low Light CMOS |
| Resolution | 1280x720px | 1280×960px |
| Focal Length | F=35 mm | |
| E-Zoom | 1~4x | |
| Specialty | D-WDR. 3D denoise. Automatic Shutter | |
| Eyepiece System | ||
| Micro Display | 2x(1024x768)0.5'OLED | |
| Magnification | 12x | |
| Range Finder | ||
| Wave Length | 905nm (Eye Safety) | 1.54μm (Eye Safety) |
| Measure Distance | 20~3000m | 50~5000m/50m~12000m(optional) |
| Accuracy | <+1 m | <+1m |
| Accuracy Rating | >95% | >98% |
| GPS/BDII | ||
| Accuracy | CEP<2.5m | CEP<5m |
| DMC | 3D Azimuth Accuracy<0.8°(RMS) | 3D Azimuth Accuracy <0.5°(RMS) |
| Environments | ||
| Proect Standard | IP66 | |
| Operating Temperature | -30C~+50℃ | -30C~+55℃ |
| Storage Temperature | -40C~+60℃ | -40℃~+70℃ |
| Humidity | 5%~95%(Non-Condensing) | |
| Observation Distance | ||
| Human (1.8*0.5 m) | Detection: 3500m Recognition: 1000 m | Detection: 4500m Recognition:1300m |
| Vehicle (2.3*2.3 m) | Detection: 6500m Recognition: 2000 m | Detection:7500 m Recognition: 3000 m |
| Physical ParametersNet Weight | ||
| Net Weight | <2.0 Kg (Include Battery) | |
| Dimension (mm) | 255*230*95(L*W*H) | |
| Housing | Aluminum Alloy + Enhanced PC | Magnesium alloy/Poly-carbon/Rubber |
| Mount Adaptor | 1/4' Standard Tripod Mounting | |
