Overview

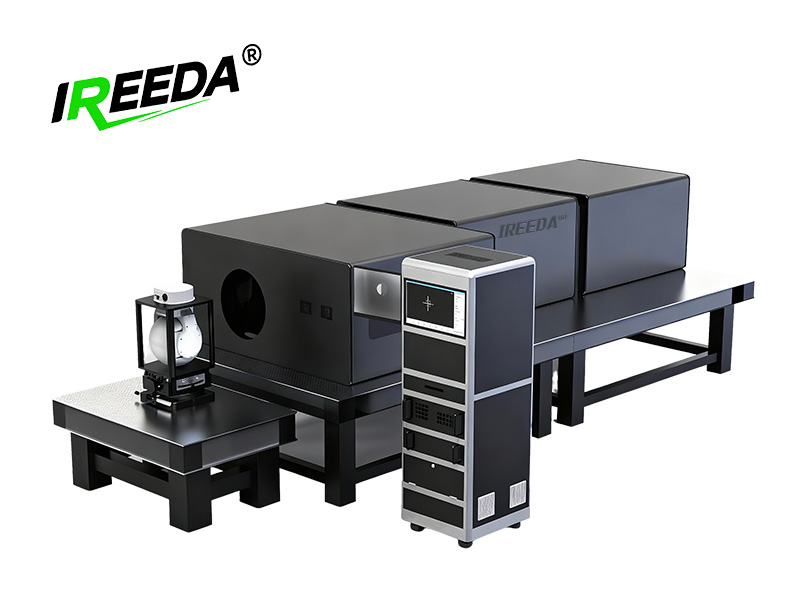

IREEDA Comprehensive optical performance testing system for photoelectric pods, is a high-precision, automated comprehensive testing platform for optoelectronic pods. The system integrates visible light, infrared, and laser multispectral testing capabilities, supporting multi-axis parallelism calibration, performance verification, and parameter calibration of the three core components of the pod (visible light, infrared thermal imaging, and laser ranging emission). It meets GJB/JB standard requirements and is suitable for large-scale comprehensive testing systems used in R&D verification, production assembly and adjustment, factory quality inspection, and equipment maintenance.

DA Pod-ETS

Product selection and configuration

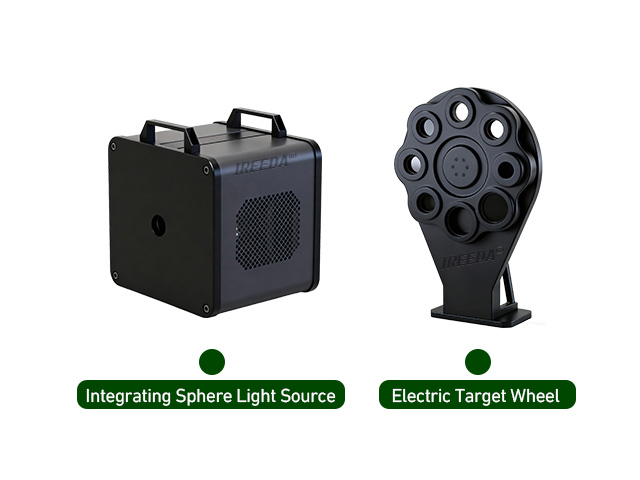

Integrating sphere light source
Sphere diameter	Φ200
Output light diameter	Φ50
Uniformity of light spot at the output port	≥99%
Output light intensity level adjustable	0-1000Lx
Spectral coverage range	380-2500nm
Internal coating of the sphere	PTFE / High-quality barium sulfate
Light source interface	Customizable

Electric target wheel and target
Target position	12
Control method	Digital electric
Position repeatability accuracy	No more than 0.01°
Infrared targets	Four-bar target, knife-edge target.....
Visible light targets	MRC resolution target, cross target, circular hole target

Beam Quality Analyzer
Resolution	2048*2048
Pixel Size	Pixel size 5.5μm * 5.5μm
Target Size	1 inch
Data Interface	USB 3.0
Applicable Wavelength	905nm-1550nm

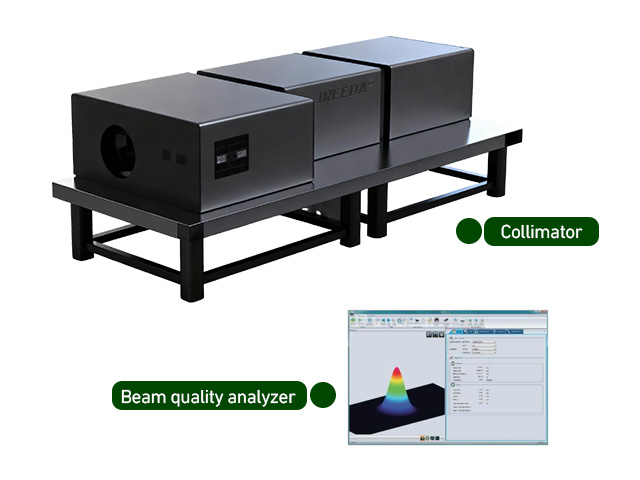

Collimator
Parameters	ZYP-5050L
Focal Length	5000mm
caliber	500mm
FOV	≥0.32°
Optical System Type	Off-axis Newtonian reflective
Coating	Metal aluminum film + protective film
Applicable Spectral Range	0.4-14μm
System wavefront aberration	RMS better than1/15λ@632.8

---
