Overview
IREEDA Industrial CO2 Scanning Galvanometers are engineered for high-speed and ultra-precision laser material processing. Specifically optimized for 10.6 μm CO2 laser wavelengths, these systems feature lightweight, high-reflectivity mirrors and advanced digital servo drivers.
Designed for 24/7 industrial operation, our galvo heads provide exceptional stability, low thermal drift, and rapid response times, making them the ideal choice for high-speed marking on non-metallic materials like wood, acrylic, leather, and fabric.
Highlights
- Superior Scanning Speed: Achieves marking speeds up to 7,000 mm/s - 12,000 mm/s (depending on model) with exceptional accuracy and repeatability.

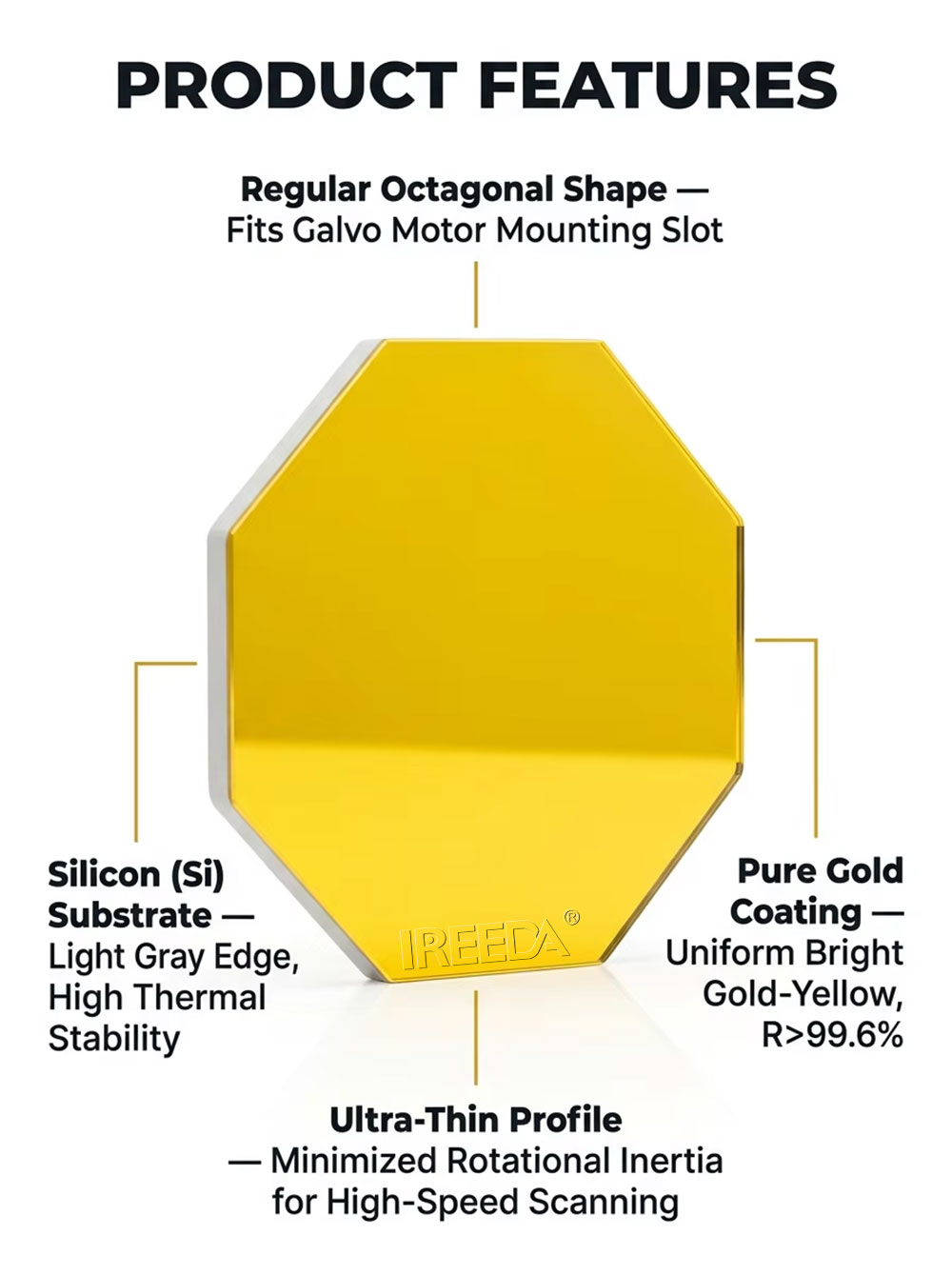

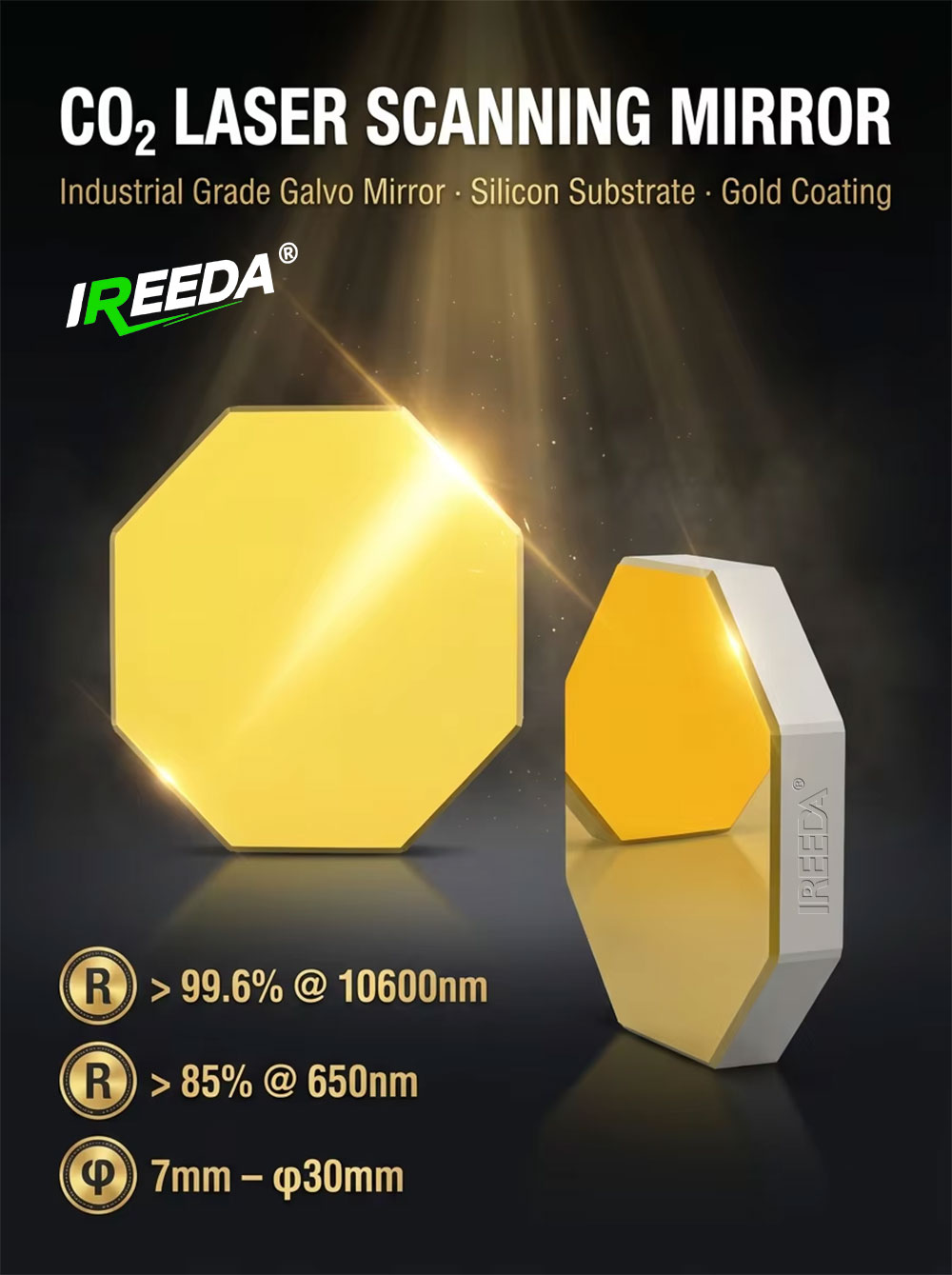

- Optimized 10.6 μm Optics: Equipped with high-damage-threshold Silicon-based Gold-coated mirrors (reflectivity>99.5%), ensuring maximum energy delivery for heavy-duty cutting and engraving.
- High Precision & Low Drift: Advanced digital drive circuitry minimizes thermal drift during long-term operation, ensuring consistent marking quality from the first piece to the last.
- Compact & Robust Design: The sealed aluminum housing protects internal optics and electronics from dust and smoke, extending the maintenance cycle in harsh factory environments.
- Plug-and-Play Compatibility: Standard XY2-100 protocol support. Easily integrates with mainstream laser control boards (e.g., EzCad, BJJCZ).
Application
Specification
| Parameter | Specification Details |
| Wavelength | 10.6μm (CO2 Laser) |
| Input Aperure | 10mm /12mm / 14mm / 16mm /18mm |
| Mirror Substrate | Silicon |
| Coating | High-power dielectric |
| Tracking Error | ≤0.15ms |
| Marking Speed | 8000mm/s |
| Step Response Time | ≤0.3ms |
| Interface Protocol | Digital XY2-100 |
| Operating Temperture | 25℃ ±10℃ |
FAQ
Q: Which aperture size should I choose for my CO2 laser?
A: This depends on your laser beam diameter. For standard 30W-60W lasers, a 10mm aperture is common. For 100W+ or high-power beams, a 12mm or 14mm aperture is recommended to prevent the beam from clipping and causing heat buildup in the galvo head.
Q: What is the difference between Silicon (Si) and Molybdenum (Mo) mirrors?
A: Silicon mirrors are lighter and ideal for high-speed marking. Molybdenum mirrors are tougher and more resistant to surface scratches, making them suitable for harsh environments, though they are slightly heavier.
Q: Does the system include the drive boards?
A: Yes, our "Galvo System" includes two galvanometer motors (X/Y), two mirror sets, two servo drive boards, and the power supply/cabling as a complete kit.
