Product Introduction

IREEDA SMQ-6 is mainly used to inspect the optical axis non-parallelism and magnification difference of binocular telescopic systems. It is widely applied in special instruments for optical testing, and serves as one of the important tools in the production, assembly and adjustment of optical instruments.

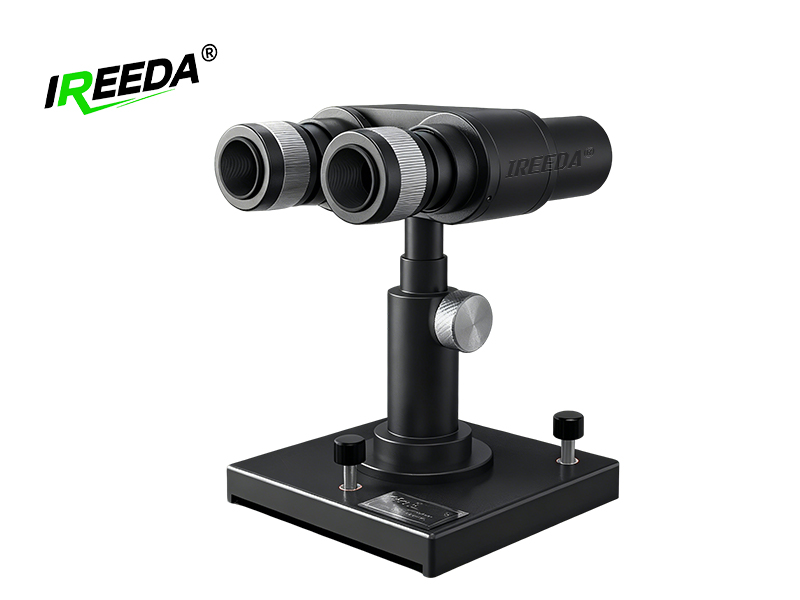

IREEDA SMQ-6

SMQ-6 Binocular Foremounted Lens

External dimensions

Product Specification

Objective Focal Length	120mm
Exit Pupil Diameter	5mm
Field of View (FOV)	≥8°
Eyepiece Diopter Adjustment Range	±5 Diopters
Measurement Range	V, H both ±2°
Weight	3.5KG
Angular Magnification	6×
Eye Relief	17.5mm
Resolution	≤5″
Effective Aperture	Φ30mm
Reticle Graduation Value	10′
